Insignia NS-HZ308 Quick Setup Manual

Thank you for purchasing this high-quality Insignia
RF Modulator. This product is designed to connect AV
components with no RF (coaxial) output, such as
Blu-ray/DVD players, gaming systems, etc., to an
older TV that has only an RF input.

Package contents

• RF Modulator
• Power adapter
• Quick Setup Guide
Required parts
The following items (not supplied) are required:
• One composite AV cable with three RCA
connectors (yellow, red, and white) at each end.
• One 75-ohm coaxial cable

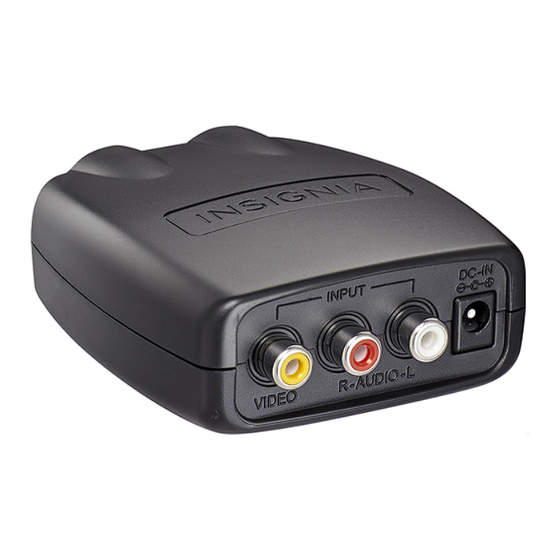

Features
VIDEO IN
DC IN
AUDIO IN
Before using your new product, please read these instructions to prevent any damage.
RF Modulator AV Signal Converter | NS-HZ308 / NS-HZ308-C
ANT IN
TO TV
CH 3/4
Connecting your RF Modulator
1 Connect a composite AV cable (not included) from
the AV output jacks (yellow for video; red and white
for stereo audio) of the source component
(Blu-ray/DVD player, gaming system, etc.) to the
corresponding color-coded input jacks on the
RF Modulator.
Note: For mono AV components, use only the yellow and
white connectors of the composite AV cable.
2 Connect the coaxial cable to the TV using one of the
following methods that matches your setup:
• If you have an RF TV source, such as a cable/satellite
box or TV antenna, connected to the TV, disconnect
that component from the TV and connect the coaxial
cable to the ANT IN jack on the RF Modulator.
Connect a separate coaxial cable from the TO TV
jack on the RF Modulator to the RF input jack on the TV.
• If you do not have an RF TV source, connect a
coaxial cable from the TO TV jack on the
RF Modulator to the RF input jack on the TV.
Note: If your TV has only 300-ohm VHF screw terminals,
use a 75-ohm-to-300-ohm matching transformer to
complete the connection.
Quick Setup Guide
