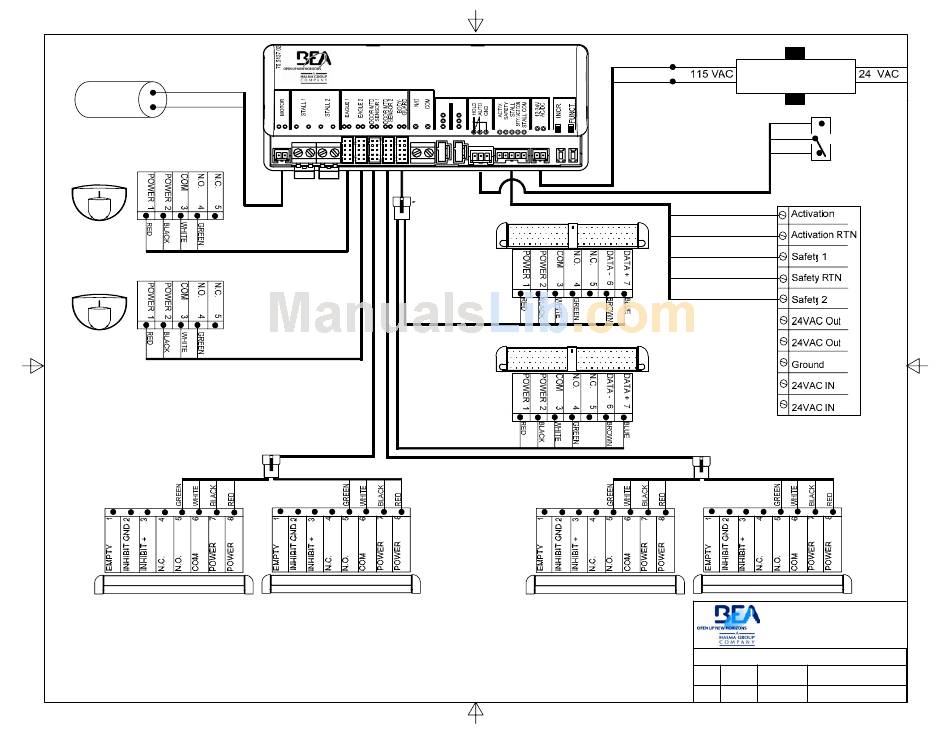

BEA Hunter LO-LINX Wiring Diagram

+
RED
MOTOR
-
RED
EAGLE 1
EAGLE 2
ACTIVATION SUPERSCAN
NOTES: 1) BEA RECOMMENDS TO USE THE HUNTER SYNC BOARD TO SYNC 2 DOOR CONTROLS WITH A PAIR OF DOORS.
2) IF USING AN OPTIONAL INHIBIT SWITCH FOR THE SAFETY SIDE SUPERSCAN. ROUTE THE INHIBIT SWITCH N.C. CONTACT TO STALL 1 &/OR 2.
IF AFTER TROUBLESHOOTING A PROBLEM, A SATISFACTORY SOLUTION CANNOT BE ACHIEVED, PLEASE CALL B.E.A., INC.
FOR FURTHER ASSISTANCE DURING EASTERN STANDARD TIME AT 1-800-523-2462 FROM 8AM - 5PM. FOR AFTER-HOURS,
CALL EAST COAST: 1-866-836-1863 OR 1-800-407-4545 / MID-WEST: 1-888-308-8843 / WEST COAST: 1-888-419-2564. DO NOT
LEAVE ANY PROBLEM UNRESOLVED. IF YOU MUST WAIT FOR THE FOLLOWING WORKDAY TO CALL B.E.A., LEAVE THE
DOOR INOPERABLE UNTIL SATISFACTORY REPAIRS CAN BE MADE. NEVER SACRIFICE THE SAFE OPERATION OF THE
AUTOMATIC DOOR OR GATE FOR AN INCOMPLETE SOLUTION.WEB: WWW.BEASENSORS.COM
LO-LINX
MTR STALL SENSORS AUX
BEAM
TX
BODYGUARD (Y) HARNESS
USED FOR DUAL-EGRESS
APPLICATIONS
SAFETY SUPERSCAN
BLACK
RED
SWITCH TO CTRL PWR SETUP
RX
BODYGUARD
BODYGUARD 2
ACTIVATION SUPERSCAN
24 V
TRANSFORMER
AUTO
RED
Pre-wired
BLACK switch
OFF
assembly
WHITE
HOLD OPEN
GREEN
WHITE
YELLOW
BROWN
BLUE
SAFETY SUPERSCAN
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE: (412) 249-4100
FAX: (412) 249-4101
EMAIL: www.beasensors.com
TITLE: Hunter FA Control,LO-LINX
PART NO:
DRAWN BY: REV BY:
SIZE: 80.0272.01
JED TUC
SCALE: DATE: SHEET
A
NONE 05/17/2007 1 OF 1
