Omneon MediaGrid ContentServer 2124A Quick Reference Manual page 2

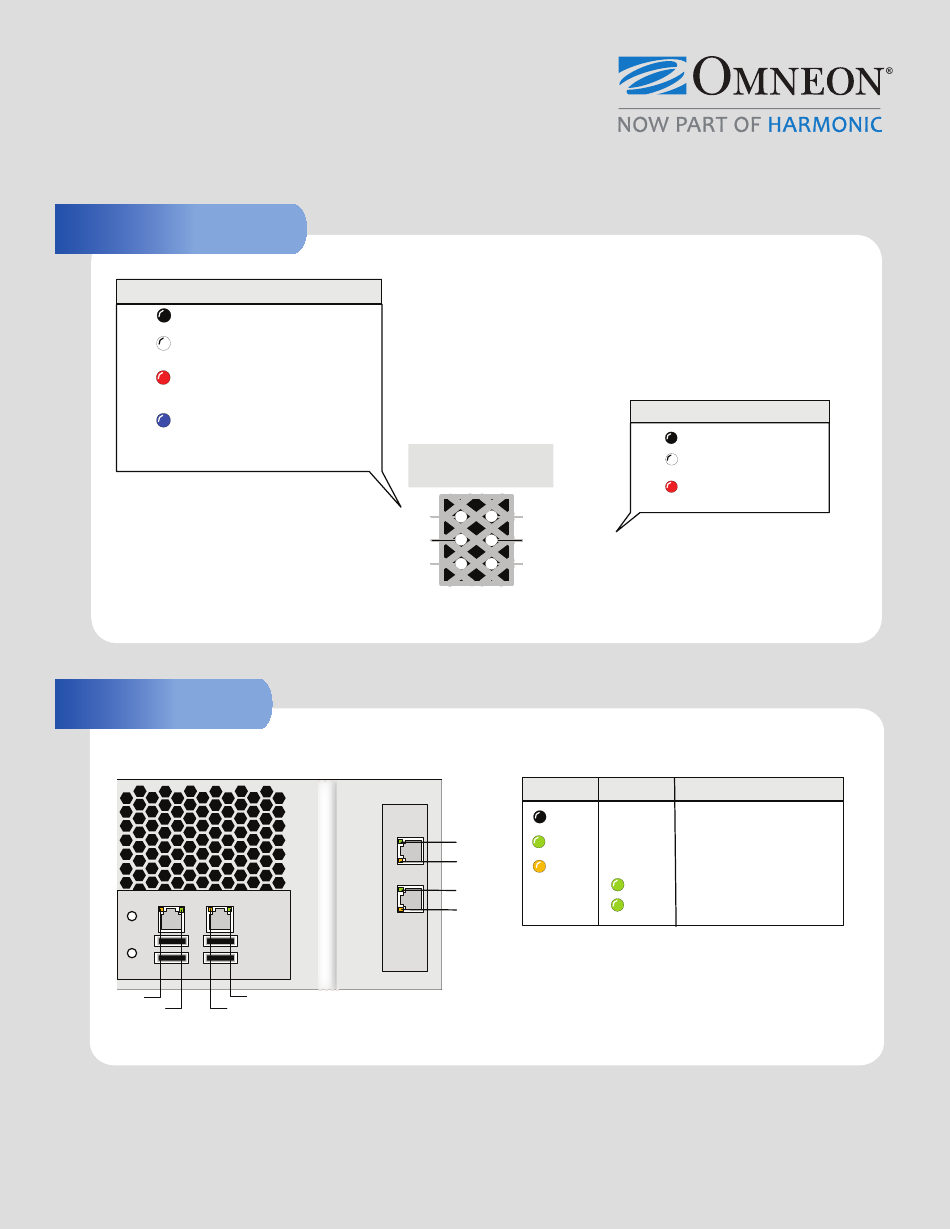

Front Panel LEDs
For the indicated Ethernet Ports
Off
(solid) Online
White
(blink) Active network port
Ethernet interface offline (may be no connection;
Red
network may be down; connector may need
replacing ; one or both ports may have failed ).
(blink) Configuration file can't be downloaded
Blue
from ContentDirector (may be unable to
contact ContentDirector , No IP address for
ContentDirector, or can't find the tftp server on
the ContentDirector).
Back Port LEDs
Activity
Link
Activity
Link
NIC 0
NIC 1
Omneon Technical Support: +1 888 673-4896 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 555 450 (EMEA),
+7 495 506 5981 (Russia and CIS), +81 3 5565 6737 (Japan), +86 10 8391 3313 (China, mainland)
ContentServer 2124A
Status LEDs
Ethernet Port 0, 2
Column 1: Disks 1, 5, 9
Column 3: Disks 3, 7, 11
NIC 2
Activity
Link
Activity
Link
NIC 3
For the indicated Disk Drives
Off
White (solid) Normal state; disk online
(blink) Read/write activity
Red Disk offline, may be unmounted or
inactive; drive failure
Ethernet Port 1, 3
Column 2: Disks 2, 6, 10
Column 4: Disks 4, 8, 12
Activity Status
Link
Off
Green
NIC connected at 100 Mbps
NIC connected at 1000 mbps
Amber
Green Active connection
(
Blinking) Transmit/receive activity
Green
28-0364 Rev. A
