Omneon MediaGrid ContentServer 1042C-DP Quick Reference Manual page 2

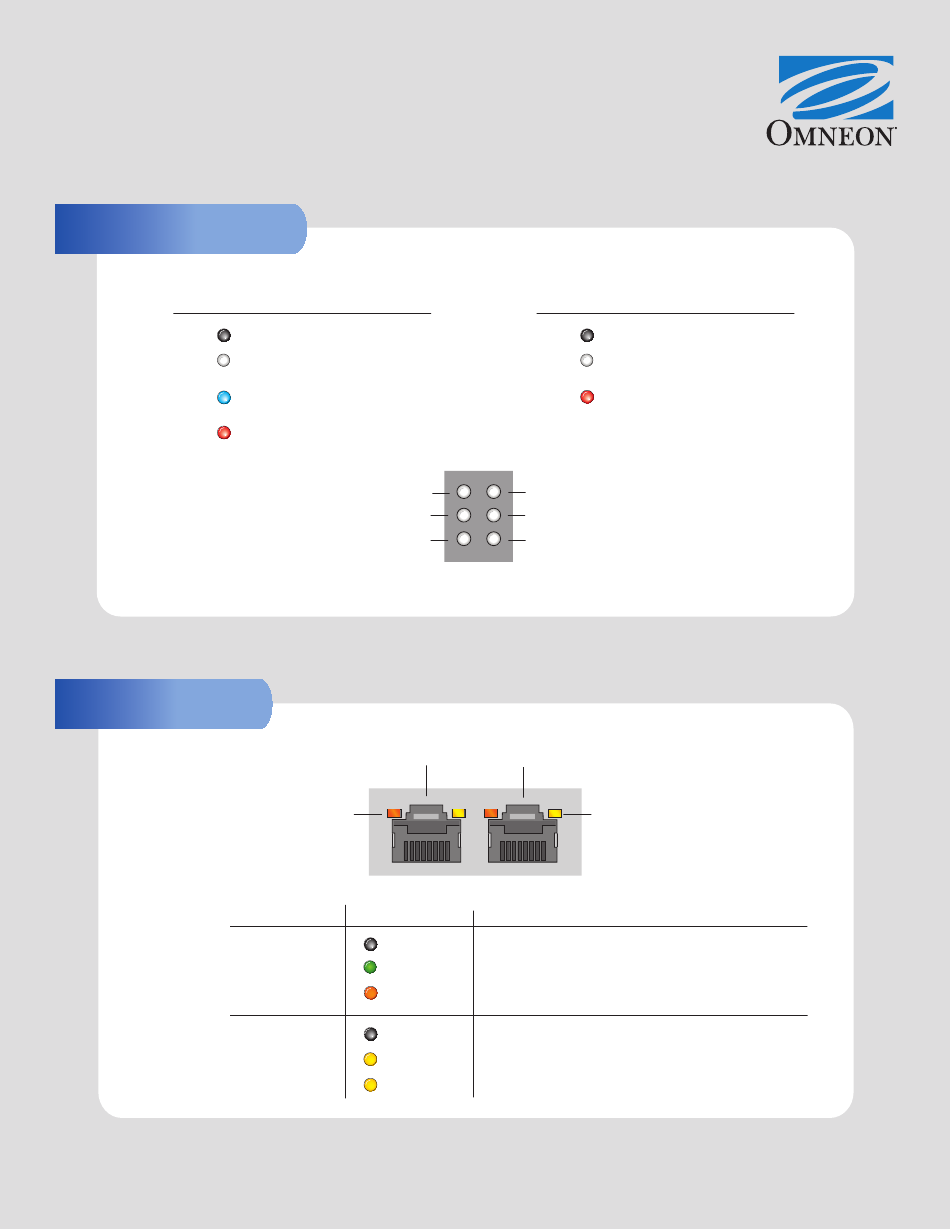

Front Panel LEDs
For the indicated Ethernet port
Off Power off
(Solid) Online
White
(Blink) Active network port
(Blink) ContentServer cannot download its
Blue
configuration file from ContentDirector
Ethernet link problem
Red
Ethernet Port LEDs
LED
Link (Left)
Activity (Right)
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
Ethernet Port 0
Disk 1
Disk 2
Port 0
Link
indicator
LED State NIC State
Power off, network cables unplugged
Off
Green (solid) Power off, network cables plugged in; active connection at 100 Mb/s
Power on, network cables pugged in; active connection at 1 Gb/s
Amber (solid)
Off
Power off, network cables unplugged
Yellow (solid)
Power on, active connection
Yellow (blink) Power on, network data being sent or received
For the indicated disk drives
Off Power off
(Solid) Normal state; disk online
White
(Blink) Read/write activity
Disk offline, may be unmounted or inactive;
Red
drive failure
Ethernet Port 1
Disk 3
Disk 4
Port 1
Activity
indicator
28-0255 Rev. C
