ReelCraft L CA37122 L Operating Instructions

ReelCraft L CA37122 L Operating Instructions

Series 37000 hose reels

Advertisement

Quick Links

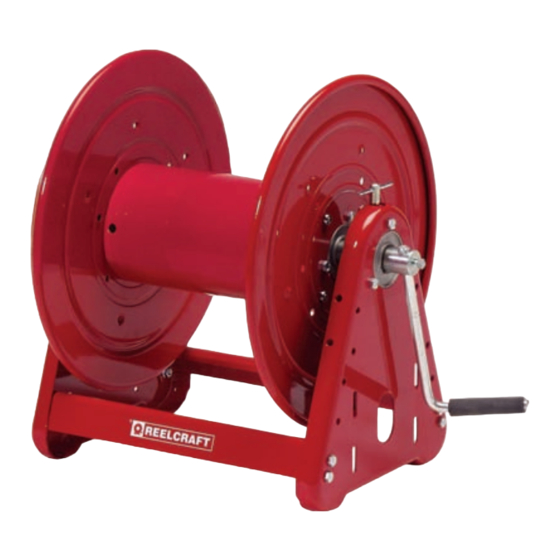

Series 37000 Hose Reels
CA37118 L
CA37122 L
EA37118 L12D
EA37122 L12D

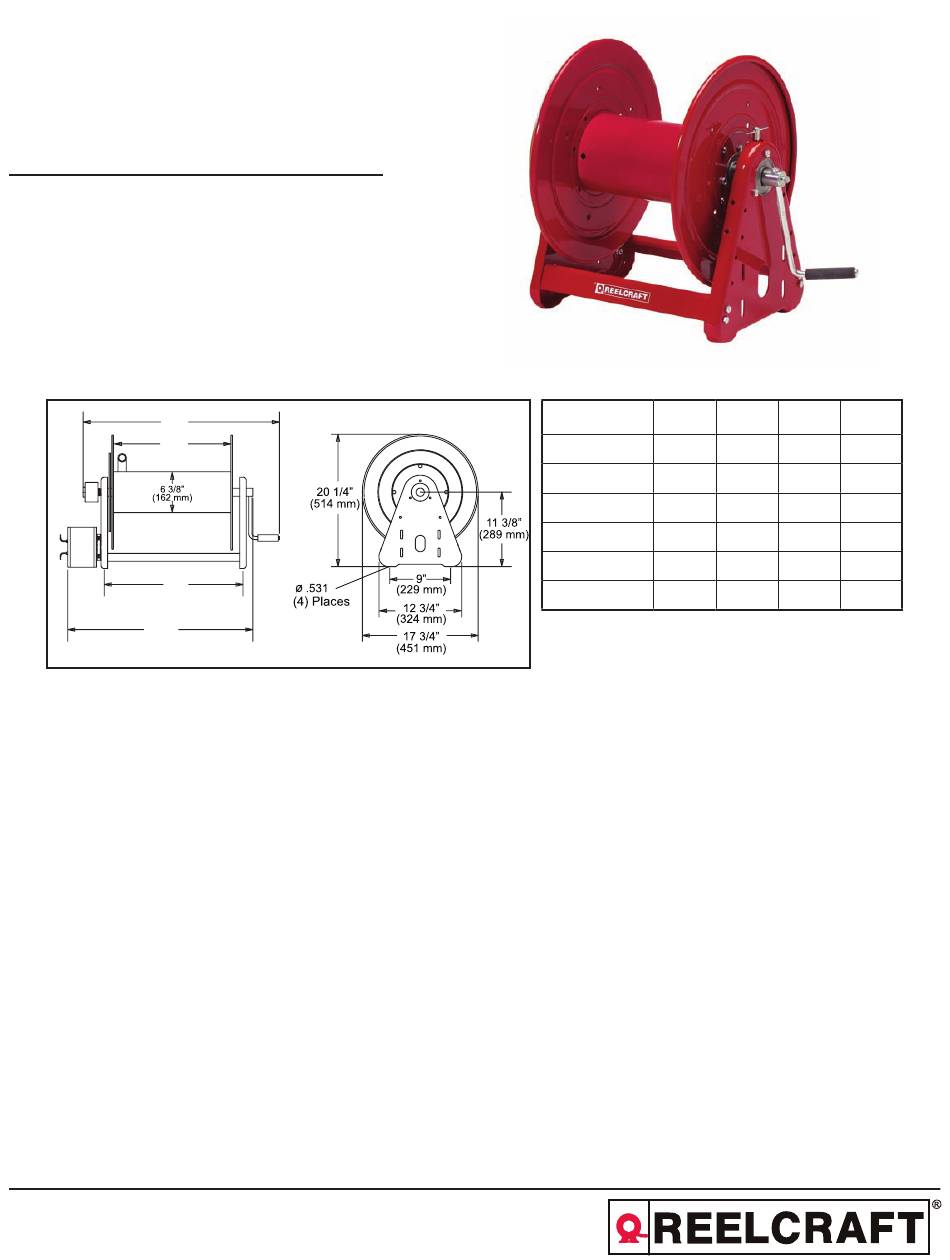

Dimensional Data

A
B
D
C

Safety Precautions

Personal injury and/or equipment
damage may result if proper safety
precautions are not observed.
• Ensure that the reel has been properly
installed before connecting supply line
(see installation instructions).
• Bleed fluid/gas pressure from system
before servicing reel.
• Before connecting reel to supply line
ensure that supply line pressure does
not exceed maximum rated working
pressure of reel.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
CA37128 L
EA37128 L12D
• Do not play pranks on other personnel.
Even low pressure is very dangerous
and can cause irrepairable damage or
death.
• Do not wear loose fitting clothing while
operating reel.
• Be aware of other personnel in work
area.
• Be aware of other machinery in work
area.
Part #
A
CA37118 L
31 3/4"
EA37118 L12D
-----
CA37122 L
35"
EA37122 L12D
-----
CA37128 L
40"
EA37128 L12D
-----
• If a leak occurs in the hose or reel,
remove supply line pressure
immediately.
• If the reel is power driven check for
loose, frayed, and/or broken wires before
operating.
• Treat and respect a hose reel as any
other piece of machinery, observing all
common safety practices.
B
C
D
18"
-----
21 3/4"
18"
31 1/4"
21 3/4"
22"
-----
25 3/4"
22"
35 1/4"
25 3/4"
27"
-----
30 3/4"
27"
40 1/4"
30 3/4"
Form# 1109-1101 Rev: 10/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L CA37122 L and is the answer not in the manual?

Questions and answers

Summary of Contents for ReelCraft L CA37122 L

  • Page 1 Form# 1109-1101 Rev: 10/2016 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
  • Page 2 This prevents flattening of the hose and excessive pressure on the drum when fluid supply is reinitialized at a later time. 1. Apply thread compound to all threads. 2. Hand thread male hose connector into connecting tube assembly. Page 2 www.reelcraft.com...
  • Page 3 1. Loosen (do not remove) bolts securing motor mounting bracket in place. 2. Remove chain master-link. 3. Remove chain master-link. Install new chain by reversing steps 1 and 2 above. www.reelcraft.com Page 3...
  • Page 4 Series 37000 Hose Reels Figure 1 Figure 2 Page 4 www.reelcraft.com...
  • Page 5 S260410 ---------- S260410 ---------- S260410 35 Screw, 10-32 x 1 1/8” ---------- S27-112 ---------- S27-112 ---------- S27-112 36 Chain, drive #35 ---------- S260406 ---------- S260406 ---------- S260406 37 Lock nut 5/16-18 ---------- S85-7 ---------- S85-7 ---------- S85-7 www.reelcraft.com Page 5...

This manual is also suitable for:

Ca37128 lCa37118Ea37128 l12dEa37118 l12dEa37122 l12d
