ReelCraft TH86050 OMP Operating Instructions Manual

Operating Instructions

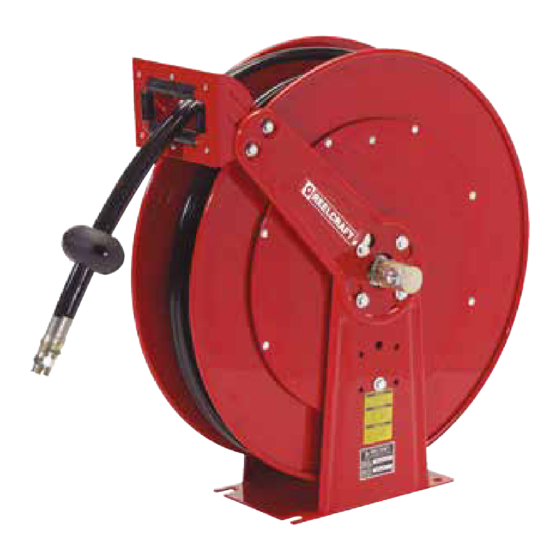

Series TH80000 Spring Driven Hose Reels
TH86050 OMP TH86000 OMP
TH88050 OMP TH88000 OMP
Dimensions
B
C
D
SAFETY
Personal injury and/or equipment damage may result if proper
safety precautions are not observed.
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
A 25 3/8"
B 24"
A
C 10"
D 6"
E 12 7/8"
F E
F 8 1/8"
Figure A
IMPORTANT
Read this manual carefully before installing, operating or
servicing this equipment.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
• A high tension spring assembly is contained within the reel.
Exercise extreme caution.
• Pull hose from reel by grasping the hose itself, not the control
valve.
• If reel ceases to unwind or rewind, remove system pressure
immediately. Do not pull or jerk on hose!
• Treat and respect the hose reel as any other piece of machinery,
observing all common safety practices.
Form# 964-998 Rev: 8/2018
