ReelCraft H16000 Operating Instructions Manual

Operating Instructions

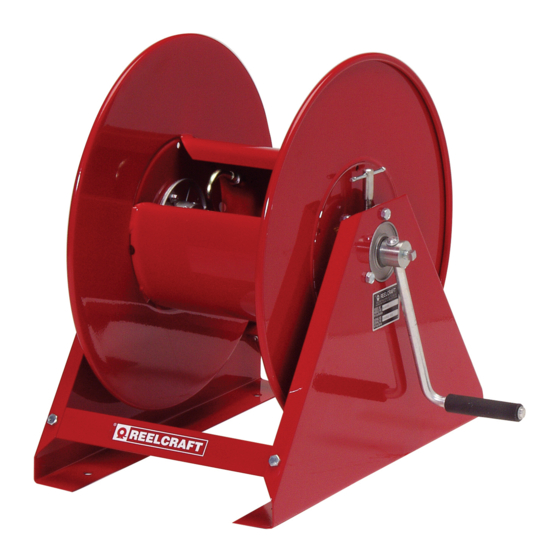

Series H Hand Crank Hose Reels
Low, Medium and High Pressure Model Numbers:
H16000 H28000
H18000 H28005
H18005 H29000
H19000 H29005
H26000 H16000 M
IMPORTANT
Read this manual carefully before installing, operating
or servicing this equipment.
H16000 (M/H) H26000 (M/H)
H18000 (M) H28000 (M/H)
H19000 (M) H29000 (M)
A 19"
B 20"
C 15"
D 10"
E 12 1/2" 18 1/2"
F 5 3/4"
G 17 3/4" 17 3/4"
SAFETY
Personal injury and/or equipment damage may result if proper safety precautions are not observed.
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
H18000 M H28000 M
H18005 M H29000 M
H18006 M H16000 H
H19000 M H26000 H
H26000 M H28000 H
H28005 H29005 H18005 (M) H18006 M
19" 20 1/8" 18 7/8"
20" 14" 14"
15" 10" 10"
16" 16" 16"
18 1/2" 18 1/2"
5 3/4" 5 3/4" 5 3/4"
17 3/4" 15 3/16"
Dimensions
20 1/8" 20 1/8"
14" 14"
10" 10"
10" 6 3/8"
12 1/2" 8"
5 3/4" 5 3/4"
17 3/4" 17 3/4"
• A high tension spring assembly is contained within the reel.
Exercise extreme caution.
• Pull hose from reel by grasping the hose itself, not the control
valve.
• Ensure that reel, hose, and equipment being serviced are
properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
immediately. Do not pull or jerk on hose!
• Treat and respect the hose reel as any other piece of machinery,
observing all common safety practices.
G
C
A
B
F
E
D
Form# 830-696 Rev: 8/2018
