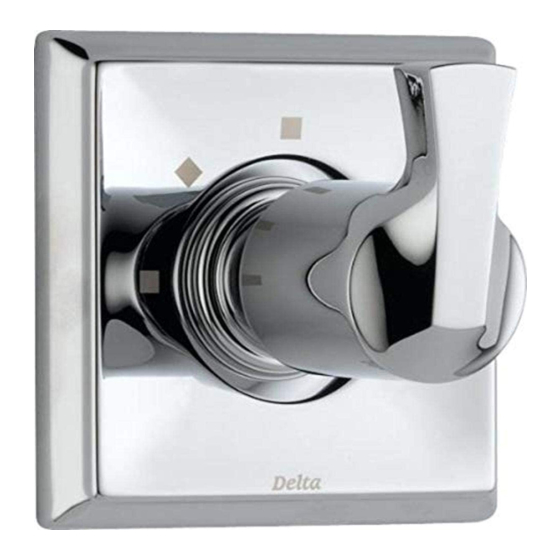

Delta T11800 Manual

Delta T11800 Manual

3-port,three and six function diverter trim
Hide thumbs Also See for T11800:

Advertisement

Quick Links

Models/Modelos/Modèles
T11800,T11851,T11853,T11855,T11859,
T11861,T11864,T11867,T11885,T11886,
T11892,T11894,T11897-LHP,T11900,T11951,
T11953,T11955,T11959,T11961,T11964,T11967,
T11985,T11986,T11992,T11994,T11997-LHP,
T11852, T11952
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Rough-in R11000 required for installation
Rough-in R11000 necesario para la instalación
Rough-in R11000 requis pour l'installation
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
Addison
TM
Classic
Linden
TM
www.deltafaucet.com
51833
Ara
Arzo
TM
Compel
®
Tesla
Trinsic
TM
3-PORT,THREE AND SIX FUNCTION
DIVERTER TRIM
ACCESORIO PARA EL DESVIADOR DE TRES
Y SEIS FUNCIONES, DE 3 TOMAS
ÉLÉMENTS DE FINITION DE L'INVERSEUR À
3 ORIFICES, À TROIS ET SIX FONCTIONS
Ashlyn
®
Dryden
Vero
®
1
Cassidy
®
Grail
TM
®
Victorian
4/9/15
TM
®
®
Rev. M

Advertisement

loading
Need help?

Need help?

Do you have a question about the T11800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta T11800

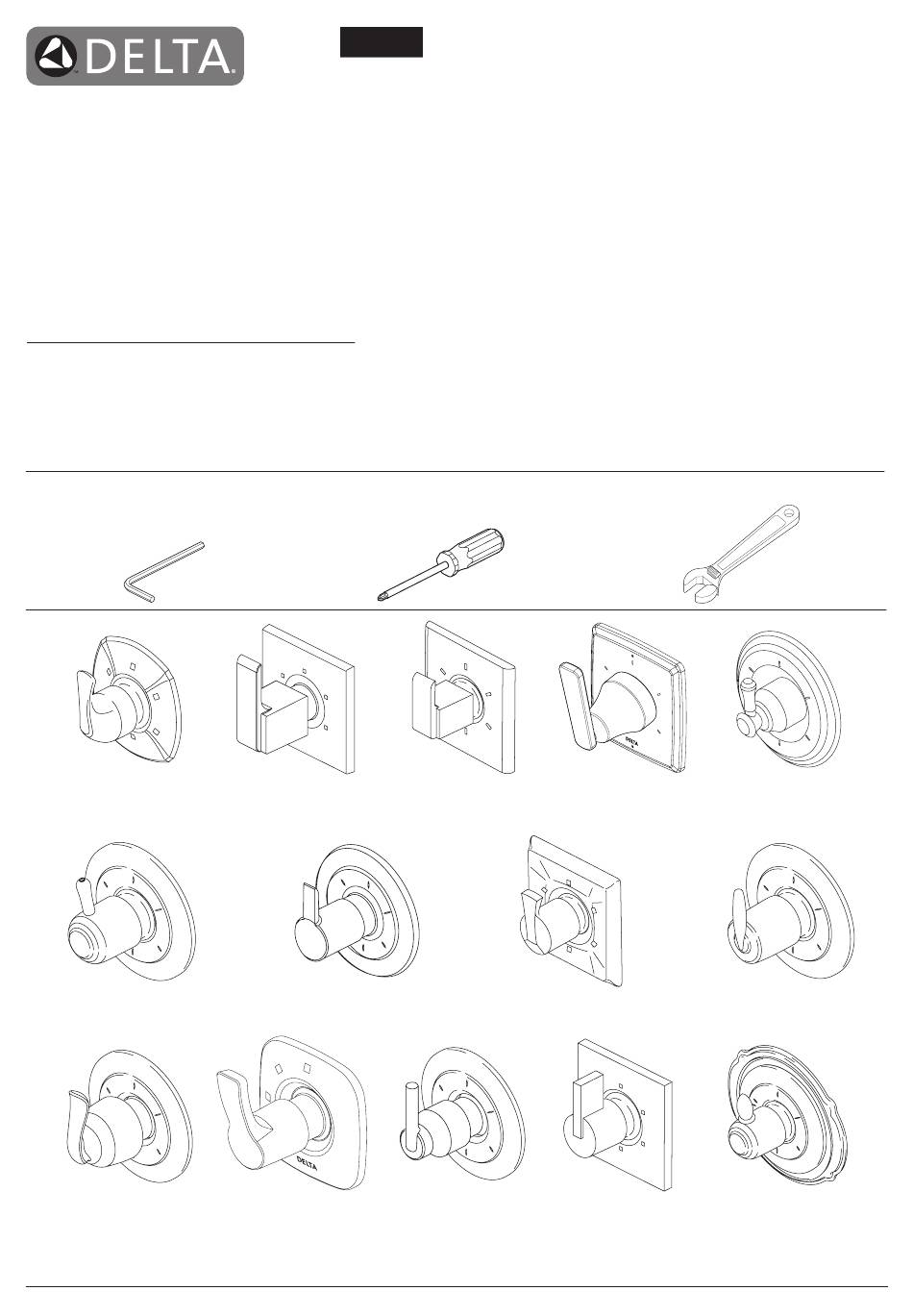

  • Page 1 3-PORT,THREE AND SIX FUNCTION 51833 DIVERTER TRIM ACCESORIO PARA EL DESVIADOR DE TRES Y SEIS FUNCIONES, DE 3 TOMAS Models/Modelos/Modèles T11800,T11851,T11853,T11855,T11859, ÉLÉMENTS DE FINITION DE L’INVERSEUR À T11861,T11864,T11867,T11885,T11886, 3 ORIFICES, À TROIS ET SIX FONCTIONS T11892,T11894,T11897-LHP,T11900,T11951, T11953,T11955,T11959,T11961,T11964,T11967, T11985,T11986,T11992,T11994,T11997-LHP, T11852, T11952 Series/Series/Seria Write purchased model number here.
  • Page 2 When the diverter is ready for trim remove plasterguard (1), bonnet Place and hold backplate (1) (T11855/T11955 Only) and escutcheon (2) and test cap (3) from the body. (2) over diverter. Thread trim sleeve (3) onto threaded sleeve (4) until escutcheon and backplate are secure against wall.
  • Page 3 ▲ Specify Finish Especifíque el Acabado Précisez le Fini RP71717 2-Function, Non-Shared Diverter Cartridge RP75137 Cartucho desviador no-compartido de 2 funciones Diverter Extension Kit (not Cartouche d’inverseur non partagé, 2 fonctions included) Body - 3 Port (adds 1" depth) Cuerpo - 3 Tomas RP51918 Kit de extensión para desviador Corps - 3 Orifices...
  • Page 4 ▲ Specify Finish Using New Trim With Especifíque el Acabado Rough R11600 Précisez le Fini Para el uso de un accesorio nuevo con tuberías internas R11600 Utilisation de la nouvelle finition RP53446▲ RP51917 ® Arzo 6-Function Escutcheon avec les soupapes R11600 Trim Sleeve ®...
  • Page 5: Cleaning And Care

    Water Flow For 3 Function Diverter / Flujo de agua para Desviadores de 3 posiciones / Écoulement de l’eau pour les inverseurs à 3 positions Outlet 1 Outlet 1 1st Position 2nd Position 3rd Position Outlet 1 Salida 1 Salida 1 posición posición posición...
  • Page 6 Delta Faucet Company no será responsable por cualquier daño a la llave de agua que resulte Esta es la garantía exclusiva por escrito de Delta Faucet Company y la garantía no es transferible. del mal uso, abuso, negligencia o mala instalación o mantenimiento o reparación incorrecta, incluyendo el no seguir los cuidados aplicables y las instrucciones de limpieza.
