Summary of Contents for Phase Technology OS-440

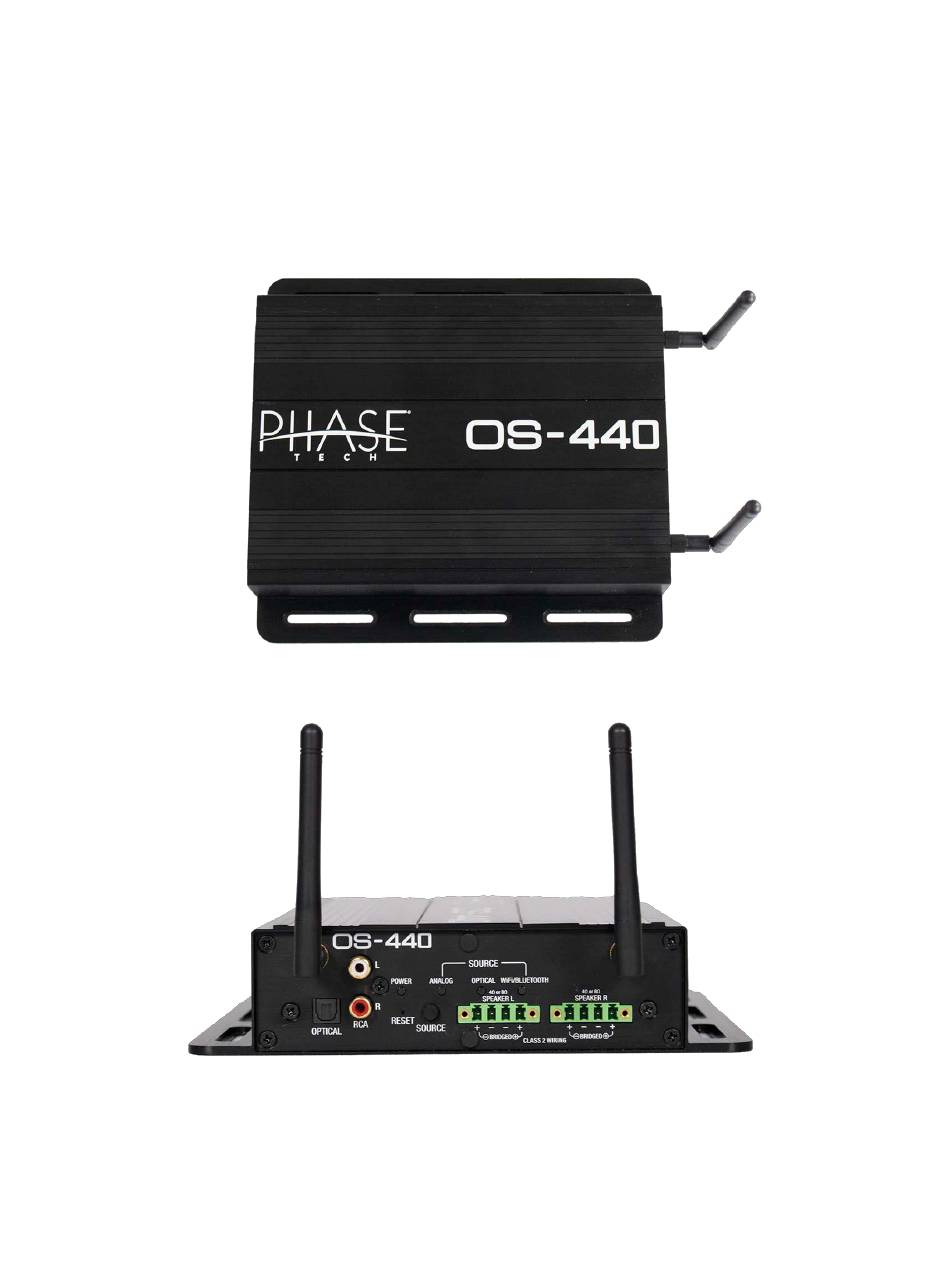

- Page 1 OS-440 Set‐Up Guide...
- Page 2 OS-440 Specifications Software specifications Google Chrome Cast Bluetooth Audio DLNA Wi-Fi 802.11AC Control App MSE OS APP Hardware Overview Brand Phase Technology Corp Product Type Audio Amplifier Description Audio Amplifier for both wired and wireless audio inputs Model Name OS-440...
- Page 3 Solid yellow LED when OS-440 is booting • OPTICAL SOURCE LED: Solid green LED when • Blinking yellow & red LED when OS-440 is updating. • powered & on. Solid cyan LED • Blinking red LED when OS-440 is in protect mode.
- Page 4 Section 1: How To Configure Your OS-440 On a Wi‐Fi Network: 1. When you first power on your OS-440, and a network is not yet configured, the OS-440 will automatically trigger a 'Hot Access Point’. 2. After booting you will see a Green power light indicator and a flashing green "WiFi" light 3.
- Page 5 7. The Google Home app will discover any devices that are not already set up. Tap ‘SET UP’ to begin configuration of your OS-440. 8. Tap ‘NEXT’ at the bottom right corner to proceed with the setup of the OS-440.
- Page 6 9. To confirm that the pairing of the OS-440 was successful, Google Home will play a sound through the device. If you hear the sound, tap ‘YES’ at the bottom right corner to proceed to the next step. 10. Once you confirm that the pairing was successful, you will then be prompted to name the OS-...
- Page 7 11. The next step in configuring your OS-440 is to log it in on your Wi‐Fi Network. Select the desired network, tap ‘NEXT’ in the bottom right corner. Here you will be prompted to input the selected network’s password if one is required for internet access.
- Page 8 13. If you ever need to change the network that your OS-440 is connected to 13.1. Open the Google Home app and select the OS-440. If you renamed the device in the initial set up or have multiple devices, be sure to select the correct one.
- Page 9 Wi‐Fi/Bluetooth. The Source LED will blink blue until a device is paired. 2. In your mobile device settings, turn Bluetooth On and select the OS-440 to pair with. Unless previously renamed, the OS-440 will be named MSE_Audio_OS440. Once paired, you know your device is connected when the source LED will be solid blue.
- Page 10 Section 3: How to Connect a Hardwired Device to your OS-440: 1. Physically plug in your source device using either the RCA (analog) or Optical (digital) input ports. 2. Press the source select button to light the appropriate input you are using; analog or optical.
- Page 11 How To Configure Your OS-440 On Wi-Fi D: Download the ‘MSE OS APP’ from Google Play or the Apple Store 1. To configure your OS-440 in Wi-Fi D, quickly press the source button on your OS-440 twice to change Wi-Fi modes. This will take a few moments.
- Page 12 How To Configure Your OS-440 As Master/Slave On Wi-Fi D: 1. Connect to slave OS-440 amplifier(s) in Wi-Fi D mode (refer to section 4). 2. Using the MSE OS App, found on Google Play and the Apple Store, you will first start with setting the Slave amp(s).
- Page 13 440 amp is ready. Repeat for additional OS-440 slave amplifiers (up to 8). 5. Now connect to the OS-440 amplifier being used as the Master and connect to it in Wi-Fi D mode. 6. Using the MSE OS App, repeat Step 3.
- Page 14 9. Reconnect to the Master OS-440 amplifier in WiFi D mode and the Slave OS-440 amplifier will be visible in the MSE OS App. 10. Press ‘EDIT’ on the My Devices page, select the Master OS-440 amp, and then press the + symbol next to the Slave OS-440 amp.
