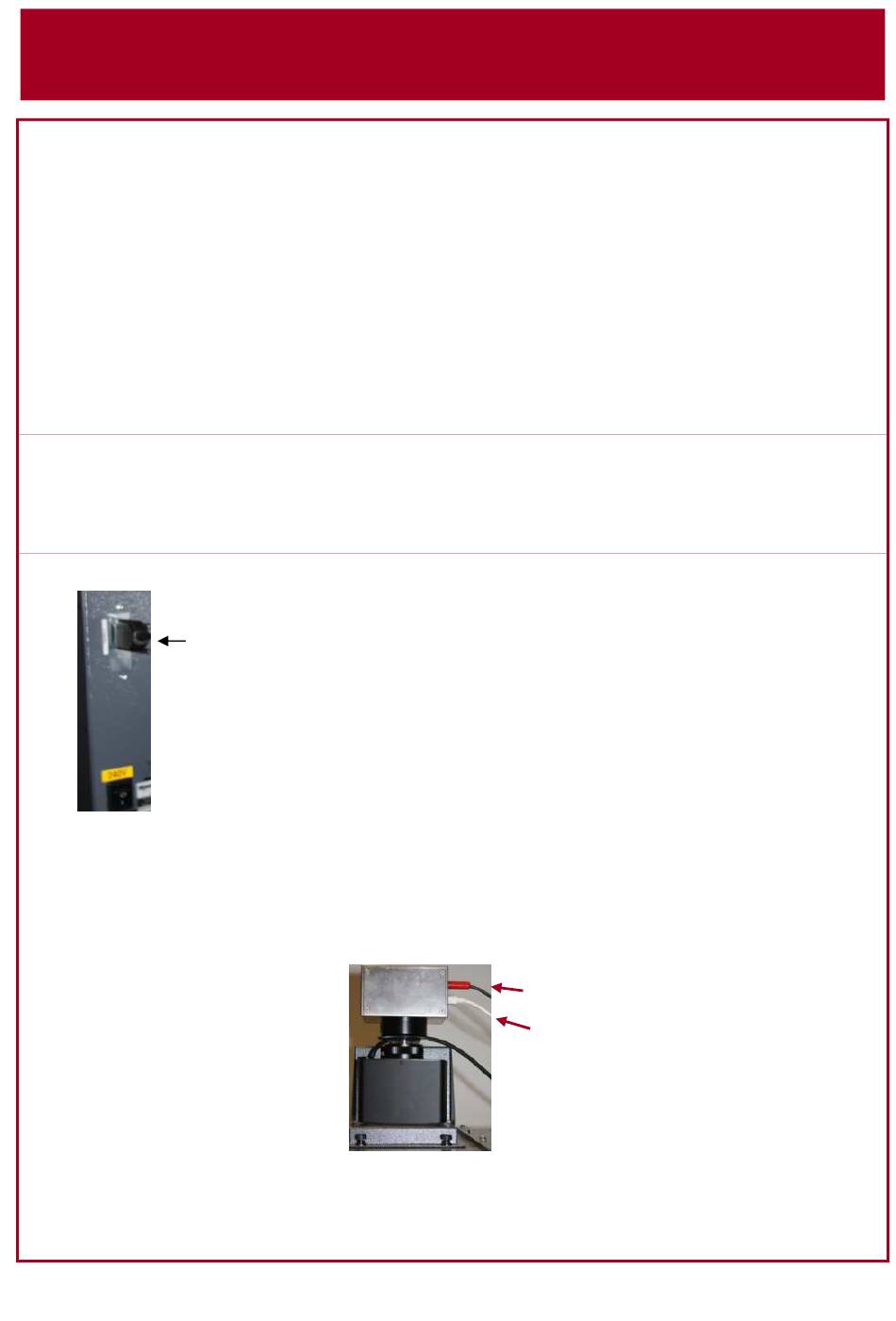

G:BOX Chemi XRQ Installation – Quick Guide
Title

System components

1.
Darkroom with epi white lighting (factory fitted)
2.
Camera with lens, close–up lens and UV filter (factory fitted)
3.
UV transilluminator
4.
GeneSys and GeneTools software
5.
USB to serial/COM port converter
6.
All required cables
CAUTION:
Do not connect power supply to any of the components until you are instructed
to below. For assistance please contact your supplier or Syngene directly

Darkroom set-up

1.
Connect power cable to the back of the darkroom

Camera

Camera
port
Figure 1
2.
Place the camera on top of the darkroom (first remove lens cap if fitted, pull off lens
cap, DO NOT screw off or you will remove filters) on top of the darkroom with the
bracket facing the rear and connect the camera power cable (the DC power end) to
the camera (Figure 2).
1.
Connect the camera power cable (9-way D-type connector) to
the back of the darkroom (port labelled 'camera') (Figure 1)
Figure 2-
camera
Camera power
cable
Camera USB
cable
XRQ
1
