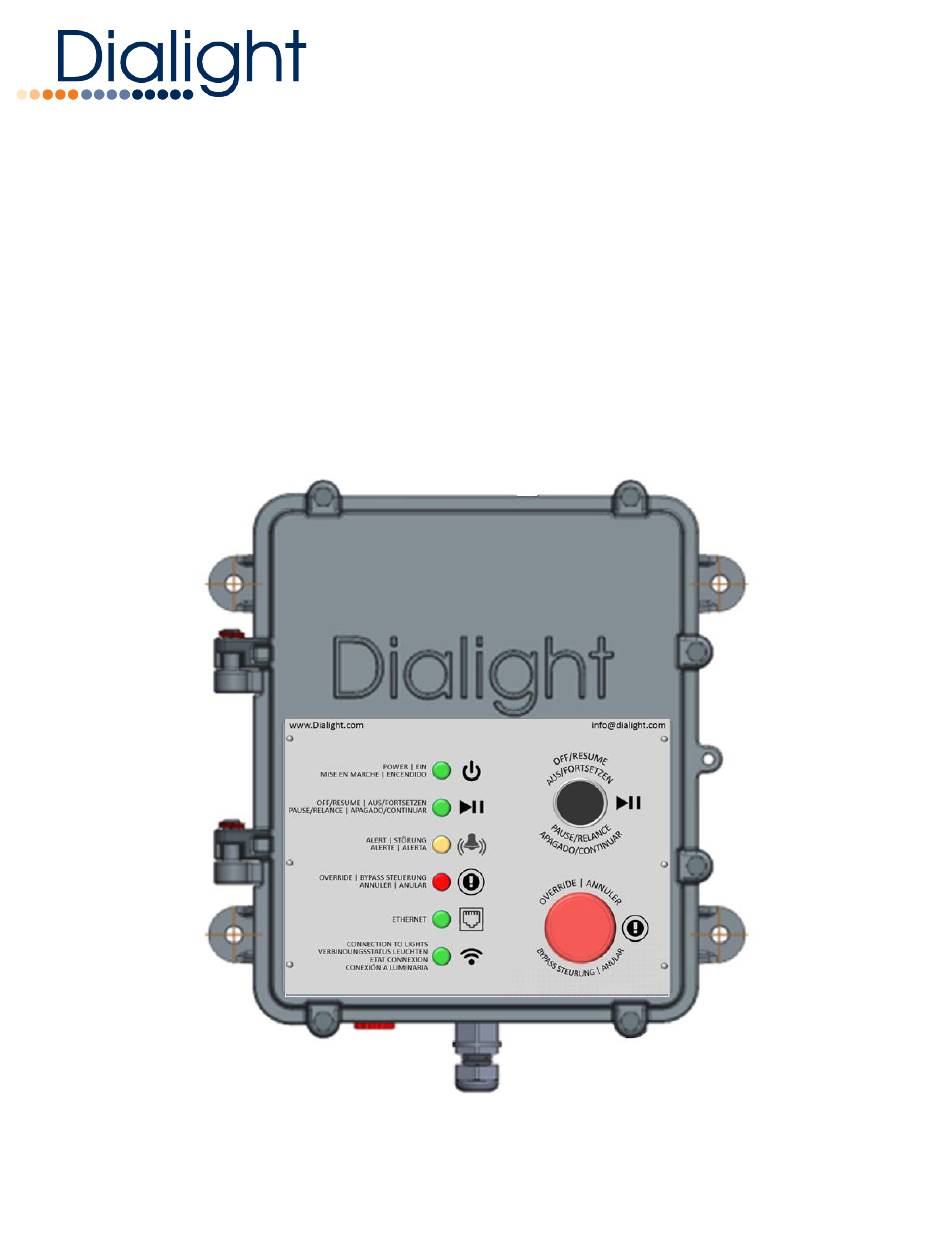

- Page 1 IntelliLED Gateway: Quick Start Guide 9100127369799_A | April 2018 www.dialight.com...
-
Page 2: Table Of Contents
IntelliLED Gateway Table of Contents Introduction IntelliLED Gateway Technical Specifications About Dialight IntelliLED System Architecture Getting Started What You Will Need Mounting Considerations (Best Practices) RF Considerations (Best Practices) Connecting to Your Gateway WiFi Access Ethernet Access Record Change Settings... - Page 3 • Repairs and installation must only be carried out by a qualified electrician. • Only genuine or authorized Dialight replacement parts must be used when unforeseen repairs are required. • Observe the national safety rules and regulations during installation.
-
Page 4: Introduction
Gateway is a standalone wireless controller, which can be used to connect, configure and manage up to 120 connected Dialight wireless nodes. These include light fixtures, occupancy and daylight harvesting sensors. The Gateway offers quick set-up and commissioning of your lighting system. The Graphical User Interface (GUI) on-board the Gateway may be accessed via a direct Ethernet connection using a laptop or over WiFi. -
Page 5: About Dialight
Gateway About Dialight Dialight is the world leader in LED industrial lighting technology with over 1 million LED fixtures installed worldwide. In 1971, we launched our first LED product. Since then, we have revolutionized the use of LEDs and ONLY LEDs, to provide superior lighting for traffic control, indicators, structural towers and industrial work sites around the world. -
Page 6: Getting Started
IntelliLED Gateway Getting Started What You Will Need • Dialight IntelliLED Gateway • AC power 100-277 VAC, 50/60Hz (14AWG (2.08mm) minimum 8AWG (10.5mm ) maximum • Mounting hardware (3/8 inch / 9.5mm through holes x 4) • Ethernet Cable (optional) •... -
Page 7: Rf Considerations (Best Practices)
RF to extend to your lighting fixtures. Avoid enclosed locations. • Channel Selection • IntelliLED Controls System allows the user to select the RF channel number based on site demands. Ensure the IntelliLED Controls System is operating on a RF channel with low use. www.dialight.com... -
Page 8: Connecting To Your Gateway
• Allow 1-2 minutes for device to connect. • Open supported web browser (see above) and enter the following web address: • http://10.10.0.1 • The login page for the IntelliLED Controls System should load and prompt you for a username and password: • Username: admin •... -
Page 9: Ethernet Access
• Ensure your IntelliLED Gateway is powered on and you have an inter net capable device connected to the Ethernet port on the IntelliLED Gateway (located on the bottom of the unit) • Access your devices local network settings and change your IP to the following: •... -
Page 10: User Interface Quick Reference
After familiarizing yourself with these menu options, please click Commission and follow the steps to begin configuring your IntelliLED Lighting Controls System Note: Refer to IntelliLED Gateway Manual for in-depth user interface information www.dialight.com... -
Page 11: Front Panel Quick Reference
IntelliLED Gateway Front Panel Quick Reference Off/Resume Status LEDs: (5 sec press) Override normal Provide system status and operation and turn connected visual notifications lights OFF Override: Override your lighting system to a 100% emergency ON state Networking: Power: Ethernet Entry AC Power Entry www.dialight.com... -
Page 12: Contact Us
IntelliLED Gateway Contact Us US Customer Support +1 844 436 5422 New Jersey (North America Headquarters) 1501 Route 34 South, Farmingdale New Jersey 07727 +1 732 919 3119 Dialight Europe Ejby Industrivej 91B 2600 Glostrup, Copenhagen Denmark +45 8877 4545 - Denmark... - Page 13 While every precaution has been taken to ensure accuracy and completeness of the information in this document, this document does not form part of any contract with Dialight and Dialight does not assume any liability for damages resulting from the use of this information, including any information on third party websites linked to from this document.
