DeView DN22H485 Instruction

INSTRUCTION MENU
System Day/Night Camera
！
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
To prevent fire or electric shock hazard, Do not expose this appliance to rain or
moisture.
RF EMISSIONS
This Class B digital apparatus complies with Canadian ICES-003.
Cet Appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
reorient or relocate the receiving antenna.
-
increase the separation between the equipment and receiver.
-
connect the equipment into an outlet on a circuit different from that to which
-
the receiver is connected.
consult the dealer or an experienced radio/TV technician for help
-
PREFACE
CB series camera introduces a new high picture quality , high resolution and high
sensitivity 1/3 inch type interline transfer CCD image sensor.
The CB series cameras have been developed using the advanced technology of
Digital Signal Processing LSI ( DSP ) together with On Screen Display control ( OSD ).
This series cameras is ideal for advance surveillance applications, or as an input
device for an mage processing system.

FEATURES

High sensitivity with minimum illumination needed for quality video.
Low image distortion and residual, withstanding electric and magnetic field
interference and mechanical vibration.
Applications: Surveillance, Monitoring and Security.
Excellent signal to noise ratio.
Accurate color reproduction and 2 application range of Auto Tracing White
balance ( ATW ) over a wide color temperature.
Aperture and color suppression under low light to reduce spectral and Chroma
noise.
Automatic electronic shutter provides ＞ 1,600 : 1, equivalent to 40 steps,
dynamic range to correct exposure, if a manual iris lens is used.
The following functions are built in :
1 ) On Screen Display ( OSD ) digital control.
2 ) Internal and line lock synchronizations.
3 ) Auto IRIS ( AI ) / Auto Electronic Shutter ( AES ).
4 ) Auto IRIS level adjust by digital process on OSD manual.
5 ) 6 option for full application of Black Light Conversation ( BLC ).
6 ) Advance parameter adjust for application conditions.
7 ) 2 range Auto Tracking White balance ( ATW ) for indoor and outdoor
application conditions.
The back focus adjustment function allows easy adjustment and installation.
Excellent picture quality
1 ) 2 edge ( vertical and horizontal ) picture enhancer for greater picture
sharpness.
2 ) New Chroma processing circuit for better color reproduction.
3 ) New concept ATW curve for good color emendation.

PRECAUTION

Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws, case or covers. There are
no user serviceable parts inside. Ask a qualified service person for serving.
Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, etc. The camera could
damage by any improper handing or storage.
Do not expose the camera to rain or moisture, or try to operate it in
wet areas.
Take immediate action if the camera becomes wet. Turn power OFF and
refer servicing to a qualified service person for servicing. Moisture can
damage the camera and also create the danger of electric shock.
Do not use strong or abrasive detergents when cleaning the camera
body.
Use a dry cloth to clean the camera when dirty. In case the dirt is hard to remove,
use a maid detergent and wipe gently.
Clean the CCD faceplate with care.
Do not clean the CCD with strong or abrasive detergents. Use lens tissue or a
cotton tipped applicator and ethanol.
Never face the camera towards the sun.
Permanent damage may occur when subjected to intense light. Whether the
camera is in use or not. Use cautiously when operating any electrical device.
Keep the camera out of the direction of spotlights and light reflecting objects.
Do not operate the camera beyond the specified temperature, humidity
or power source ratings.
Do not use the camera in an extreme environment where high temperature or high
humidity conditions exist. Use the camera under conditions where temperatures
are within -10℃ ~ + 50℃ , and humidity is below 80% relative humidity. The
input power source is 220VAC ~ 240VAC for AC230V model and DC12V/AC24V ±
20% for AC24V model camera.
Do not touch the CCD sensor with your fingers. If necessary, use soft
cloth moistened with alcohol to wipe off the dust.
When the camera is not in use, keep the cap on the lens to protect the
CCD sensor.

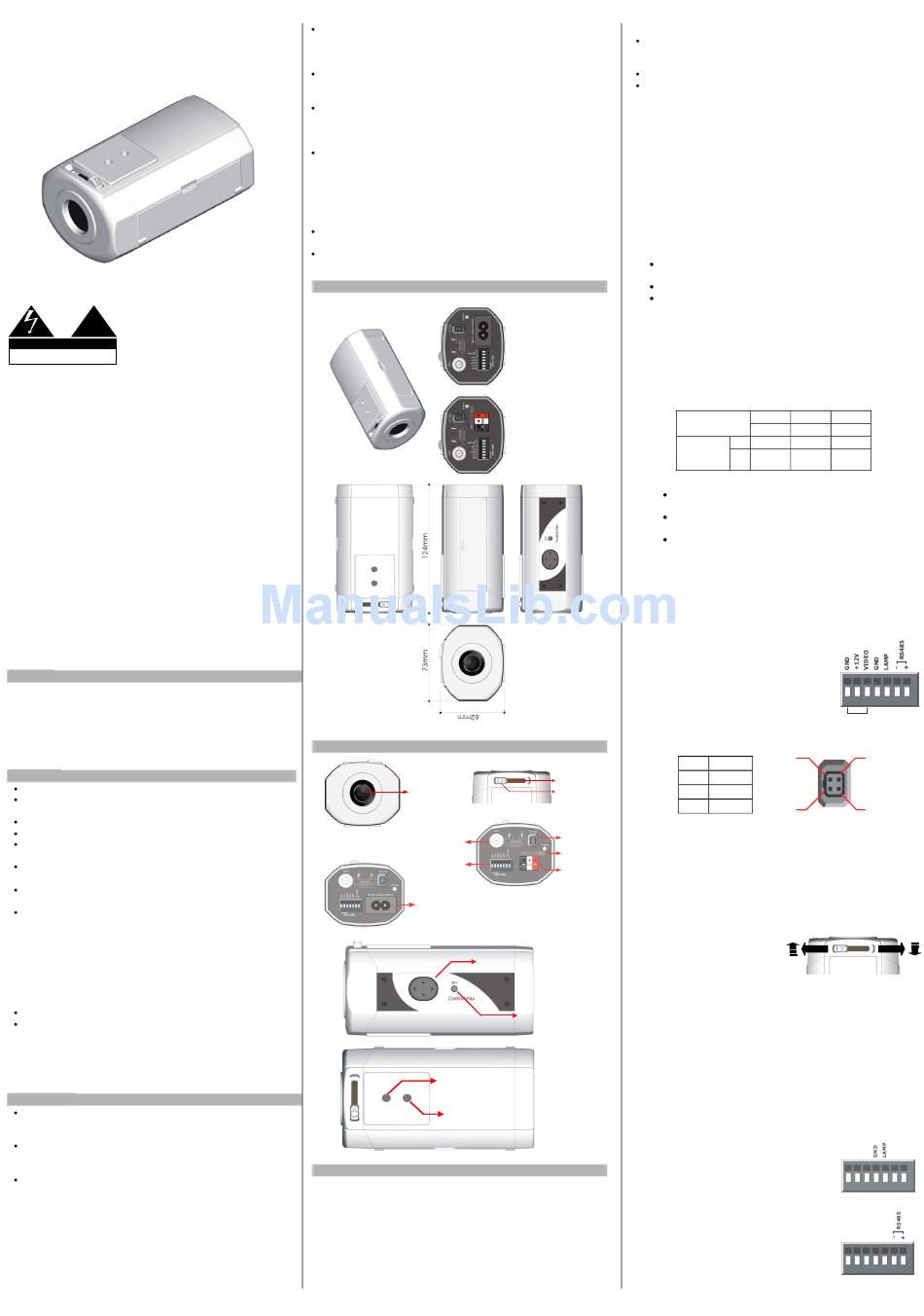

CAMERA DRAWING

PART DESCRIPTION

CS Lens mount,
1"-32 UNF
BNC,
Video Output
Video Auto IRIS Drive Output.
RS-485 Controller.
IR Lamp Contect.
Power Input.
110VAC ~ 240VAC
Mounting screw hole,
¼", 7mm deep.
Rotation preventive hole

CONNECTION

Important Note:
Qualified service personnel or system installers should make the installation. Check
the power is OFF before handling the power cable no matter AC main power or low
voltage AC24V/DC12V.

A. Main Power Model (100VAC-240VAC 50Hz) :

1. Connect the AC power cord (supplied as standard accessory) to the power cord
socket of the camera.
Connect the AC power cord to an electrical outlet of AC100V ~ AC240V
2.
50Hz/60Hz.
1
Notes:
Connect the power cord firmly. The power cord should be long enough for
panning and tilting. If the cable is too short, the power cord plug may be
pulled off the camera when the camera pans or tilts.
Brown: Live, Reference line lock. Blue: Neutral.
This camera voltage could accept range rated is AC90V ~ AC260V. But
recommend range is AC100V ~ AC240C.

B. Dual Power Model (12VDC/24VAC).

The series model has an AC/DC compatible input terminal. DC12V or AC24V
power supply cable can be connected to this terminal. The camera detects
the power source automatically.
Recommended wire gauge size. Φ0.65mm(AWG22), Stranded wire
0.32m ㎡(AWG22), Element wireφ0.18Min.
1. 12V DC Power Supply
Connect the power cable to the AC/DC compatible input terminal on the rear
panel of the camera. +12VDC should connect is the RED terminal. 0VDC
to the white terminal. Black terminal for Earth connection.
2. 24V AC Power Supply
Connect the power cable to the AC/DC compatible input terminal on rear
panel of the camera.
Notes:

C. Video Cable

1. It is recommended to use a monitor whose resolution is at least equal to
2. Set the termination switch to the 75Ω position on the last monitor, and
3. Wiring precautions:

D. Installation of Auto Iris Lens Connections

The camera supports Manual Iris Lens, Video Auto Iris Lens and DC Auto Iris
Lens. Use Video Auto Iris Lens or DC Auto Iris Lens is recommended for
outdoor application to prevent smear of the CCD.
1. Video Auto Iris lens
2. DC Auto Iris Lens
Back Focus Adjust
Back Focus Fix Screw

G. Mounting the Lens

DC Auto IRIS
Output Connector
Terminal Block,
Power Input

H. Focus and Back Focal Adjustment

OSD menu, Arrow Key.
OSD menu, Enter Key.

I. LAMP Contact

J. RS485

2
If the cable is too short, the power cable may be pulled off the camera
when the camera pans or tilts.
Red: Live, Reference line lock, Black: GND,. White: Neutral.
Voltage range: Rated AC12V ~ AC28V. or DC10V ~ DC30V.
the camera.
to the Hi-Z position on the other monitors. Do not change the positions
after setting.
a. Use a 75Ω coaxial cable.
b. The maximum extensible coaxial cable length between the camera
and the monitor is shown below.
RG-59/U RG-6U RG-11/U
Type of Coaxial cable
3C-2V 5C-2V 7C-2V
Recommended
m 250 500 600
Maximum
ft 825 1650 1980
Cable length
Do not bend the coaxial into curve whose radius is smaller than 10
times cable's diameter.
Never staple the cable even if with circular staples. Impedance
mismatching will occur.
Never crush or pinch the cable and cause poor picture quality.
The connection terminal is on the rear panel of the Camera.
Refer the pin assignment (as Figure 1 at Right ) is necessary to insure
correct operation.
Recommended wire gage:
Solid wire : φ1.2mm(AWG16), Stranded wire :
0.25m ㎡(AWG16), Element wire : φ0.18Min.
Pin assignment
GND : Shield, ground.
+12V : Power source; +12VDC, 50mA Max.
Video : Video signal output.
The 4pin connection terminal is on the rear panel of the Camera.
Refer the pin assignment is necessary to insure correct operation.
Pin 2
Pin 1 Damp +
Pin 2 Damp -
Pin 3 Drive +
Pin 4 Drive -
Pin 1
1. Mount the lens by turning it clockwise on the lens mount of the camera.
2. Connect the lens cable to the auto iris lens connector on the rear panel of
the camera.
Caution for Mounting the Lens
The lens mount should be a CS –mount (1"-32UN) and the lens weight
should be less than 450g (0.99 lbs). IF the lens is heavier, both the lens
and camera should be secured by using the supporter.
The following adjustment should be made by qualified service personnel or
system installers.
1. Loosen the screw of back
focus adjust on the topside of
front head.
2. Move the back focus adjust screw
to the desired position.
3. Fixing the screws on the back focal adjusting screw.
Caution:
Do not fix the back focus screw too tight, otherwise the back
focus mechanize unit might be damaged. Finger tight only.
When the C-mount lens is mounted, do not rotate the ring
Counter clockwise by force after it. If the ring is rotated by
force, the inner lens or CCD image sensor may be damaged.
To prevent mechanize OLPF hunting, this camera equipped the
external contact terminal with IR lamp control. Connect to GND that
switch camera to nighttime mode immediately.
Caution :
When use IR illuminations, use a lens that is
compatible with the IR illuminations.
Any lens other than the compatible one
can result out of focus due to such
characteristics.
Terminal for remote control by EIA/TIA RS485 format,
refer pin assignment to have correct connection.
Those cables should 0.654 conductor twisted
pair cables. With these cables the max
extension distance is 1,000m.
VIDEO LENS
Pin 3
Pin 4
3
