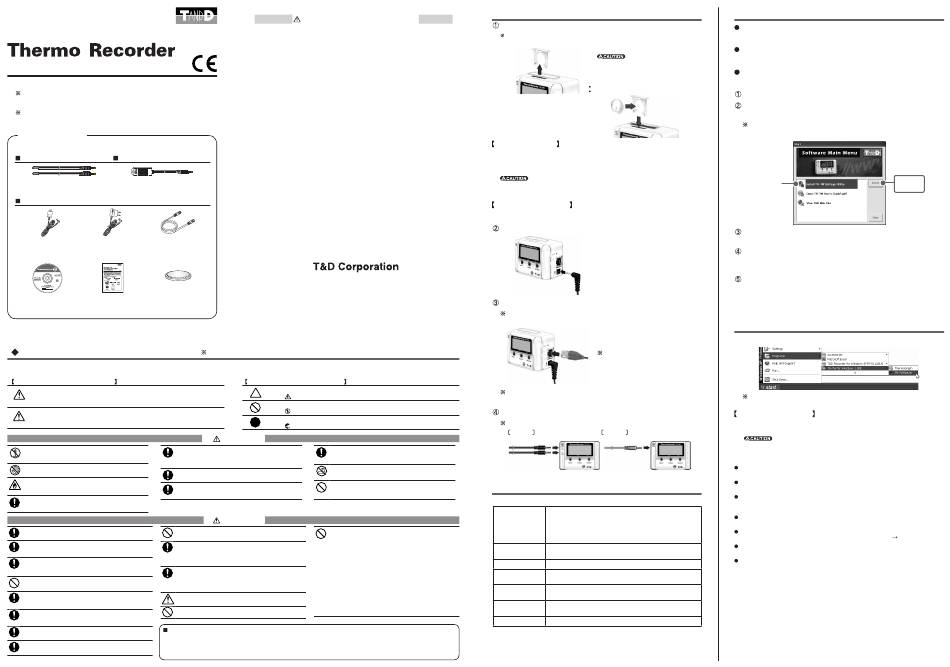

T&D TR-71W Introductory Manual

Introductory Manual

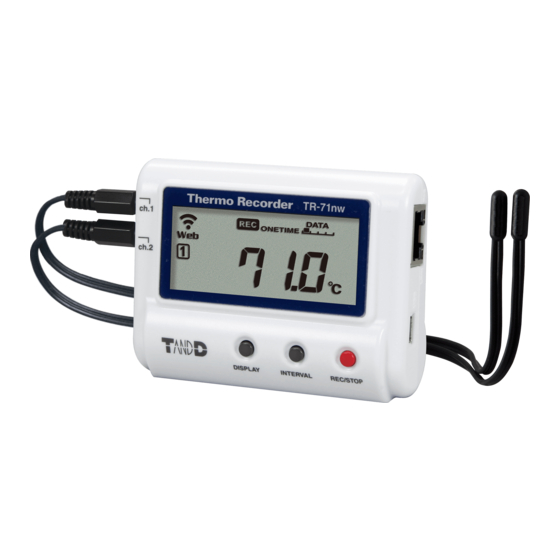

TR-71W / TR-72W
Network Communication Type Temp/Humidity Data Logger
This Introductory Manual explains in a simple manner the basic operations and set
up for TR-71W / TR-72W. For a more detailed explantion, see the User's Manual
on the provided CD-ROM.
This data logger is designed for network communication. It does not include any
RS-232 or USB communication interface. To make use of this product you must
connect it to a network.
Package Contents
The following items should be in the package with each main unit.
TR-71W TR-72W
Temp Sensors Humidity Sensor
(TR-0106) x 2 (TR-3110) x 1
Common Items
AC Adaptor x 1 Straight LAN Cable (LN-20W)
(AD-0605 or AD-05C1) x 1
(for HUB use only)
Software Introductory Manual Lithium Battery
CD-ROM x 1 (Warranty) x 1 (CR-2032) x 1
Safety Precautions and Instructions
To prevent any loss or damage to our customers, other people and / or property, and to ensure the proper use of our products we ask that before using our product you carefully read, understand and follow the safety
rules and precautions for our products as outlined below.
Explanation of Warning Symbols
These entries are actions that absolutely under no circumstance should be taken.
DANGER
The taking of such an action may cause serious personal physical damage or
death.
C AUTIO N These entries are actions that if taken may lead to physical injury or damage to
persons or things.
Do not take apart, repair or modify the main unit. It may cause fire, Do not drop the unit, or expose the unit to a strong impact. If that
happens to the unit, immediately remove the batteries and stop
electrocution or damage. Ask the shop where you purchased the
using.
product or T&D Corporation to carry out any repairs.
Continued use may cause fire or electrocution.
Do not connect or unplug the AC adaptor with wet hands. It may
cause electrocution.
Store all batteries, sensors and Thermo Recorder units out of the
reach of children. It is dangerous to swallow batteries.
If water or a foreign body enters into this unit, immediately remove
the batteries and stop using. Make sure to periodically remove dust and dirt from the AC
adaptor. Dust can cause moisture to accumulate and can lead to
Continued use may cause fire or electrocution.
poor insulation which may result in fire.
If any smoke or strange smells are emitted from the unit,
immediately cease using it.Continued use may cause fire,
electrocution or damage.
This unit is not water-resistant.
Do not place heavy or hot things on top of cables. It may cause
electrocution or damage.
If the unit gets dirty, wipe it with a clean cloth and a mild detergent.
We are not responsible for any malfunction or trouble caused by the To prevent damage to the unit from static electricity, remove static
electricity from your body by touching metal around you (door knob,
use of our product or by any problem caused by the malfunction of
our unit. Please be fully aware of this before using our product. window frame) before touching the unit.
Static electricity may cause not only damage to the unit, but may
This product has been designed for private or industrial use only. It is
cause breaks in or a loss of data.
not for use in situations where strict safety precautions are necessary
such as in connection with medical equipment whether directly or Condensation may occur if the unit is moved from one environment to
indirectly. another where the difference in temperature is great.
Do not expose the unit to harmful gases or chemicals. It may cause
Use the unit in an environment where the ambient temperature is from
corrosion and/or other danger to the unit and to people handling the
0 to 60°C and the humidity is from 20 to 80%RH (no condensation) or
unit.
less.
Remove batteries from any unit that is not to be used for a long
Errors in accuracy increase with increase in electrical noise.
period of time. Batteries left in a unit not being used for a long time
may leak and cause a malfunction.
If water or a foreign object enters the case, immediately cease using it.
To avoid poor connections, be sure to push the sensor connector
securely into the jack. When pulling out a cable from the logger, make
sure to hold the connector plug to pull it out.
Battery terminals may provide insufficient contact due to age or FCC Compliance Statement for American Users
vibration. Please be careful not to lose data due to insufficient
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
contact.
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
Battery life depends on the measurement environment,
communication frequency, recording interval and battery quality. communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Thermo Recorder TR-71W/72W Warranty
Provisions for Free Repair
TR-71W TR-72W
The warranty is contained in the User's Manual (English) included in the package.
When seeking repair, please make sure to fill in all required fields and present it.
Guarantee Period 1 year from date of purchase
Date of Purchase
1. If the Unit does not work properly despite the fact that the customer used it properly and in line with the
Customer's name
manual, the Unit shall be repaired free of charge through the distributor which sold the Unit.
2. If the customer requests free repair because of trouble within the warranty period, bring or send the Unit
along with the warranty to the distributor.
Address
3. If you have moved after purchasing, or there are difficulties contacting the distributor from which you
purchased the Unit, please contact T&D directly for service.
4. Free repair is not available in the following cases even though it is within the warranty period:
1. Trouble or damage was caused by careless operation, natural disaster, fire, public pollution, or use of a
power source other than specified.
Phone No. 2. If repair, adjustment, disassembly or modification of the Unit has been carried out by a person other than
a T&D authorized engineer.
Distributor's name
3. Trouble or damage was caused by transportation, movement or dropping of the Unit afterpurchase.
4. Failure to submit the Warranty or failure to fill in all items required in the Warranty.
5. The Warranty cannot be reissued.
Address
The Warranty only promises customers free repair within the period and conditions clarified in The Warranty.
Therefore, the customer's legal rights will not be limited by the Warranty. For further information on repair
and other service questions after the termination of the warranty period, contact your distributor.
Phone No.
Object of Repair Main Unit (excluding sensors and any other options.)
Method of Repair Send in for Repair
Provisions for Free Repair
1. If the Unit does not work properly despite the fact that the customer used it properly and in line with the manual,
the Unit shall be repaired free of charge through the distributor which sold the Unit.
2. If the customer requests free repair because of trouble within the warranty period, bring or send the Unit along
with the warranty to the distributor.
3. If you have moved after purchasing, or there are difficulties contacting the distributor from which you purchased
the Unit, please contact T&D directly for service.
4. Free repair is not available in the following cases even though it is within the warranty period:
1. T rouble or damage was caused by careless operation, natural disaster, fire, public pollution, or use of a power
source other than specified.
2. I f repair, adjustment, disassembly or modification of the Unit has been carried out by a person other than a T&D
authorized engineer.
3. T rouble or damage was caused by transportation, movement or dropping of the Unit after purchase.
4. F ailure to submit the Warranty or failure to fill in all items required in the Warranty.
5. The Warranty cannot be reissued.
This Warranty only promises customers free repair within the period and conditions clarified in this Warranty.
Therefore, the customer's legal rights will not be limited by this Warranty. For further information on repair and
other service questions after the termination of the warranty period, contact your distributor.
Shimadachi 817-1, Matsumoto, Nagano 390-0852 JAPAN
Tel:+81-263-40-0131 Fax:+81-263-40-3152
E-mail support@tandd.com
Homepage http://www.tandd.com/
© Copyright T&D Corporation. All rights reserved.
Please carefully observe the following safety measures when using our product.
Explanation of Picture Symbols
Denotes an important warning or caution. Near the symbol will appear another symbol giving details.
(EX: stands for CAUTION AGAINST ELECTRIC SHOCK)
Denotes a forbidden action. Inside or near the symbol will appear another symbol giving details.
(EX: stands for DO NOT TAKE APART)
Denotes an action that you must take. Near the symbol will appear another symbol giving details.
(EX: stands for PULL POWER PLUG OUT FROM OUTLET)
DANGER
While installing and using this product, make sure to always follow
your computer manufacturer's warnings and cautions.
Do not use this unit in wet or humid places, such as a bathroom.
Continued use may cause fire, electrocution or damage.
This device is designed to measure and record temperature and
humidity. Do not use it for any other purpose than to measure and
record temperature and humidity.
CAUTION
Do not use or store the Thermo Recorder in any of the following places.
Doing so may cause electrocution, fire and/or other adverse effects to
the device and/or your computer.
- Areas exposed to direct sunlight
This will cause the inside of the device to become overheated and may
cause fire, deformation, and/or other damage including malfunction.
- Areas prone to strong magnetic fields
This may cause damage including malfunction.
- Areas exposed to water leakage
This may cause electrocution or other damage including malfunction.
- Areas exposed to excessive vibration
This may cause injury, malfunction, damage or loss of proper electrical
contact.
- Areas near fire or exposed to excessive heat
This may cause damage including malfunction and deformation.
- Areas prone to smoke, dust and dirt
This may cause damage including malfunction.
1. TR-71W/72W Getting Ready
Insert the backup battery
For normal use please connect the AC adaptor
1.
Pull out the battery case.
Battery Functions
Under normal conditions the AC adaptor should be used for measuring and recording
data, but if there is a power shortage or the AC adaptor cable beomes unusable,
the backup battery can be used for measuring and recording. (without network
communication)
- If no battery has been installed and the AC adaptor power cannot be used, all data will be
lost. So, please be very careful.
Replacing the Battery
When the battery power becomes low, a mark will appear on the LCD of the main unit. If
the battery is not changed and all power is lost, the saved data will also be lost.
Connecting the AC Adaptor
Connecting a LAN Cable
When first making settings, please connect to a computer that is connected to a
2011.10 16507000009 (6th Edition)
local network(same broadcast domain.)
To Connect directly to a Computer without using a HUB, you must use a Crossed
LAN Cable Purchase seperately.) For more details, See [Connecting to a
Network]in the User's Manual on the CD-ROM.
Connecting the Sensors
To ensure a proper connection make sure that the plug is completely inserted
TR-71W
2. Check your Computer Specifications
To properly use TR-71W/72W, the following operational environment is necessary.
OS Microsoft ® Windows
Microsoft ® Windows Vista
Microsoft ® Windows
Microsoft ® Windows
- To install the Settings Utility, it may be necessary to have Administrator Rights for
the computer into which it will be installed.
PC/CPU A Stable Windows Operating Environment
LAN, TCP/IP Communication Possible
Memory Capacity Enough memory to stably operate Windows
Disc Space More than 10MB free space (More free space is necessary for
data)
Monitor VGA (SVGA higher than 800×600 recommended)
more than 256 colors
LAN 100BASE-TX or 10BASE-T
Twisted pair cable confirming to Category 5 (STP/UTP)
Web Browser Internet Explorer 6.0 or higher
*1 Please note that when using Windows XP SP2, Internet Security warning messages or messages concerning
making additions to the list of reliable sites may appear. Also, high level security settings may cause the browser
display to not work properly.
3. Installing the Software
Is Windows
If Windows is not operating properly, [TR-7W Settings Utility] and [Temp /Humidity
Graph] may not be installed correctly or it may not operate properly.
2.
Insert the battery into the case making sure
Please quit all other applications.
not to mistake + / -.
If other programs are open, please close and quit all of them, making sure to quit all
Quick Start programs such as a virus checker.
Battery performance deteriorates by natural
discharge and corrosion. We suggest changing
To install the Settings Utility, it may be necessary to have
batteries somewhere between one and two
Administrator Rights for the computer into which it will be installed.
years use.
Please use only new batteries
Once the battery is reinserted, power will go on.
Open Windows
Place the accompanying CD-ROM into your CD-ROM drive. In a
few seconds, the [Install Program] window will appear.
If that window does not automatically open, please open it by double clicking the
CD-ROM icon in [My Computer] on your desktop.
Also, if the file appears in the CD-ROM folder, click on the "start.exe" icon.
Click here
Select [Install TR-7W Settings Utility] and click the [Execute]
button to start the installation.
During the installation you will have choices about which
modules to install. Please select the modules you wish and
*To ensure a proper connection make sure
follow the installation directions.
that the plug is completely inserted.
After installation has been completed, [TR-7W Settings Utility]
and [Temp / Humidty Graph] will be registered in the Windows
[Start] Menu.
4. Opening the TR-7W Settings Utility
To open, in the Windows Start Menu, under Programs, click [TR-7W Settings Utility].
To ensure a proper connection make sure
that the plug is completely inserted.
For more detailed information about using [TR-7W Settings Utility], see the User's
Manual on the CD-ROM
TR-7W Settings Utility
The TR-7W Settings Utility contains operational settings for such functions as Detailed
Network Settings, Warning Report Settings, Gather Current Reading Settings and others.
TR-72W
- If you open[TR-7W Settings Utility] on multiple computers in the same network, it may not
work properly. Please open it from only one computer at a time in the same network (same
broadcast domain).
[Network Initialization ]Tab
Settings for helping to connect a TR-71W/72W to a network.
[Detailed Network Settings]Tab
Make detailed network settings here.
[Warning Report Settings]Tab
Make settings to send Internet mail to report when current readings have exceeded
limit settings and/or when a unit's backup battery power has become low.
® 7 32/64bit English
® 32bit English [Gather Current Reading Settings ]Tab
Make settings to view current readings of multiple TR-71W/72W's in one browser.
® XP 32bit (SP2 or above) English *1
® 2000 English
[Menu]-[Login History]
If you wish to disable the History Function, select [Login History] [OFF].
[Menu]-[Clear Login History]
To erase an entire history, use [Clear Login History].
[Menu]-[Communication Time Settings]
It is possible to change the communication time for all types of communication to
match your network environment.
® operating properly?
®
.
[Execute]
button
