Summary of Contents for RFT Code Alert Wander Management

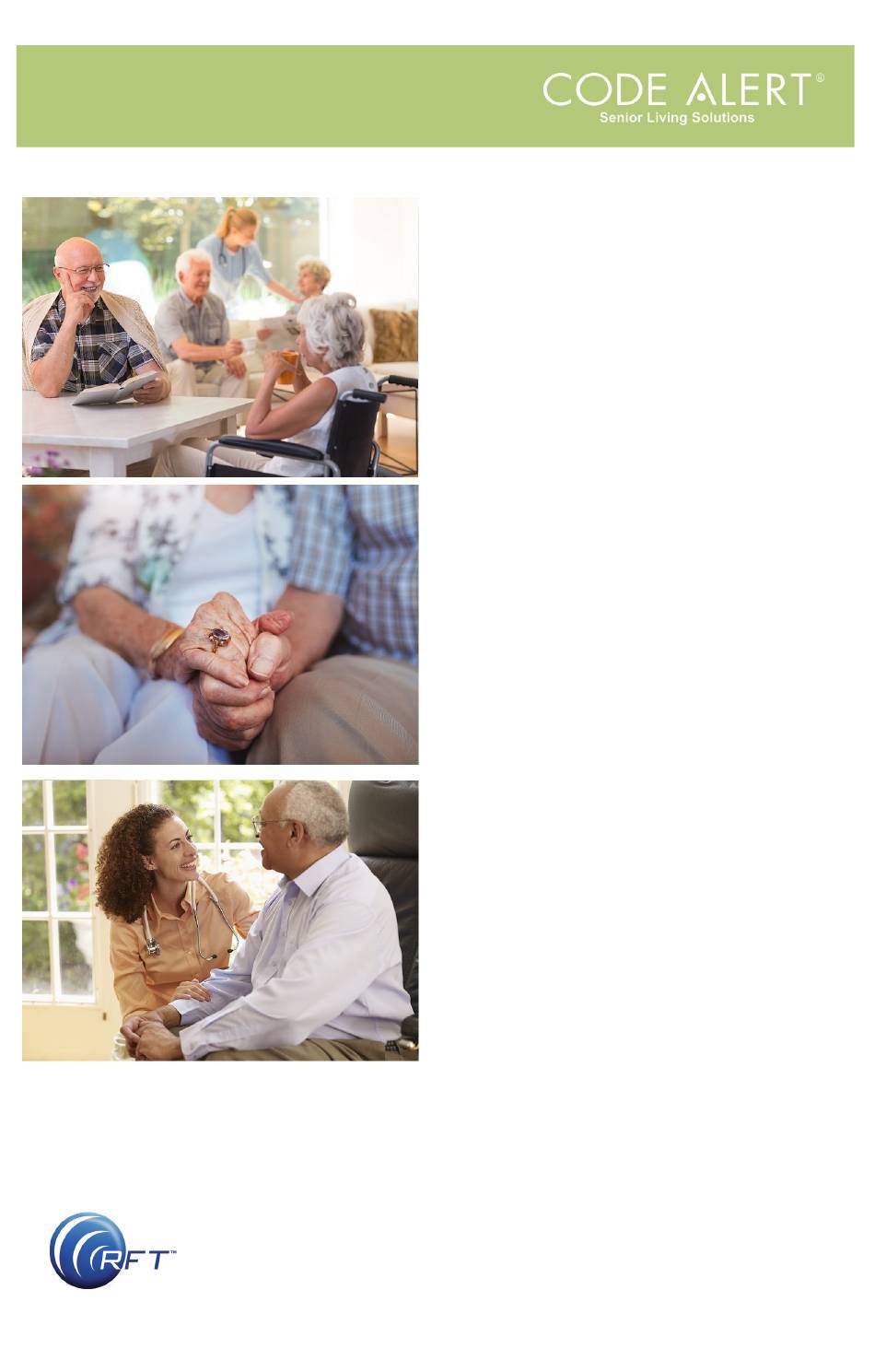

- Page 1 Wander Management Transmitters User Guide...
- Page 2 Compliance This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Contents CONTENTS CONTENTS ................. 1 WARNINGS AND CAUTIONS ............ 3 Warnings ................3 Bio-Incompatibility Notice ............5 Cautions ................6 PREFACE ..................7 Overview ................7 Intended Audience ..............8 Contact Information ............... 8 Technical Support ............8 Customer Care ............... 8 Sales ................ - Page 4 Contents Transmitter Cleaning and Care ........... 19 Reusable Locking Band Cleaning ........ 20 SPECIFICATIONS ..............21 CodeWatch................21 Adult Transmitter ..............23 Banding ................24 Transmitter Tester ............... 25 REVISION HISTORY..............27 Page 2 of 28 Wander Management Transmitters User Guide 0510-1122-J...
-
Page 5: Warnings And Cautions
Warnings and Cautions WARNINGS AND CAUTIONS It is important for your facility to implement and enforce the following WARNINGS and CAUTIONS in order to keep all equipment functioning properly. Disregarding the information and instructions in this document is considered abnormal use and may result in injury or system failure. - Page 6 Warnings and Cautions INSTALLATION AND CONFIGURATION—It is the responsibility of the facility to follow the installation instructions carefully, as outlined in the applicable system guides, and to use the components and supplies specified by RF Technologies, Inc. for all installations. Failure to use the components and supplies specified by RF Technologies, Inc.
-
Page 7: Bio-Incompatibility Notice
Warnings and Cautions SYSTEM MAINTENANCE AND TESTING—It is the responsibility of the facility to establish and facilitate a regular maintenance schedule for your system, as outlined in the applicable system guides. This includes regular inspection, testing, and cleaning. RF Technologies, Inc. recommends monthly maintenance and testing of your system. -
Page 8: Cautions
Warnings and Cautions Cautions DISPOSAL—At the end of their service life the products described in this manual, as well as accessories (i.e. lithium batteries, banding material, disposable pads, etc.), must be disposed of in compliance with all applicable federal, state and local guidelines regulating the disposal of products containing potential environmental contaminants. -
Page 9: Preface
Preface PREFACE Overview The Wander Management Solution monitors doors, elevators, hallways, and stairwells to assist staff in monitoring residents in a facility. The transmitter is placed on the wrist or ankle of the resident. If a transmitter is detected in an Exit Alarm Zone and the door is open, an alarm sounds at the exit. -
Page 10: Intended Audience
Wander Management transmitters. It includes detailed information about banding, care and cleaning, testing the transmitters, alarms and transmitter specifications. Contact For more information about RF Technologies, Inc. products, go to www.rft.com. Information Technical For technical support, contact the Technical Support Support Team at: (800) 669-9946, option 5 or (262) 790-1771 tech@rft.com... -
Page 11: General Information
General Information GENERAL INFORMATION Introduction This chapter provides general information about the transmitters. It includes information on: Transmitter types Warranty dates Banding the transmitters Testing and care Transmitters The transmitters are lightweight and compact. They can be worn in the shower but complete submersion should be avoided. -
Page 12: Transmitter Types
General Information Touchpad Exit Controller Exit Alarm Receivers Adult Transmitter Transmitter There are two types of wander management transmitters: Types CodeWatch Adult Transmitter CodeWatch A CodeWatch is smaller than a transmitter and is placed on the wrist of a resident. -
Page 13: Warranty Expiration Date
General Information Warranty Each transmitter is stamped with a warranty expiration date. This date indicates the date Expiration that RF Technologies’ warranty on that Date transmitter expires. If the warranty period has expired, discard the transmitter immediately. WARNING: Using a transmitter beyond the printed expiration date can result in system failure and/or elopement. - Page 14 General Information To band a transmitter: 1. Insert the band through the slot on one side of the transmitter, from top to bottom. If a resident is prone to 2. Pull the band along the bottom of the cutting off the transmitter, transmitter and insert it through the slot double up on the banding to on the other side of the transmitter, from...
- Page 15 General Information NOTE: To monitor a resident in a wheelchair, attach the transmitter to the seat or back of the chair as the metal on the chair can interfere with the transmitter’s signal. 4. Adjust the band so that the transmitter is in a comfortable position on the resident’s wrist or ankle;...
-
Page 16: Reusable Locking
General Information Reusable The Adult transmitter can be used with a Locking reusable locking band. The material used to make these bands is thicker; therefore making it stronger and more difficult to cut through or stretch. The band comes with a small key that is used to remove the band. - Page 17 General Information 4. Holding the transmitter in place, secure the band around the wrist or the ankle of the resident. 5. Insert the end of the band through the slot on the lock buckle. 6. Adjust the band so that the transmitter is in a comfortable position on the resident’s wrist or ankle;...
- Page 18 General Information To remove an Adult transmitter with a locking band: 1. Insert the key into the lock and turn 1/4 turn to the right until the lock loosens. 2. Remove the Adult transmitter and reusable locking band. Page 16 of 28 Wander Management Transmitters User Guide 0510-1122-J...
-
Page 19: Testing And Care
Testing and Care TESTING AND CARE Transmitter Do not use the transmitter tester on a transmitter with an expiration date that has Testing expired. Results may not be accurate. All steps are mandatory. CAUTION: You must test all transmitters prior to use to verify proper operation. This includes every time that the band is replaced. -
Page 20: Signal Strength
Testing and Care 4. While holding the button in, the indicator light flashes and a tone sounds once per second. 5. Wait for at least 3 flashes of the indicator light and 3 tones from the transmitter tester to verify that the transmitter is functioning correctly. -
Page 21: Transmitter Cleaning And Care
Cleaning For an up-to-date list of approved cleaning and Care solutions, visit: www.rft.com/Resources/Manuals & Specs/ Transmitters/Transmitter Approved Cleaning Solutions CAUTION: Use of non-approved cleaners on transmitters can cause permanent damage to the transmitter and will void any and all warranties. -
Page 22: Reusable Locking Band Cleaning
Testing and Care 3. Allow the cleaner to remain on the transmitter for the amount of time specified by the manufacturer. When using surface disinfectants and decontaminant cleaners, always follow the manufacturer’s instructions. 4. Wipe the transmitter with a clean cloth or towel, and then allow the transmitter to air-dry. -
Page 23: Specifications
Specifications SPECIFICATIONS CodeWatch 2.0 x 1.5 x 0.5 inches Size 1.0 ounces Weight Off-white with printed, color centers: Color flag design, flower design or classic gray 32–104° Fahrenheit (0–40° Celsius) Operating Temperature Thermoplastic Co-polyester Composition 1 year, Lithium Ion Battery Life Rated to IP-67 Water Resistance Depending on model:... - Page 24 Specifications Part Number Description 9000-0144 CodeWatch Transmitter (CWTX), Flag Design, 70/100 1-year, 66 kHz 9000-0145 CodeWatch Transmitter (CWTX), Flag Design, 70/100 1- year, 262 kHz 9000-0146 CodeWatch Transmitter (CWTX), Flag Design, 80/100 1- year, 66 kHz, ID 9000-0147 CodeWatch Transmitter (CWTX), Flag Design, 80/100 1- year, 262 kHz, ID 9000-0148 CodeWatch Transmitter (CWTX), Flower Design,...
-
Page 25: Adult Transmitter
Specifications Adult Transmitter 1.6 x 2.0 x 0.70 inches Size 1.28 ounces Weight Off-white Color 32–104° Fahrenheit (0–40° Celsius) Operating Temperature Polycarbonate Composition Depending upon model: Battery Life 1 year, 1.5 years, 2 years, or 3 years Rated to IP-67 Water Resistance Depending on model: Frequency... -
Page 26: Banding
Specifications Banding Nylon Locking Band 16” x 0.8” (l x w) 12” ankle length Dimensions 9.5” wrist length One-time use, tamper-resistant, With Locking Features latex-free key, latex free Nylon webbing Flexible PVC Nylon webbing Material plastic Blue Gray, Blue, Black Color Green 0.75-inch adjust setting holes;... -
Page 27: Transmitter Tester
Specifications Transmitter Tester 3.8 x 2.4 x 1.5 inches Size 3 ounces Weight 9V battery Battery Part Number Description 9000-1000 Transmitter Tester Wander Management Transmitters User Guide Page 25 of 28 0510-1122-J... - Page 28 Specifications This page intentionally left blank. Page 26 of 28 Wander Management Transmitters User Guide 0510-1122-J...
-
Page 29: Revision History
Revision History REVISION HISTORY Revision Change Release Changed “Wandering Management” to “Wander Management” Added list of approved cleaning products Combined 0510-1033 into this document Updated format, updated warranty expiration date section, and updated specifications section Fixed minor document bugs Updated approved cleaners section Updated format and logos Removed Alerts section (information contained in the software reference guides) - Page 30 Revision History This page intentionally left blank. Page 28 of 28 Wander Management Transmitters User Guide 0510-1122-J...
- Page 32 0510-1122-J 3125 North 126th Street, Brookfield, WI 53005 Phone 800.669.9946 fax 262.790.1784 Release Date: 11/2018 www.rft.com...
