Summary of Contents for RFT Safe Place Baby Check

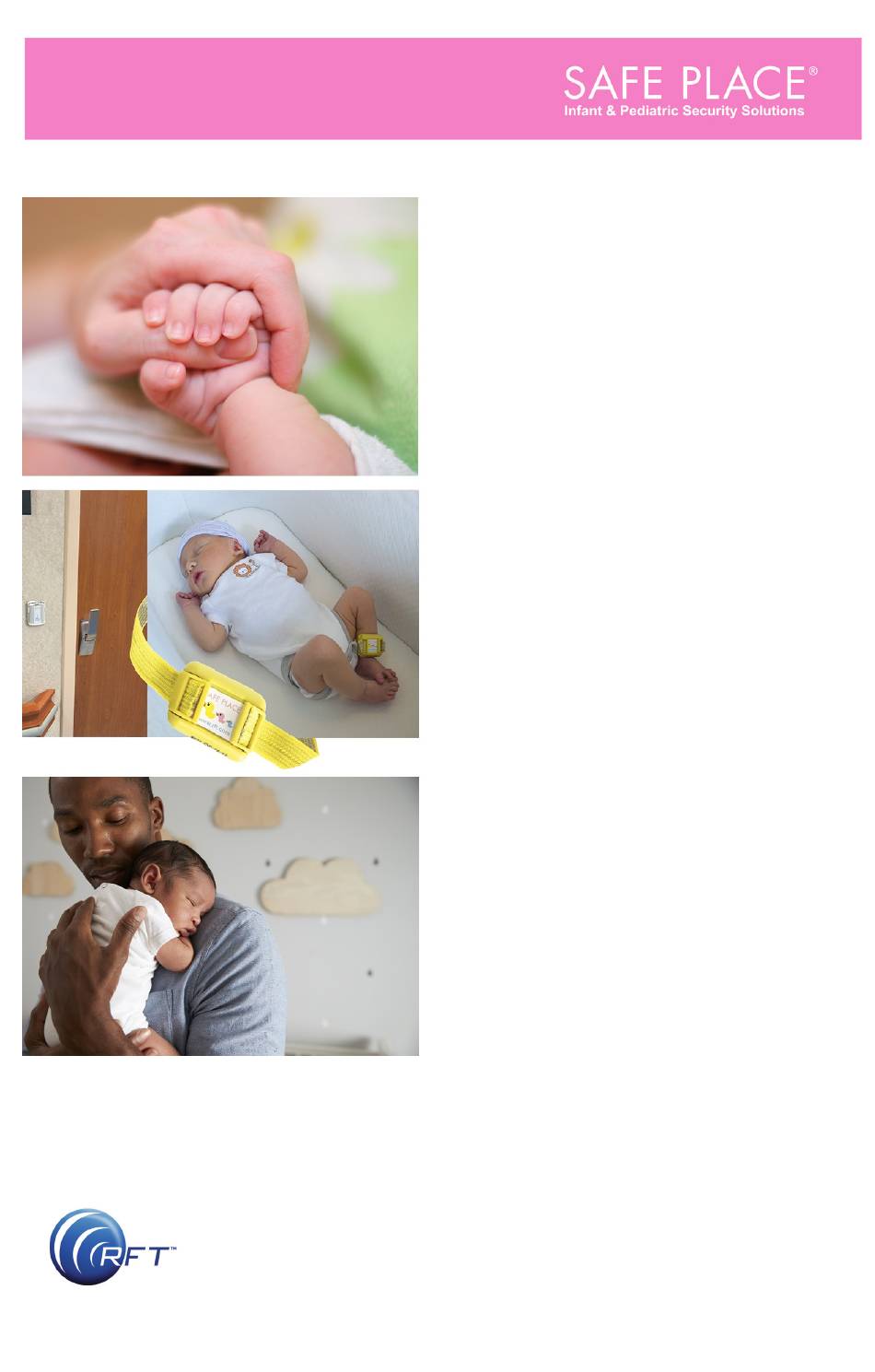

  • Page 1 Baby Check Transmitters User Guide...
  • Page 2 Compliance This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3: Table Of Contents

    Contents CONTENTS CONTENTS ................. 1 WARNINGS AND CAUTIONS ............ 3 Warnings ................3 Bio-Incompatibility Notice ............5 Cautions ................6 PREFACE ..................7 Overview ................7 Intended Audience ..............7 Contact Information ............... 8 Technical Support ............8 Customer Care ............... 8 Sales ................
  • Page 4 Contents Transmitter Cleaning and Care ........... 19 Testing ................. 20 Baby Check Transmitter ..........21 Transmitter Clearing Device ......... 21 SPECIFICATIONS ..............23 Baby Check Transmitter ............23 Transmitter Clearing Device ..........24 Transmitter Tester ............... 25 REVISION HISTORY..............27 Page 2 of 28 Baby Check Transmitters User Guide 0510-1124-I...
  • Page 5: Warnings And Cautions

    Warnings and Cautions WARNINGS AND CAUTIONS It is important for your facility to implement and enforce the following WARNINGS and CAUTIONS in order to keep all equipment functioning properly. Disregarding the information and instructions in this document is considered abnormal use and may result in injury or system failure.
  • Page 6 Warnings and Cautions INSTALLATION AND CONFIGURATION—It is the responsibility of the facility to follow the installation instructions carefully, as outlined in the applicable system guides, and to use the components and supplies specified by RF Technologies, Inc. for all installations. Failure to use the components and supplies specified by RF Technologies, Inc.
  • Page 7: Bio-Incompatibility Notice

    Warnings and Cautions SYSTEM MAINTENANCE AND TESTING—It is the responsibility of the facility to establish and facilitate a regular maintenance schedule for your system, as outlined in the applicable system guides. This includes regular inspection, testing, and cleaning. RF Technologies, Inc. recommends monthly maintenance and testing of your system.
  • Page 8: Cautions

    Warnings and Cautions Cautions DISPOSAL—At the end of their service life the products described in this manual, as well as accessories (i.e. lithium batteries, banding material, disposable pads, etc.), must be disposed of in compliance with all applicable federal, state and local guidelines regulating the disposal of products containing potential environmental contaminants.
  • Page 9: Preface

    Preface PREFACE Overview The Baby Check transmitter is a component of the 9450 System which monitors doors, elevators, hallways, and stairwells to assist staff in monitoring patients and assets in a facility. When used with Safe Place Infant transmitters, the Baby Check transmitters reduce the risk of mother-baby mismatches and provides an extra layer of protection to ensure the correct baby is taken to the right...
  • Page 10: Contact Information

    Preface Always refer to the Software User Guide for complete instructions and warnings. Contact For more information about RF Technologies, Inc. products, go to www.rft.com. Information Technical For technical support, contact the Technical Support Support Team at: (800) 669-9946, option 5 or (262) 790-1771 tech@rft.com...
  • Page 11: General Information

    General Information GENERAL INFORMATION Introduction This chapter provides general information about the transmitters. It includes: Using the transmitters  Warranty dates  Transmitter testing and care  Baby The Baby Check transmitter is used in conjunction with the Infant transmitter (see Check Safe Place Transmitter User guide for Transmitter...
  • Page 12: Warranty Expiration Date

    General Information WARNING: The Baby Check transmitter does not link to an Infant transmitter when the Baby Check transmitter’s battery is low. To verify low battery, press the button. If the battery voltage is deemed too low for reliable operation, the red LED will blink five times.
  • Page 13: Mounting

    General Information Mounting The Baby Check transmitter resides outside the Mother’s room near the doorway and is mounted using a wall bracket. Mounting To mount the transmitter using screws: with Screws 1. Determine a desired location near the doorway. The mounting height should be no higher than 44 inches from the floor.
  • Page 14: Linking

    General Information Linking To link a Baby Check transmitter to an Infant transmitter: 1. When ready to Link the Baby Check transmitter with the Infant transmitter bring the Baby Check transmitter 10-12 Keep 24 inches of separation inches from the Infant transmitter and between the Baby Check press the button on the front of the Baby transmitter and any infant...
  • Page 15: Matching

    General Information Matching To determine if a Match exists between a Baby Check transmitter and an Infant transmitter: 1. When ready to verify a Match between the Baby Check transmitter and the Infant transmitter, bring the Baby Check transmitter 10-12 inches from the Infant transmitter and press the button on the front of the Baby Check transmitter.
  • Page 16: Discharge

    General Information Discharge NOTE: A Infant / Baby Check link will be required if “Confirm Discharge” and “Require Mom/Infant match before discharge” are both enabled during configuration (refer to the Software Administrator Guide for your system). To discharge a Baby Check and Infant transmitter: 1.
  • Page 17: Led Light Guidelines

    General Information LED Light The LED lights and audible beeps on the transmitter signal various meanings. These Guidelines meanings are described in detail throughout this document. The following guidelines apply to the Baby Check transmitters: Light Flash Meaning How to Respond 1 Amber The button on the The amber light will blink once...
  • Page 18 Transmitter can no longer function reliably at this point Discard transmitter and call RFT Tech Support for replacement 5 Red Baby Check Verify low battery by pressing Transmitter indicates button. If battery voltage is...
  • Page 19: Transmitter Clearing Device

    General Information Transmitter The Transmitter Clearing Device is lightweight and compact. It is water Clearing resistant; however, complete submersion Device should be avoided. SUBMERSION—Prolonged submersion may result in equipment and/or system failure and voids any and all Product Warranties. The Transmitter Clearing Device is available with a two year life expectancy.
  • Page 20 General Information This page intentionally left blank. Page 18 of 28 Baby Check Transmitters User Guide 0510-1124-I...
  • Page 21: Testing And Care

    Cleaning For an up-to-date list of approved cleaning and Care solutions, visit: www.rft.com/Resources/Manuals & Specs/ Transmitters/Transmitter Approved Cleaning Solutions CAUTION: Use of non-approved cleaners on transmitters can cause permanent damage to the transmitter and the piercing contacts and will void any and all warranties.
  • Page 22: Testing

    Testing and Care 2. Allow the cleaner to remain on the transmitter for the amount of time specified by the manufacturer. When NOTE: In order to avoid using surface disinfectants and nuisance alarms, cleaning decontaminant cleaners, always follow procedures must be the manufacturer’s instructions.
  • Page 23: Baby Check Transmitter

    Testing and Care Baby The following testing is required for all Check transmitters in use. All steps are mandatory. Transmitter 1. Test the operation of transmitters by perform a match using the Baby Check transmitter and a working Infant transmitter. 2.
  • Page 24 Testing and Care 4. While holding the button in, the indicator light flashes and a tone sounds once per second. 5. Wait for at least 3 flashes of the indicator light and 3 tones from the transmitter tester to verify that the clearing device is functioning correctly.
  • Page 25: Specifications

    Specifications SPECIFICATIONS Baby Check Transmitter 2.7 x 2.0 x 0.65 inches (without bracket) Size 2.8 x 2.2 x 0.88 inches (with bracket) 1.8 ounces Weight Gray Color 32–140° Farenheit Operating Temperature 95% non-condensing, relative humidity -40–140° Farenheit Storage Temperature Latex Free ABS Plastic Composition 2 year, Lithium Ion;...
  • Page 26: Transmitter Clearing Device

    Specifications Transmitter Clearing Device 1.6 x 2.0 x 0.70 inches Size 1.28 ounces Weight Off-white Color 32–104° Farenheit (0–40° Celsius) Operating Temperature Polycarbonate / ABS Blend Composition 2 years Battery Life Rated to IP-67 Water Resistance Depending on model: Frequency 66 KHz 262 KHz FCC, Part 15b...
  • Page 27: Transmitter Tester

    Specifications Transmitter Tester 3.8 x 2.4 x 1.5 inches Size 3 ounces Weight 9V battery Battery Part Number Description 9450-0050 Transmitter Tester Baby Check Transmitters User Guide Page 25 of 28 0510-1124-I...
  • Page 28 Specifications This page intentionally left blank. Page 26 of 28 Baby Check Transmitters User Guide 0510-1124-I...
  • Page 29: Revision History

    Revision History REVISION HISTORY Revision Change Release Updated to include LED guidelines Updated mounting height requirements Added list of alarms and approved cleaning products Updated format, updated warranty expiration date section, and updated specifications section Fixed minor document bugs Updated approved cleaners section Updated format and logos Removed Alerts section (information contained in the software reference guides)
  • Page 30 Revision History This page intentionally left blank. Page 28 of 28 Baby Check Transmitters User Guide 0510-1124-I...
  • Page 32 0510-1124-I 3125 North 126th Street, Brookfield, WI 53005 Phone 800.669.9946 fax 262.790.1784 Release Date: 11/2018 www.rft.com...
