ArmorBlock LP2 16 Sourcing
Output Module
(Cat. No. 1792D-OBT16LP)

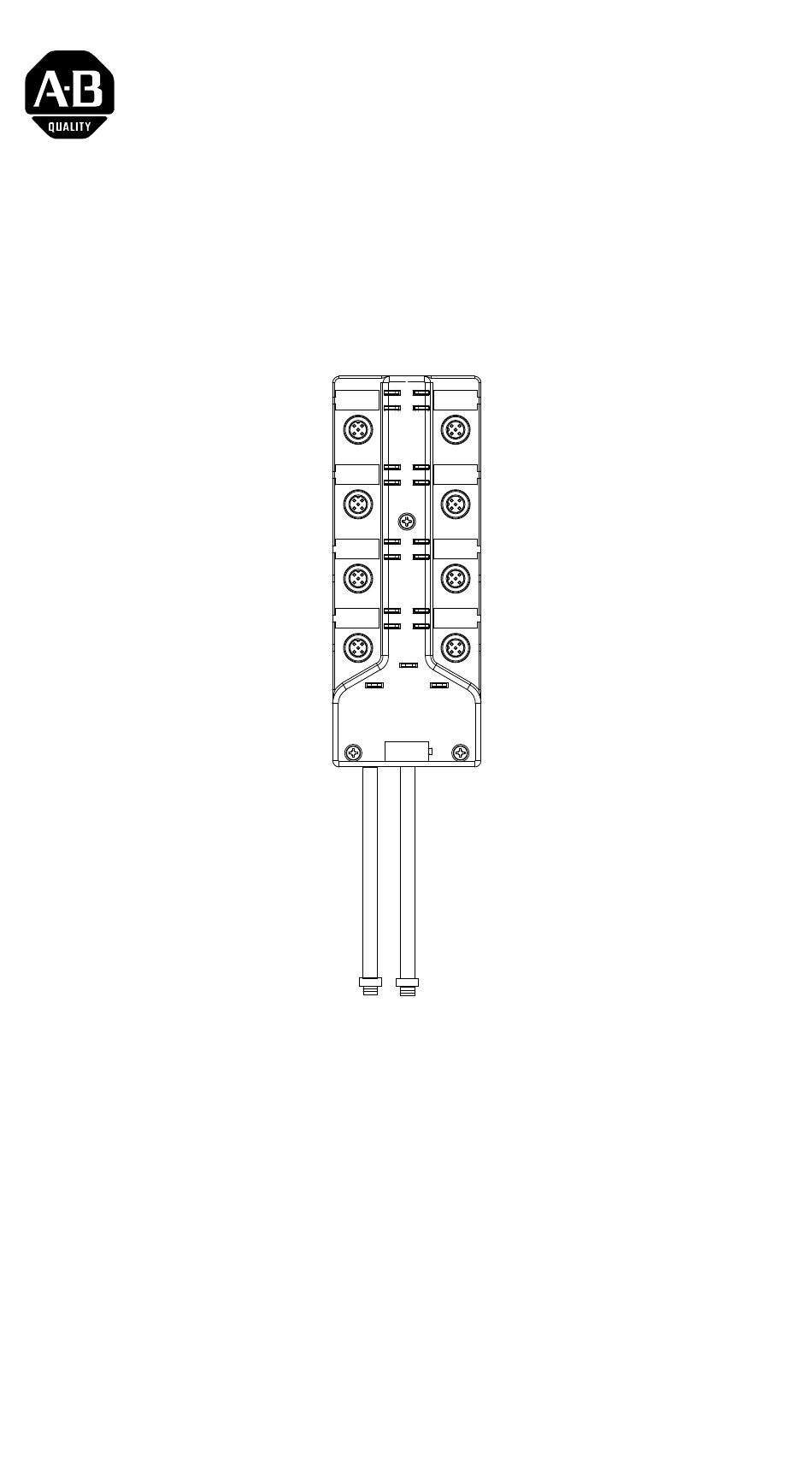

This ArmorBlock LP2™ I/O module (Cat. No. 1792D-0BT16LP) is a
stand-alone 24V dc I/O product which communicates via a DeviceNet™
network. The sealed housing of this module requires no enclosure.
This model has 16 sourcing outputs accessed through Y splitter cables.
Outputs are self protected 24V dc and provide up to 0.3A each.
Installation Instructions
O-0
O-15
O-1
O-14
O-2
O-13
O-3
O-12
O-4
O-11
O-5
O-10
O-6
O-9
O-7
O-8
Auxiliary Power
Network Status
Module Status
42049
1792D-5.49 - August 1999
