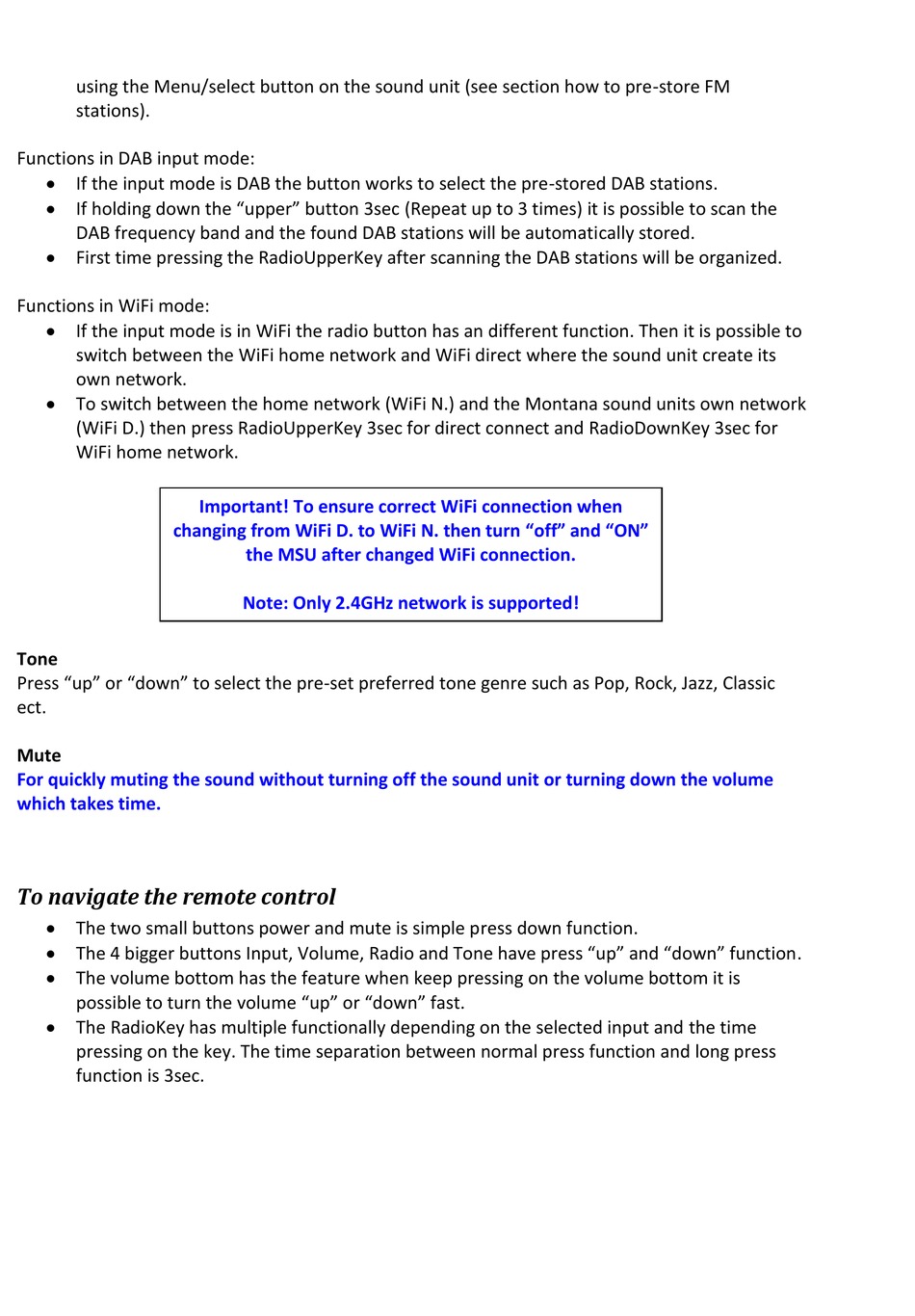

using the Menu/select button on the sound unit (see section how to pre-store FM
stations).

Functions in DAB input mode:

 If the input mode is DAB the button works to select the pre-stored DAB stations.
 If holding down the "upper" button 3sec (Repeat up to 3 times) it is possible to scan the
DAB frequency band and the found DAB stations will be automatically stored.
 First time pressing the RadioUpperKey after scanning the DAB stations will be organized.

Functions in WiFi mode:

 If the input mode is in WiFi the radio button has an different function. Then it is possible to
switch between the WiFi home network and WiFi direct where the sound unit create its
own network.
 To switch between the home network (WiFi N.) and the Montana sound units own network
(WiFi D.) then press RadioUpperKey 3sec for direct connect and RadioDownKey 3sec for
WiFi home network.

Tone

Press "up" or "down" to select the pre-set preferred tone genre such as Pop, Rock, Jazz, Classic
ect.

Mute

For quickly muting the sound without turning off the sound unit or turning down the volume
which takes time.
To navigate the remote control
 The two small buttons power and mute is simple press down function.
 The 4 bigger buttons Input, Volume, Radio and Tone have press "up" and "down" function.
 The volume bottom has the feature when keep pressing on the volume bottom it is
possible to turn the volume "up" or "down" fast.
 The RadioKey has multiple functionally depending on the selected input and the time
pressing on the key. The time separation between normal press function and long press
function is 3sec.
Important! To ensure correct WiFi connection when
changing from WiFi D. to WiFi N. then turn "off" and "ON"
the MSU after changed WiFi connection.
Note: Only 2.4GHz network is supported!
