PointSource Montana Owner's Manual

Sound unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's manual
English - Version 1.7 - November 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Montana and is the answer not in the manual?

Questions and answers

Summary of Contents for PointSource Montana

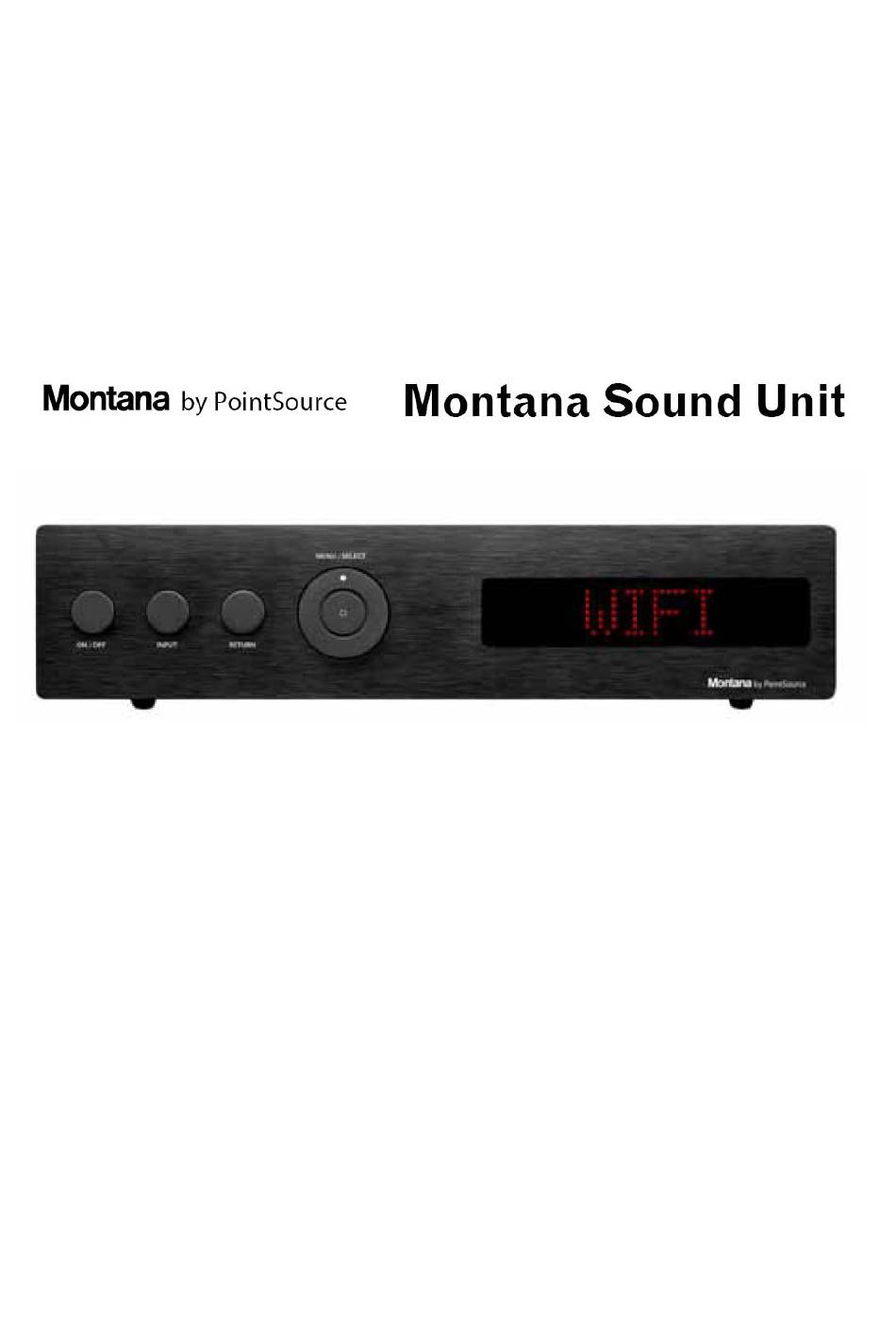

  • Page 1 Owner’s manual English - Version 1.7 - November 2013...

  • Page 2: Safety Instructions

    Safety Instructions Be sure all the safety and operation instructions should be read before the Montana Sound Unit is connected to the main supply and operated. This symbol, alerts the user to the presence of uninsulated dangerours voltage inside the enclosure – voltage that may be sufficient to constitute a risk of shock.
  • Page 3 7) Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. 8) Power Sources: The product should be connected to a power supply only of the type described in the operating instructions or as marked on the product.

  • Page 4: Ce Declaration Of Conformity

     WARNING  Do not ingest battery, chemical Burn Hazard 19) The remote control supplied with this product a coin/Button cell battery. If the coin/Button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
  • Page 5 Acknowledgements FCC STATEMENT This device complies with part 15 of the FCC rules and Industry Canada Licence-exempt RSS standard(s). Operation is subject to the following to conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Made for · iPhone 5S · iPhone 5C · iPhone 5 · iPhone 4S · iPhone 4 · iPad Air · iPad (4th generation) · iPad (3rd generation) · iPad 2 · iPad mini with Retina display · iPad mini ·...
  • Page 7 interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 8 This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
  • Page 9 Please control that all listed items are in the package and inspect they are all intact. 1) 1x Montana Sound Unit 2) 1x Remote Control 3) 1x Battery (CR2025 3V Lithium) 4) 1x AC Power Cord 5) 2x WiFi antennas 6) 1x DAB+/FM antenna 7) 1x Owner’s Manual...

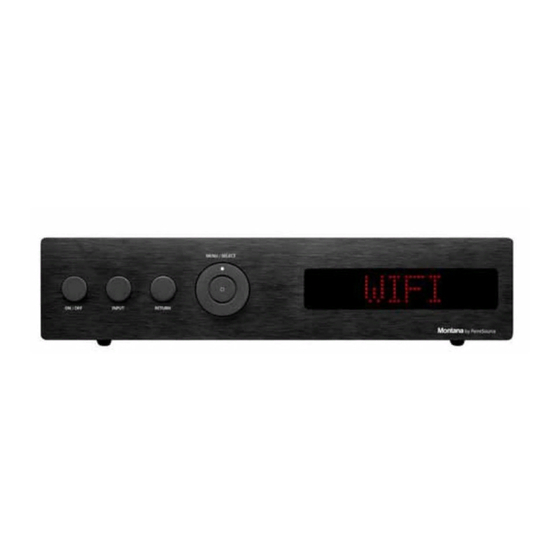

  • Page 10 Overview of front and rear panel Front panal: 1) Power on/off 2) Input select 3) Return (when using the menu/select wheel) 4) Menu/select 5) Display Rear Panal: 1) AC Power cord connection 2) LAN network connector 3) USB2.0 connector (Share, dock, 5V for charging iPad) 4) Optical (Digital)

  • Page 11: Remote Control

    5) Coaxial (Digital) 6) Mini jack connector (AUX1 analog) 7) Phone connectors Red&White (AUX2 analog) 8) Subwoofer Pre-out (purple Phone connector) 9) Left/Right Speaker terminals 10) 2x Antenna connectors for WiFi 11) Antenna connector for DAB and FM antenna 12) HDMI 3x input connectors 13) HDMI 1x Output connectors Remote Control The remote control has 6 buttons.
  • Page 12 To navigate the remote control The remote control contains only 6 buttons, 2 small with only single press function and 4 bigger buttons with up and down function. Power The first red power button is used to turn on and off the sound unit. Functions in Sleep and CEC mode ...
  • Page 13 WiFi home network and WiFi direct where the sound unit create its own network.  To switch between the home network (WiFi N.) and the Montana sound units own network (WiFi D.) then press RadioUpperKey 3sec for direct connect and RadioDownKey 3sec for WiFi home network.
  • Page 14 Radio Up 3 seconds Radio Down 3 seconds...
  • Page 15 Change battery in the remote control  Press in the bottom of the remote control and release to “click out” the battery holder  Grap the battery holder and take it out of the remote control  Remove the used battery ...

  • Page 16: Setup Menus

    Montana Sound Unit Menu Structure Setup Menus How to navigate the setup menus The main menu contains of 6 different headers Tuner Main menu Sub menu For storing FM tuner frequencies into presets which can be selected from the remote Tuner control.
  • Page 17  Use the ‘selection wheel’ to move around in the menus.  Use the ‘select’ button in the middle of the ‘Menu/select wheel’ to enter submenus.  Use the ‘selection wheel’ to change settings. The changes take effect immediately.  Use the ‘return’ button on the left of the Menu/select button to exit submenus. Wheel Return Select...

  • Page 18: Tone Control

    Tone Genre An equaliser is used to change the tone of NEUTRAL the sound. The MSU has 7 equalizer pre-sets named after different music genre. These are  Neutral (Default)  Pop ROCK  Rock  Classic  Jazz Tone Genre CLASSIC ...

  • Page 19: Speaker Setup

    Speaker Setup Crossover When adding a subwoofer it is necessary to set the crossover frequency between front speakers “left” and “Right” and the FULL BW- Crossover subwoofer. The crossover can be adjusted 220Hz from 40Hz to 220Hz. This will both control Left +/- 10dB the subwoofer high frequency cut-off and the...

  • Page 20: System Setup

    System Setup HDMI Sleep OFF/ON Under the HDMI setting CEC and ARC can be switched on/off. OFF/ON HDMI Consumer Electronics Control (CEC) is an OFF/ON HDMI feature which allows one device to be controlled from another device. If the MSU is 30 min connected to a TV which supports CEC then Power Auto...
  • Page 21 password. Setting up the MSU to the WiFi can be done in various ways:  Login Share – Select ”Login Share” in the sound unit menu. Then take you portable device (mobile phone) which already contain the WiFi network data you wish to share with the sound unit.
  • Page 22 Setup and use of the Radio (FM and DAB) Scan DAB stations Follow the instructions below to scan for DAB stations 1. Change input to “DAB” 2. Press and hold Radio Up on the remote for 3 seconds. The MSU will scan for all DAB stations available (Memory Max 30 stations) 3.
  • Page 23 To listen to a radio station which is not stored as a preset, hold “Radio Up” or “Radio Down” for three seconds. The MSU will scan and find the next radio station. Skip the Store-option. Press and hold 3 seconds again to find another station...
  • Page 24 Specifications for Montana Sound Unit: Dimensions Montana Sound Unit 2.0 Sound Unit Dimensions (WxHxD) 295x71.3x235 (Height incl. feet) Net Weight 3.8kg Amplifier Specifications Rated Power at 4 ohm 100W Signal / Noise Ratio better than -74.5dB Total Harmonic Distortion (1W/1kHz) 0.045%...
  • Page 25 Appendix 1: WiFi Setup methods Share: In Apple devices a feature is incorporated which allows for sharing the information for connecting to the WiFi home network to other devices. 1. Connect a WiFi-connected iOS device (iPad, iPhone) to the USB input on the MSU through an Apple USB Cable (not supplied).
  • Page 26 4. Complete the process by pressing return bottom to come back to the mail menu and turn off the sound unit and on again. 5. The sound unit is now connected to your home network and you can stream and play music from your phone or tablet or steam music from the internet.
  • Page 27 WiFi Protected Setup (WPS) Your home network router must have a WPS button in order for this to work. To determine whether your router has WPS consult the manual of the router or your internet provider in case the router was provided by them. 1.
  • Page 28 Setup WiFi from the Direct Network The MSU can create its own network to which devices can connect to allow direct streaming music without use of a home network. This can be used to configure the MSU to connect to the home network.
  • Page 29 Note: The name shown in AirPlay and DLNA can be changed here too. Write the desired name under “Airplay Device Name” and click apply next to. 7. Recall the Montana Webpage to change “Wireless LAN Settings” 8. Under the “Wireless LAN Settings” choose your home network name and enter the password below 9.
  • Page 30 10. When “WiFi N.” is displayed, complete the process by turn Off and On again the sound unit . The sound unit is now connected to your home network and you can stream and play music from your phone or tablet or steam music from the internet.
  • Page 31 Appemdix 2. Connections Connect Speakers Connect a set of loudspeakers as shown below. An active subwoofer can be added and should be connected to the purple connection on the MSU into the input on the subwoofer. Right Left Line in / Input...
  • Page 32 Connecting the MSU to other components HDMI OUT: Connect the MSU to a TV through HDMI OUT with an HDMI cable. If your television supports ARC (Audio Return Channel) then connect the HDMI Cable into the HDMI port which says ARC on the TV.
