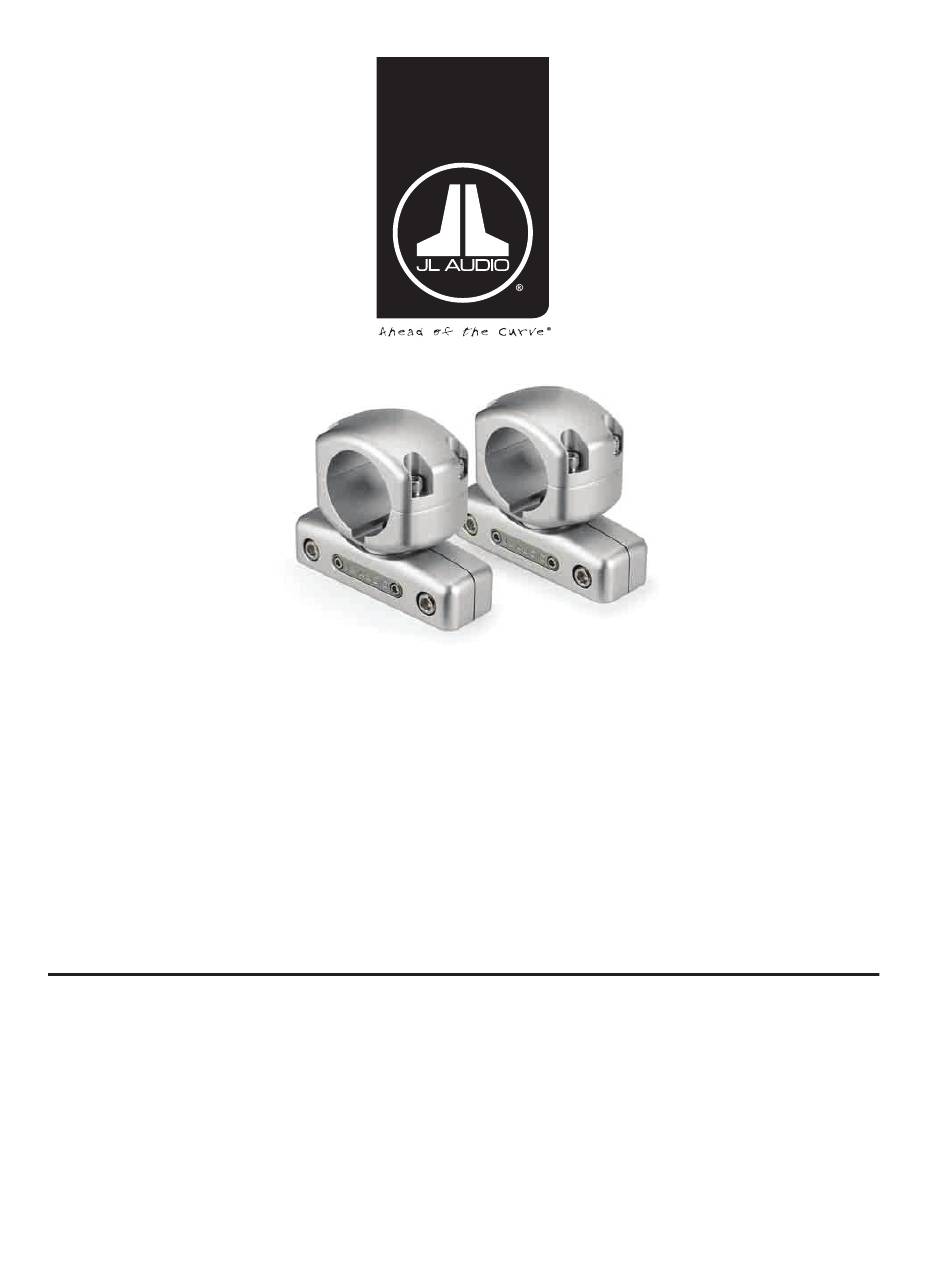

- Page 1 Installation Instructions for M-SWMCPv3-1.315 • M-SWMCPv3-1.660 • M-SWMCPv3-1.900 M-SWMCPv3-2.000 • M-SWMCPv3-2.250 M-SWMCPv3-2.375 • M-SWMCPv3-2.500 PI PE M O U N T I N G FIX T U R E S (S W I V EL ) FOR ETXv3 ENCLOSED SPEAKER SYSTEMS...
- Page 2 IMPORTANT WARNING IMPORTANT: Swivel mounting fixtures should only be WARNING: Do not mount enclosures to a horizontal attached to horizontal pipes. ETXv3 enclosures should pipe in any position other than directly above or directly only be mounted directly above (12 O’ c lock position) or below.
- Page 3 128.5 205.5 Be sure the indicated stopping points are on opposite In applications that require the logo to be inverted, sides of the fixture as shown. The enclosure can rotate remove the two #8 -32 x 3/8” machine screws and lock up to 205.5 degrees in the clockwise direction, and 128.5 washers.
- Page 4 Adjust the angle of the fixture until level, mark the For applications where the cable cannot be routed location for the speaker cable hole. Remove the fixture through the pipe, the cable can be passed through one of assembly, and drill a 1/2” hole on the mark. the openings on the side of the fixture.
- Page 5 Have a helper support the enclosure during this step. Slide the excess speaker cable and the butt connectors Use the supplied butt connectors to connect the red (+) into the opening in the pipe as you raise the enclosure to and black (-) speaker cable exiting the ETXv3 enclosure flush the fixture to the pipe.
- Page 6 Remove adhesive backing and install the JL Audio logo If a different speaker angle is desired, remove the speaker badge (Sport Grille Models Only). mounting screws and washers. Rotate the speaker to the desired angle. Reinstall the Rotate the enclosure to the desired angle, install the speaker and speaker mounting screws and washers.
- Page 7 For best adhesion, it is recommended to clean the inside Align the aluminum logo cap to the desired angle of of the aluminum cap with acetone (not included), prior rotation, and press it onto the back of the enclosure. to attaching it to the speaker enclosure. Apply a circular Apply masking tape (not included) to hold the cap in bead of silicone adhesive (included) to the inside of the place until the silicone cures (at least 24 hours).
- Page 8 . j l a u d i o . c o m JL Audio® and the JL Audio logo are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
