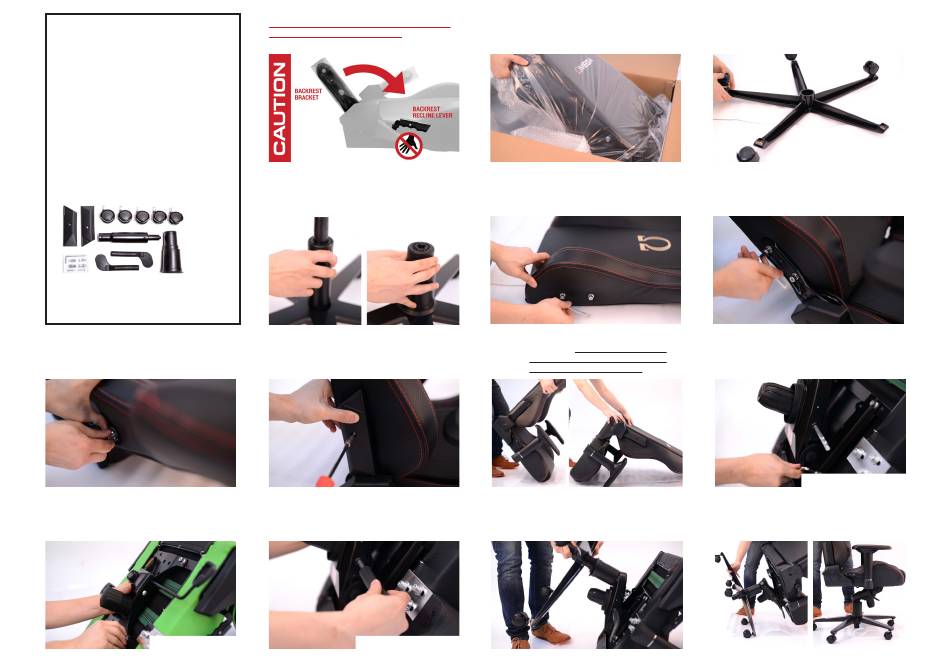

Secret Lab THRONE V2 Series Assembly Manual page 2

PACKAGE CONTENTS
1x Chair Backrest
1x Chair Seatbase
1x Wheelbase
2x Armrests
1x Tilt Mechanism
1x Toolbox
TOOLBOX CONTENTS
5x Casters (Wheels)
1x Hydraulics Piston
2x Side Covers
2x Lever Handles (For multi-tilt only)
4x M8 Screws
8x Spring Washers
2x Phillips (Cross) Screws
1x Allen Key
YOU WILL ALSO NEED
1x Phillips (Cross) Head Screwdriver
6
Push the bracket on the left side inwards
to meet the backrest, and secure using the
M8 screws. Tighten all 4 screws fully using
the Allen key.
9
Attach the full-tilt mechanism to the
b bottom of the seatbase using the 4 M8
screws. Ensure the mechanism is in
the correct direction. Skip to step 11.
FOR THRONE V2
CAUTION: Do not adjust the recline lever until the
backrest has been securely installed (Step 6). Doing
so may cause the backrest bracket to spring forward.
3
Turn the wheelbase the right side up and
insert the hydraulics piston. Slide the
hydraulics sleeve over the piston.
7
Attach the side covers with the Phillips
screws using a Phillips (cross) head
screwdriver. Take care not to over-tighten.
10
Line up the grooves inside the lever
handles with the notches and insert
firmly.
FOR OMEGA / TITAN
1
Remove all parts from the box, while taking
care to avoid the backrest recline lever and
backrest bracket. Check if there are any
missing parts.
4
Remove the 4 M8 screws that are pre-
installed in the backrest.
8
Lift the chair and gently set it facing
downwards. If you are assembling an
OMEGA or TITAN, proceed to Step 9a.
For Throne V2, skip to Step 9b.
11
Lift up the assembled wheelbase and
insert the hydraulics piston into the
socket of the tilt mechanism.
2
Lay out the foam sheets found in the
packaging on a flat surface. Place the
wheelbase upside down on top of the
foam and insert the 5 casters.
5
Align the backrest with the bracket on the
right side of the chair. Attach the backrest
using the M8 screws.
9
Attach the multi-tilt mechanism to the
a bottom of the seatbase using the 4 M8
screws. Ensure the mechanism is in the
correct direction. Proceed to Step 10.
FOR OMEGA / TITAN
12
Carefully tilt the chair upwards while
holding the wheelbase and position
it upright. Congratulations! You've
assembled your Secretlab chair.
