S&B Filters 75-5106 Installation Instructions Manual

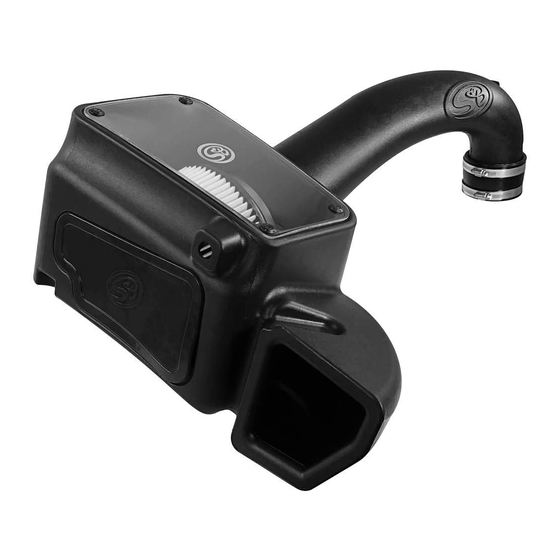

Cold air intake 2009 - 2017 ram 1500/2500/3500 5.7l hemi
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS:
P/N: 75-5106 / 75-5106D

Advertisement

loading
Need help?

Need help?

Do you have a question about the 75-5106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for S&B Filters 75-5106

Summary of Contents for S&B Filters 75-5106

  • Page 1 INSTALLATION INSTRUCTIONS: P/N: 75-5106 / 75-5106D...

  • Page 2: Vehicle Application

    Thank You! for purchasing your new S&B Filters intake kit. If at any time you need additional assistance with installation or have any other questions or comments, feel free to call our customer service department. We hope you enjoy your new S&B Filters product and thank you for your continued support.
  • Page 3 RELATED ITEMS FOR YOUR PURCHASE Filter Wrap Replacement Replacement Precision II: Cotton Filter Dry Filter Cleaning & Oil Kit SKU# WF-1034 SKU# KF-1056 SKU# KF-1056D SKU# 88-0008 Air Box Plug Testing Stock air boxes are a significant contributor to poor air flow which is why S&B designs custom air boxes with secondary and/or enlarged openings.

  • Page 4: Exploded View

    EXPLODED VIEW:...
  • Page 5 PARTS LIST: 75-5106/75-5106D ITEM DESCRIPTION PART NUMBER HARDWARE PACKS AIR BOX AL1309B-00 HP1507-00 AG1008-00 INTAKE TUBE AL1309-00 HP1295-00 AIR FILTER KF-1056 AI2005-00 AI2006-00 MOUNTING BRACKET AI2009-00 HP1246-00 CLEAR LID AI2008-00 AI1068-00 HOSE CLAMP, #104 AG1012-00 AI1074-00 AI1073-00 HOSE CLAMP, #56...

  • Page 6: Installation Steps

    INSTALLATION STEPS: With the ignition switched off and the parking brake set, disconnect the Disconnect the electrical harness at the Air Temperature negative battery cable on the driver side. Note: Failure to disconnect Sensor. the battery may cause the CEL to illuminate upon completion of the installation and subsequent operation.
  • Page 7 Lift up to remove the engine cover from the vehicle. If Remove both the CCV hose and sleeve from the engine necessary remove the oil cap if it gets in the way. side. CCV HOSE SLEEVE Remove the front passenger side wheel liner. There is a combination of screws and push pins that needs to be removed to take out the wheel liner.
  • Page 8 INSTALLATION STEPS: Install the Tube Seal onto the Air Box (A). Install the Grommet onto the Air Box (A). Install the Mounting Bracket onto the Air Box with Determine if you want to install the Box Plug onto the Air the M6 Flange Bolt (S).
  • Page 9 Place the Air Box into the vehicle. Line up the fender Install the M8 Screw and Washer through the inlet and mounting holes. Mounting Bracket to secure the Air Box (A). Do not fully tighten yet. Tool Required: 13mm Socket/Wrench Install the screw removed in Step 10 to secure the Air Box If needed, move the AC line away from the Air Box and line...

  • Page 10: Installation Notes

    INSTALLATION NOTES: Install the Coupler and #56 Hose Clamps onto the Insert the CCV Hose into the CCV port on the engine throttle body. Tighten the hose clamp on the throttle body side. Zip Tie the CCV Hose to the fuel line on top of the side only.
  • Page 11 INSTALLATION NOTES: Install the Lid Seal into the grooves on top of the Air Peel off the protective covering on the Clear Lid (E). Box (A). Reconnect the electrical connection back into the IAT Place the Clear Lid on top of the Intake Box sensor.

This manual is also suitable for:

75-5106d
