Related Manuals for Sensafe Chlorine eXact EZ
Summary of Contents for Sensafe Chlorine eXact EZ

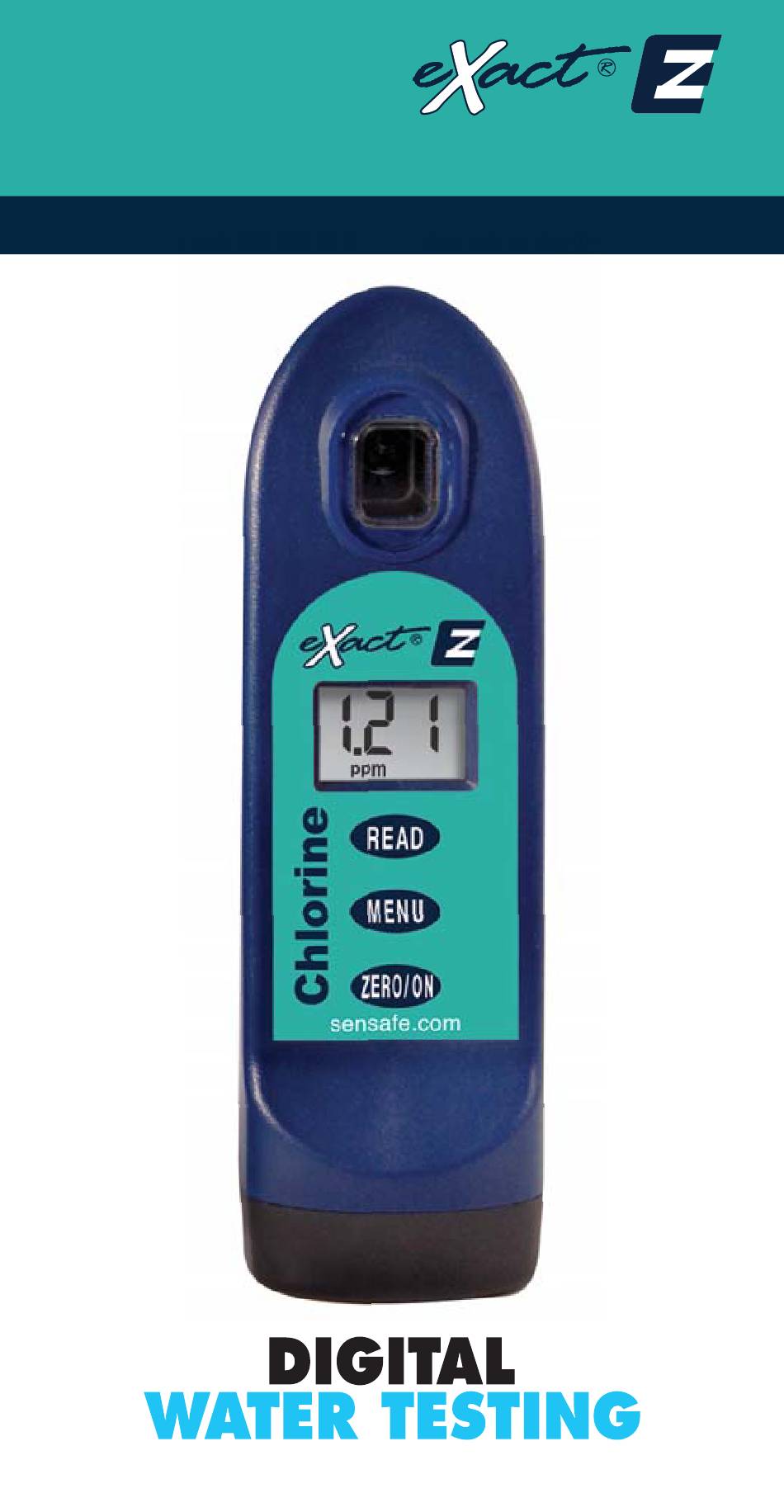

- Page 1 Chlorine ADVANCED PHOTOMETER SYSTEM DIGITAL ACCURACY FOR RELIABLE WATER CARE QUICK START GUIDE...
-
Page 2: Table Of Contents
........Chlorine eXact EZ Accuracy . -
Page 3: Chlorine Exact ® Ez Overview
CHLORINE EXACT EZ OVERVIEW ® YOUR NEW CHLORINE EXACT EZ PHOTOMETER IS IDEAL FOR TESTING AND MAINTAINING YOUR DRINKING WATER AND FOOD PROCESS WATER. SAMPLE CELL - 4 ML LIGHT SOURCE Built-in plastic 4mL cell Uses 525nm for collecting your water... -
Page 4: Fill, Dip, Read Free Chlorine
FILL, DIP, READ FREE CHLORINE POWER ON PHOTOMETER Press the button to power on the Chlorine eXact ® FILL CELL Rinse the cell 3 times with the water sample to be tested and FILL to the top to begin test. Use the included cleaning brush to clean the cell after each test to achieve the most accurate result. -
Page 5: Free Chlorine
After testing is complete, rinse the sample cell immediately. If result is 6.0 or greater, repeat steps 5-7 above using same sample and a fresh strip. Do not empty the CELL if you are also Important! testing for Combined Chlorine. You will need the sample. Sensafe.com... -
Page 6: Combined Chlorine
FILL, DIP, READ COMBINED CHLORINE This procedure is a continuation from Free Chlorine Test Method on previous pages. DO NOT DISCARD SAMPLE FROM FREE CHLORINE TEST. ZERO METER With the Free Chlorine sample still in the CELL, press and the LCD Display reads 0.00 indicating the meter is ready for testing. -
Page 7: Exact ® Strip Micro Cl Interferences
Peroxides Interference is possible. Typical pH samples of potable water with a pH of 6.0 to 9.0 are OK. If outside this range adjust to pH 6.0 to 7.0 using acid (0.5N Sulfuric acid) or base (0.5N Sodium hydroxide). Sensafe.com... -
Page 8: Total Chlorine
FILL, DIP, READ TOTAL CHLORINE POWER ON PHOTOMETER Press the button to power on the Chlorine eXact ® FILL CELL Rinse the cell 3 times with the water sample to be tested and FILL to the top to begin test. Use the included cleaning brush to clean the cell after each test to achieve the most accurate result. - Page 9 Total Chlorine. This result is automatically stored in the TC2 menu. After testing is complete, rinse the sample cell immediately and clean with brush. If result is 6.0 or greater, repeat steps 5-7 above using same sample and a fresh strip. Sensafe.com...
-
Page 10: Total Chlorine High
FILL, DIP, READ TOTAL CHLORINE HIGH POWER ON PHOTOMETER Press the button to power on the Chlorine eXact ® FILL CELL Rinse the cell 3 times with the water sample to be tested and FILL to the top to begin test. Use the included cleaning brush to clean the cell after each test to achieve the most accurate result. - Page 11 ‘1’. Remove and discard the strip. The display will automatically start to count up for 120 seconds. READ RESULTS READ result displayed as Total Chlorine. This result is automatically stored in the HR3 menu. After testing is complete, rinse the sample cell immediately. Sensafe.com...
- Page 12 FILL, DIP, READ POWER ON PHOTOMETER Press the button to power on the Chlorine eXact ® FILL CELL Rinse the cell 3 times with the water sample to be tested and FILL to the top to begin test. Use the included cleaning brush to clean the cell after each test to achieve the most accurate result.
- Page 13 (2 strokes per second) until the timer displays ‘1’. Remove and discard the strip. READ RESULTS READ result displayed as pH. This result is automatically stored in the PH4 menu. After testing is complete, rinse the sample cell immediately. Sensafe.com...
-
Page 14: For Best Accuracy
FOR BEST ACCURACY The Chlorine eXact EZ photometer has a 5 minute auto-shutoff timer. ® Each test menu can store 20 results. To retrieve the stored results, go to the desired test using the MENU key. When the desired test is displayed, press and hold down the MENU key. -
Page 15: Troubleshooting
For additional technical support, call (803) 329-9712. Industrial Test Systems, Inc. 1875 Langston Street, Rock Hill, SC 29730 800-861-9712 or 803-329-9712 its@sensafe.com | sensafe.com years ITS Europe, Ltd. The UK Centre for Homeland Security Building 7, Chilmark, Salisbury,... -
Page 16: About
If the meter is faulty or otherwise defective contact ITS by phone (+1-803-329- 9712 Ext. 0) or email (its@sensafe.com) to describe the problem and obtain a return authorization form before returning the photometer to ITS. Damage caused by improper packing of the photometer for return shipment to ITS will not be covered by the warranty. -
Page 17: Compliance Testing (Usepa)
® and eXact Micro reagents. ® INCLUDES PART NO. ITEM Blue carrying case with foam inserts Standard 486111 Carrying case (holds up to 7 bottles) Black carrying case with foam inserts 486001 Carrying case (holds up to 14 bottles) Sensafe.com... -
Page 18: Notes
NOTES ©2017, Industrial Test Systems, Inc. Printed in USA... - Page 19 NOTES Sensafe.com...
-
Page 20: Exact ® Micro Tests & Reagents
Value provided represents best possible accuracy under laboratory conditions, but may vary throughout the detection † range. For a complete list of accuracies throughout all ranges, please visit sensafe.com/photometers/chlorine-exact-ez/. Requires the use of 2 strips if reading is above 6 ppm.
