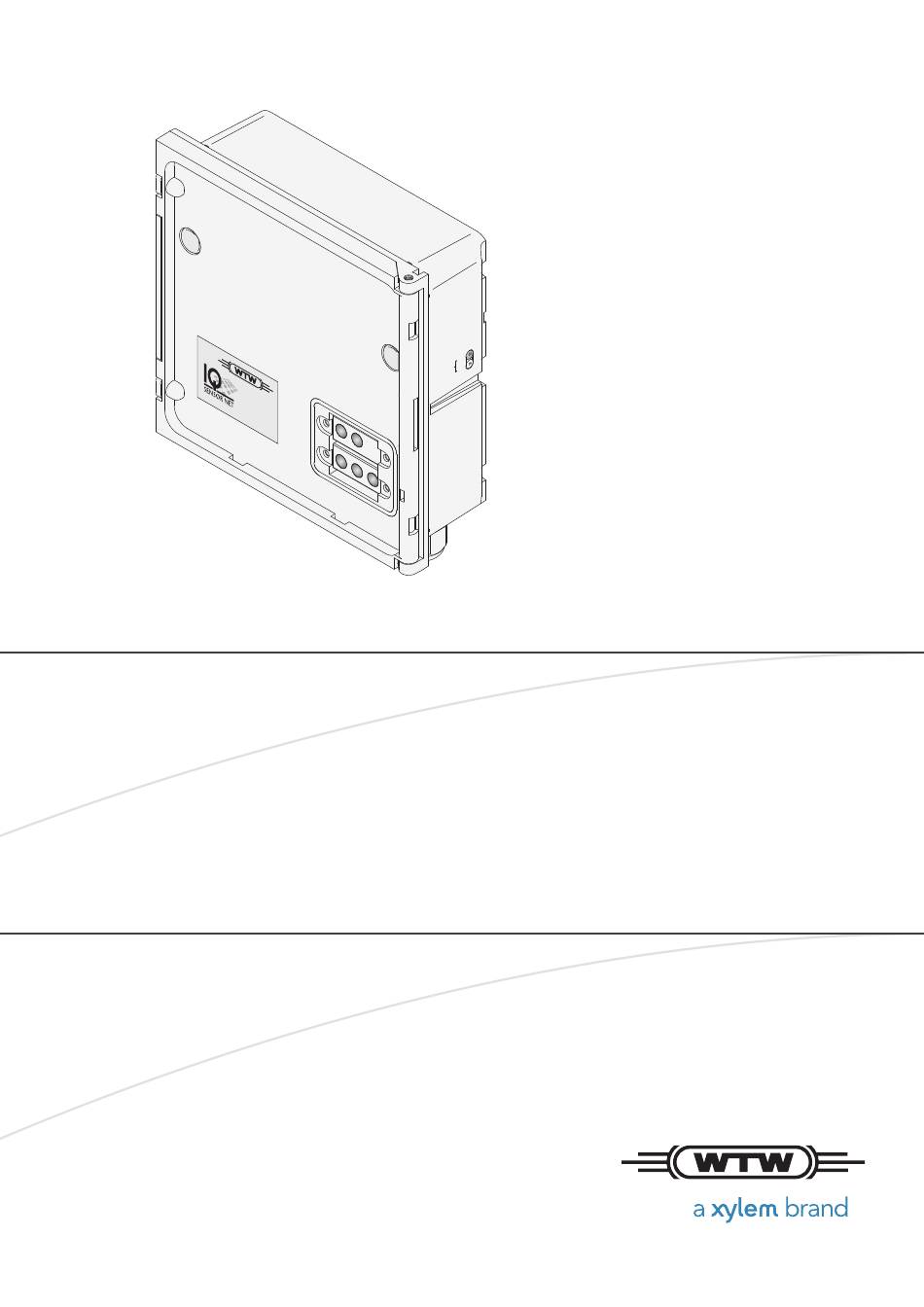

  • Page 1 OPERATING MANUAL ba64107e13 03/2018 P o w IQ S ENSOR MIQ/CR3; DIQ/CR3 IQ S COMBI OUTPUT MODULE ENSOR...
  • Page 2 MIQ/CR3; DIQ/CR3 © Copyright 2018 Xylem Analytics Germany GmbH Printed in Germany. ba64107d13 03/2018...
  • Page 3: Table Of Contents

    MIQ/CR3; DIQ/CR3 List of contents MIQ/CR3; DIQ/CR3 - List of contents Overview ........5 How to use this component operating manual .
  • Page 4 List of contents MIQ/CR3; DIQ/CR3 ba64107e13 03/2018...
  • Page 5: Overview

    MIQ/CR3; DIQ/CR3 Overview Overview How to use this component operating manual Structure of the IQ Sensor Net Operating Manual IQ S ENSOR operating manual System Operating Manual (Ring Binder) Operating Operating Operating Manual Manual Manual IQ Sensor MIQ Module Option (e.g.
  • Page 6: Features Of The Combi Output Module

    Overview MIQ/CR3; DIQ/CR3 Features of the combi output module General The combi output module has three current outputs and three relay outputs. You characteristics can link current outputs and relay outputs to sensors. The linked current outputs and relay outputs can, for example, be used to monitor sensors or to output measurement data.
  • Page 7: Safety Instructions

    MIQ/CR3; DIQ/CR3 Safety instructions Safety instructions Safety information 2.1.1 Safety information in the operating manual This operating manual provides important information on the safe operation of the product. Read this operating manual thoroughly and make yourself familiar with the product before putting it into operation or working with it. The operating manual must be kept in the vicinity of the product so you can always find the information you need.
  • Page 8: Safe Operation

    Safety instructions MIQ/CR3; DIQ/CR3 Safe operation 2.2.1 Authorized use The authorized use of the MIQ/CR3; DIQ/CR3 consists of providing relay and current outputs in the IQ S . Only the operation according to the ENSOR instructions and technical specifications given in this operating manual is autho- rized (see chapter 6 T ).
  • Page 9: Installation

    MIQ/CR3; DIQ/CR3 Installation Installation Scope of delivery  MIQ module  Accessory set, including: – 4 x cable glands (clamping range 4.5-10 mm) with seals and blind plugs – 4 x ISO blind nuts M4 with suitable cheese-head screws and plain wash- –...
  • Page 10: Installation In The Iq Sensor Net

    Installation MIQ/CR3; DIQ/CR3 – Temperature resistance (minimum and maximum temperature) – Stability against UV light when used outdoors – Protection against water and dust (Nema or IP protection class).  Suitable fusing of the electrical circuit – Overcurrent fuses (in accordance with the technical data of the device input or output) –...
  • Page 11 MIQ/CR3; DIQ/CR3 Installation sealing ring 20 x 15 x 1 mm cable gland M16 blind plug  Large, clamping range 7 to 13 mm. This cable gland is required for cable sheaths with an outside diameter of more than 10 mm and is screwed into the enclosure via an extension piece.
  • Page 12: Connections To The Relay And Current Outputs

    Installation MIQ/CR3; DIQ/CR3 WARNING No free wires are allowed to project into the housing. Oth- erwise, there is a danger that areas safe to contact could come into contact with dangerous voltages. Always cut off any wires that are not in use as closely as possible to the cable gland.
  • Page 13 MIQ/CR3; DIQ/CR3 Installation Materials required  Wire end sleeves, suitable for the connecting wires, with suitable crimping tool  4 x screwed cable gland with sealing ring (scope of delivery of the combi output module). Tools  Cable stripping knife ...
  • Page 14 Installation MIQ/CR3; DIQ/CR3 Connect the wires to the terminal strip. While doing so, pay attention to the specifications on the label located under the terminal strip. Tighten the coupling ring (pos. 3 in Fig. 3-1). WARNING No free wires are allowed to project into the housing. Oth- erwise, there is a danger that areas safe to contact could come into contact with dangerous voltages.
  • Page 15: Settings

    MIQ/CR3; DIQ/CR3 Settings Settings The combi output module has three relays outputs and three current outputs.  Relay outputs operate as openers or closers.  Current outputs provide a current that depends on the measured value. On the IQ S terminal, you can ENSOR ...
  • Page 16: Maintenance And Cleaning

    Maintenance and cleaning MIQ/CR3; DIQ/CR3 Maintenance and cleaning Maintenance The combi output module does not require any special maintenance work. The general maintenance of IQ S components is described in the ENSOR IQ S system operating manual. ENSOR Cleaning The cleaning of IQ S components is described in the IQ S ENSOR ENSOR...
  • Page 17: Technical Data

    MIQ/CR3; DIQ/CR3 Technical data Technical data General data Dimensions 144.0 52.2 Front view: Side view: 115.0 11.0 70.0 16.5 Rear view: Stack mounting: Fig. 6-1 Dimension drawing of MIQ module (dimensions in mm) Mechanical Maximum number of structure MIQ modules in a mod- ule stack Enclosure material Polycarbonate with 20 % glass fiber...
  • Page 18 Technical data MIQ/CR3; DIQ/CR3 Weight Approx. 0.5 kg Type of protection IP 67 (not suitable for conduit connection). Cable glands Suitable for cable 4.5 - 10 mm or sheath diameter 9.0 - 13 mm Ambient Temperature conditions Mounting/installation/ + 5 °C ... + 40 °C (+ 41 ... +104 °F) maintenance Operation - 20 °C ...
  • Page 19: Miq/Cr3; Diq/Cr3

    MIQ/CR3; DIQ/CR3 Technical data MIQ/CR3; DIQ/CR3 Electrical data Nominal voltage Max. 24 VDC via the IQ S (for ENSOR details, see the T chapter of ECHNICAL DATA the IQ S system operating ENSOR manual) Power consumption MIQ/CR3: 3 W DIQ/CR3: 2,3 W Protective class Overvoltage category...
  • Page 20 Technical data MIQ/CR3; DIQ/CR3 Relays Output Physically separated from the IQ S ENSOR Max. switching voltage 250 VAC or 24 VDC Max. switching current 5 A (AC and DC) Installation Fuse rating on the operator side: Maximum requirements Relay functions –...
  • Page 21: Indexes

    MIQ/CR3; DIQ/CR3 Indexes Indexes Explanation of the messages In this chapter you will find a list with all the message codes and corresponding message texts that may occur in the log book of the IQ S system for ENSOR the MIQ/CR3 output module. Information about ...
  • Page 22 Indexes MIQ/CR3; DIQ/CR3 ba64107d13 03/2018...
