Summary of Contents for Horotec FLASHTEST
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Description 2. Operation 3. Connections 3.1 Battery 3.2 AC adapter 3.3 Precision probes 4. Settings 4.1 Mute 4.2 Reset 4.3 Calibration 5. Screen information 6. Measurements and functions 7. Settings 8. Switching on the device 8.A Measuring tension of unloaded batteries 8.B Measuring tension of under load batteries 8.C Measuring the movement supply voltage 8.D Measuring the coil resistance... -
Page 3: Description

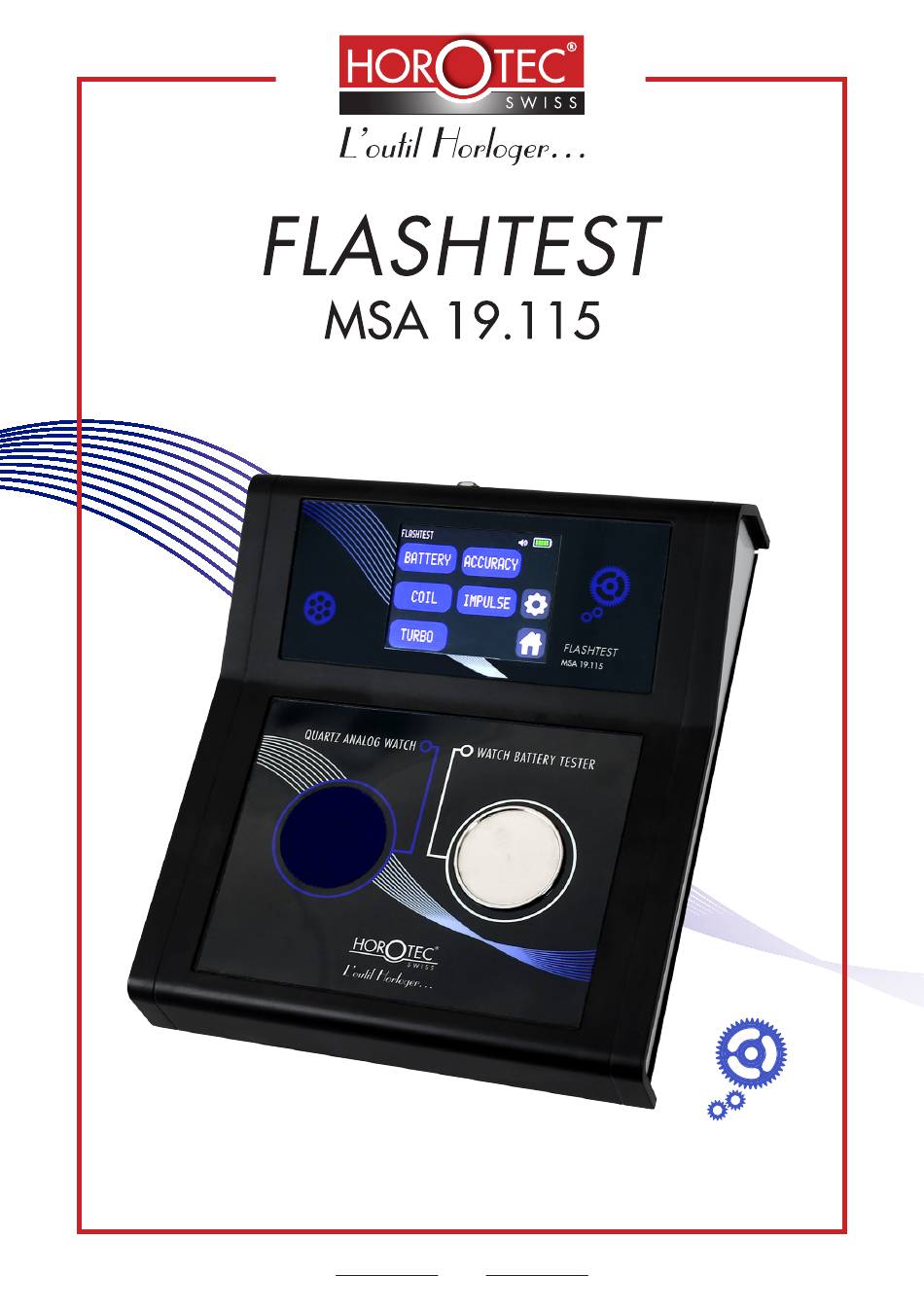

DESCRIPTION HOROTEC© Flashtest is a multifunctional portable touchscreen tester, specifically designed for the control of watches and quartz mechanisms. This precision device is easy to handle and is intended to test analogue quartz watches and movements with both closed and open watchcases. -
Page 4: Connections
HOROTEC Flashtest is delivered with two precision probes, a 12 V adapter (input 115 - 230 V AC / output 12 V DC), a 9 V battery and a manual. HOROTEC© is ©... -
Page 5: Screen Information
SCREEN INFORMATION When this symbol is visible, the device emits sound signals. MUTE When this symbol does not appear on the screen, the function is activated and the device is silent. MUTE To activate/deactivate the function. see paragraph 8.I2 on page 15 When this symbol is visible, the device runs on the battery. -
Page 6: Measurements And Functions
MEASUREMENTS AND FUNCTIONS Special signals displayed on the screen : <-> Waiting for measure... -
Page 7: Settings
Whatever the used mode is, power sector (115 - 230 V) or battery, press the ON/OFF button located at the rear panel of the device to turn it on. The following screen displays : FLASHTEST Display of the main menu BATTERY A. -
Page 8: B Measuring Tension Of Under Load Batteries
Do not touch the watch batteries with your hands to avoid a redox reaction on the surface of the battery B. Measuring tension (V) of batteries under load BATTERY FLASHTEST B1. Press the key on the main menu to measure the battery voltage under load (V) (operating). -
Page 9: C Measuring The Movement Supply Voltage
Si la tension d’arrêt indiquée à l’écran est supérieure à celle donnée par le fabricant (exemple : mouvement ISASWISS 1198, tension d’arrêt 0.8 V), cela signifie que le mouvement est encrassé ou endommagé. Ceci explique le besoin d’énergie supplémentaire. Dépannage : nettoyer ou changer le rouage. BATTERY FLASHTEST C1. Press the key on the main menu to measure the movement supply voltage. -
Page 10: D Measuring The Coil Resistance
The voltage of the ohmmeter is 0.2 V during the operation (a higher voltage than this value could corrupt the measurement). Caution : always remove the battery before measuring. The coil should not receive electrical energy during the measurement. COIL FLASHTEST D1. Press the key on the main menu to measure the coil resistance. -
Page 11: E Unjamming The Wheel Trains
It is then necessary to generate a powerful magnetic field to test or unjam the wheel train. If during this action the hands do not make a fast rotation, it means that a wheel (or wheels) is broken or that the wheel train is too dirty. TURBO FLASHTEST E1. Press the key on the main menu to unjam the wheel trains. -
Page 12: G Checking The Correct Functioning Of The Circuit
Display of the sub-submenu Place the watch on the blue velvet plate of the HOROTEC© Flashtest to make the fast test mentioned below (without precision probe). The sensor receives the impulses of quartz mechanisms and represents them on the screen with a red circle (see picture below) and sound signals (beep) : - Every second for «seconds»... - Page 13 G. Checking the correct functioning of the circuit (continued) Measuring the consumption of the electric circuit CIRCUIT FLASHTEST Gb1. Press the key on the main menu to measure the consumption of the electric circuit. The following screen displays : CIRCUIT Display of the sub-submenu 1.5V CONSUMPTION...
-
Page 14: H Measuring The Consumption Of A Watch During Its Operation
H. Mesurer la consommation d’une montre pendant son fonctionnement CIRCUIT FLASHTEST H1. Appuyer sur la touche du menu principal pour mesurer la consommation de la montre. The following screen displays : CIRCUIT Display of the sub-submenu 1.5V CONSUMPTION CIRCUIT H2a. Appuyer sur la touche du sous-menu si la montre est alimentée en 1.5 V. -
Page 15: I Settings
I. Settings FLASHTEST I1. Press the key on the main menu to set up the device. The following screen displays : SETTINGS Display of the sub-submenu MUTE mode MUTE Press the key, the symbol disappears (silent mode) or appears (sound mode). -
Page 16: Safety Precautions
Copyright law protects the contents of this operating manual. Law prohibits reproduction, and using its elements without the written consent of the manufacturer and the importer. Before you use the HOROTEC© Flashtest product, read all operating instructions because it can provide optimum performances and longer service life for your device. Save all manuals and documentation for future reference. - Page 17 Follow these important guidelines to prevent batteries from leaking overheating, burning, exploding, or causing electrical shocks or burns. WARNING ! HOROTEC© Flashtest operates only with a 9 V battery. Do not use any other type of network adapters than those with your device.
-
Page 18: Charter Of Consumption Of Electronic Circuits / Coils Resistance
CHARTER OF CONSUMPTION OF ELECTRONIC CIRCUITS / COILS RESISTANCE Cal. μA. Ic μA. Mvt Coil kΩ Cal. μA. Ic μA. Mvt Coil kΩ 201001 0.35 1.20-1.60 5120-30 <0.30 0.40-0.80 1.50 205911 1.10 0.20-0.40 gen. 5820-6120 <0.30 0.40-0.80 1.50 210001-11 0.70 1.25-1.55 6130 <0.30... - Page 19 SEIKO SEIKO Cal. μA. Ic μA. Mvt Coil kΩ Cal. μA. Ic μA. Mvt Coil kΩ IE20 0.30 1.60-2.80 V220 0.30 0.60 1.40-2.00 1F20 0.25 0.30 2.00-2.60 V33F 0.40 1.20 3.00-3.40 1N00 0.25 0.30 1.70-2.00 V33G 0.40 1.20 3.00-3.40 1N01 0.25 0.90 2.70-3.30...
- Page 20 CITIZEN MIYOTA Cal. μA. Ic μA. Mvt Coil kΩ μA. Ic μA. Mvt Coil kΩ Cal. 0310 0.90 2.90-3.50 2025 1.30 2.80-3.40 0312 0.90 2.90-3.50 2033 1.30 2.80-3.40 0317 0.90 2.90-3.50 2034 1.30 2.80-3.40 0321 0.90 2.90-3.50 2035 1.30 2.80-3.40 0327 0.90 2.90-3.50...
