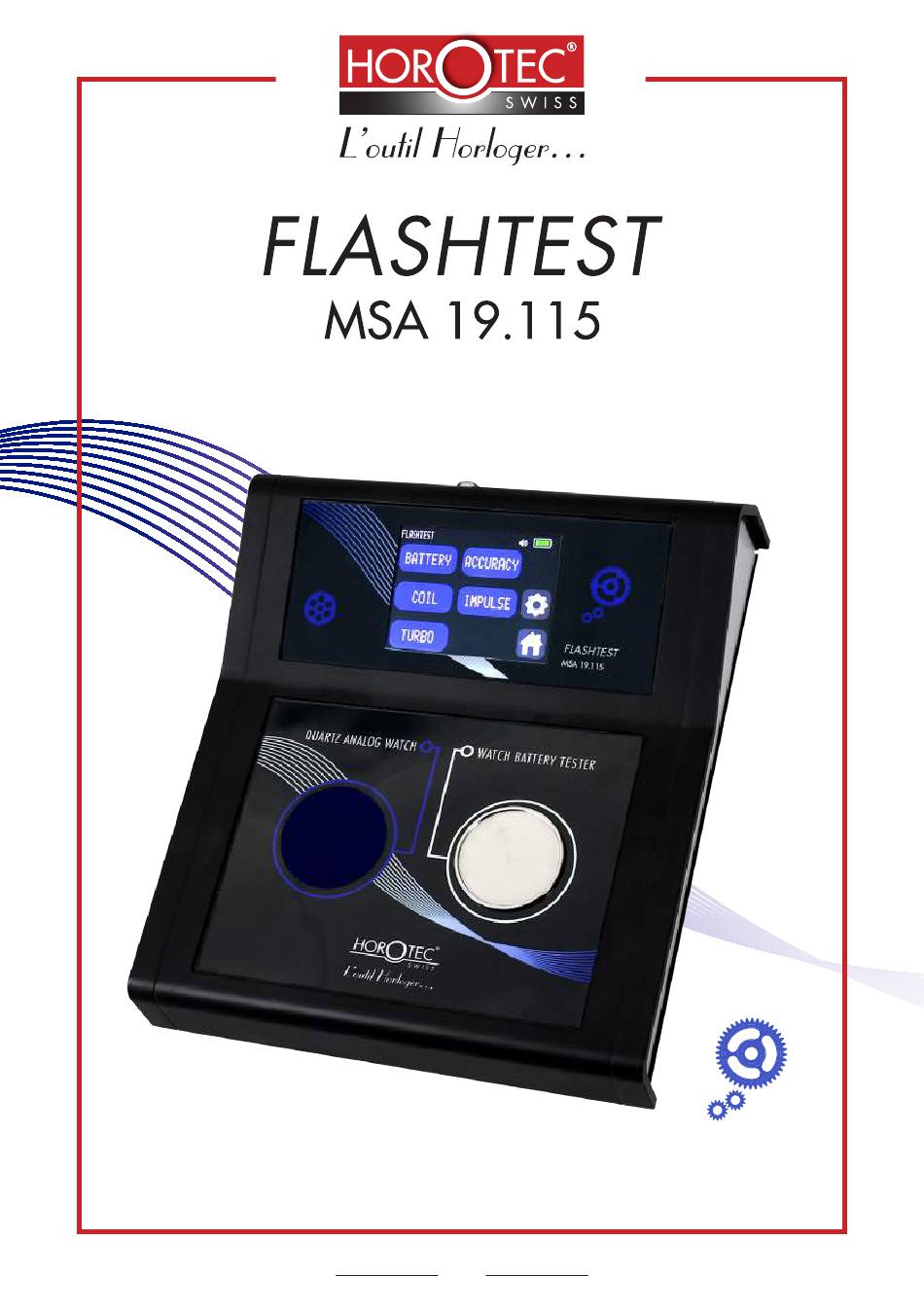

- Page 1 USER_MSA19.115/EN...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Description 2. Operation 3. Connections 3.1 Battery 3.2 AC adapter 3.3 Precision probes 4. Settings 4.1 Mute 4.2 Reset 4.3 Calibration 5. Screen information 6. Measurements and functions 7. Settings 8. Switching on the device 8.A Measuring tension of unloaded batteries 8.B Measuring tension of under load batteries 8.C Measuring the movement supply voltage 8.D Measuring the coil resistance... -
Page 3: Description
DESCRIPTION HOROTEC© Flashtest is a multifunctional portable touchscreen tester, specifically designed for the control of watches and quartz mechanisms. This precision device is easy to handle and is intended to test analogue quartz watches and movements with both closed and open watchcases. -
Page 4: Connections
HOROTEC Flashtest is delivered with two precision probes, a 12 V adapter (input 115 - 230 V AC / output 12 V DC), a 9 V battery and a manual. HOROTEC© is ©... -
Page 5: Screen Information
SCREEN INFORMATION When this symbol is visible, the device emits sound signals. MUTE When this symbol does not appear on the screen, the function is activated and the device is silent. MUTE To activate/deactivate the function. see paragraph 8.I2 on page 15 When this symbol is visible, the device runs on the battery. -
Page 6: Measurements And Functions
MEASUREMENTS AND FUNCTIONS Special signals displayed on the screen : <-> Waiting for measure... -
Page 7: Settings
SETTINGS Display when using the GPS MSA19.108-E see paragraph 8.I on page 15 SWITCHING ON THE DEVICE Whatever the used mode is, power sector (115 - 230 V) or battery, press the ON/OFF button located at the rear panel of the device to turn it on. The following screen displays : FLASHTEST Display of the main menu... -
Page 8: B Measuring Tension Of Under Load Batteries
BATTERY TEST TENSION A2. Press the key of the submenu The following screen displays : - 0.00 V <-> BATTERY TEST Display of the sub-submenu There are 2 possibilities to measure the voltage of an unloaded battery : - Battery only : place the battery on the metal plate of the device. -
Page 9: C Measuring The Movement Supply Voltage
BATTERY TEST TENSION B2. Press the key of the submenu The following screen displays : - 0.00 V - 0.00 V <-> <-> BATTERY TEST Display of the sub-submenu This measurement is performed only with the single battery : place the battery on the metal plate of the device. -
Page 10: D Measuring The Coil Resistance
C2b. Press the SUPPLY 3.0V key of the submenu TENSION if the watch is supplied with 3.0 V. The following screen displays : 3.00 V SUPPLY 3.0V Display of the sub-submenu Use the probes to supply the movement as shown on the sketch below. - To reduce the tension, press the key (or the key to increase it), by steps of 0.1 V for a... -
Page 11: E Unjamming The Wheel Trains
E. Unjamming the wheel trains It is possible that a watch does not restart immediately after a battery change or a prolonged stoppage. It is then necessary to generate a powerful magnetic field to test or unjam the wheel train. If during this action the hands do not make a fast rotation, it means that a wheel (or wheels) is broken or that the wheel train is too dirty. -
Page 12: G Checking The Correct Functioning Of The Circuit
Display of the sub-submenu Place the watch on the blue velvet plate of the HOROTEC© Flashtest to make the fast test mentioned below (without precision probe). The sensor receives the impulses of quartz mechanisms and represents them on the screen with a red circle (see picture below) and sound signals (beep) : - Every second for «seconds»... - Page 13 G. Checking the correct functioning of the circuit (continued) Measuring the consumption of the electric circuit CIRCUIT FLASHTEST Gb1. Press the key on the main menu to measure the consumption of the electric circuit. The following screen displays : CIRCUIT Display of the sub-submenu 1.5V CONSUMPTION CIRCUIT...
-
Page 14: H Measuring The Consumption Of A Watch During Its Operation
H. Mesurer la consommation d’une montre pendant son fonctionnement CIRCUIT FLASHTEST H1. Appuyer sur la touche du menu principal pour mesurer la consommation de la montre. The following screen displays : CIRCUIT Display of the sub-submenu 1.5V CONSUMPTION CIRCUIT H2a. Appuyer sur la touche du sous-menu si la montre est alimentée en 1.5 V. -
Page 15: I Settings
I. Settings FLASHTEST I1. Press the key on the main menu to set up the device. The following screen displays : SETTINGS Display of the sub-submenu MUTE mode MUTE Press the key, the symbol disappears (silent mode) or appears (sound mode). RESET mode Values reset : resets the real value of the corrupted zero by external factors such as temperature or humidity or by the aging of the electronic components of the device. -
Page 16: Safety Precautions
Copyright law protects the contents of this operating manual. Law prohibits reproduction, and using its elements without the written consent of the manufacturer and the importer. Before you use the HOROTEC© Flashtest product, read all operating instructions because it can provide optimum performances and longer service life for your device. Save all manuals and documentation for future reference. - Page 17 Follow these important guidelines to prevent batteries from leaking overheating, burning, exploding, or causing electrical shocks or burns. WARNING ! HOROTEC© Flashtest operates only with a 9 V battery. Do not use any other type of network adapters than those with your device.
-
Page 18: Charter Of Consumption Of Electronic Circuits / Coils Resistance
CHARTER OF CONSUMPTION OF ELECTRONIC CIRCUITS / COILS RESISTANCE Cal. μA. Ic μA. Mvt Coil kΩ Cal. μA. Ic μA. Mvt Coil kΩ 201001 0.35 1.20-1.60 5120-30 <0.30 0.40-0.80 1.50 205911 1.10 0.20-0.40 gen. 5820-6120 <0.30 0.40-0.80 1.50 210001-11 0.70 1.25-1.55 6130 <0.30... - Page 19 SEIKO SEIKO Cal. μA. Ic μA. Mvt Coil kΩ Cal. μA. Ic μA. Mvt Coil kΩ IE20 0.30 1.60-2.80 V220 0.30 0.60 1.40-2.00 1F20 0.25 0.30 2.00-2.60 V33F 0.40 1.20 3.00-3.40 1N00 0.25 0.30 1.70-2.00 V33G 0.40 1.20 3.00-3.40 1N01 0.25 0.90 2.70-3.30...
- Page 20 2201A 0.20 1.70-2.10 2722 1.20 2.60-3.20 6870 6W70 2731 1.20 2.60-3.20 2854 1.20 2.90-3.50 3510 3.00 0.80-1.30 1.70-2.10 2.40-3.00 3531 3.00 0.80-1.30 1.70-2.10 2.40-3.00 0540 1.60 1.80-2.40 1.80-2.30 sec chr 2010 1.50 1.90-2.40 2000 1.50 1.90-2.40 USER.MSA19.115-EN Version 2/October 2018...
