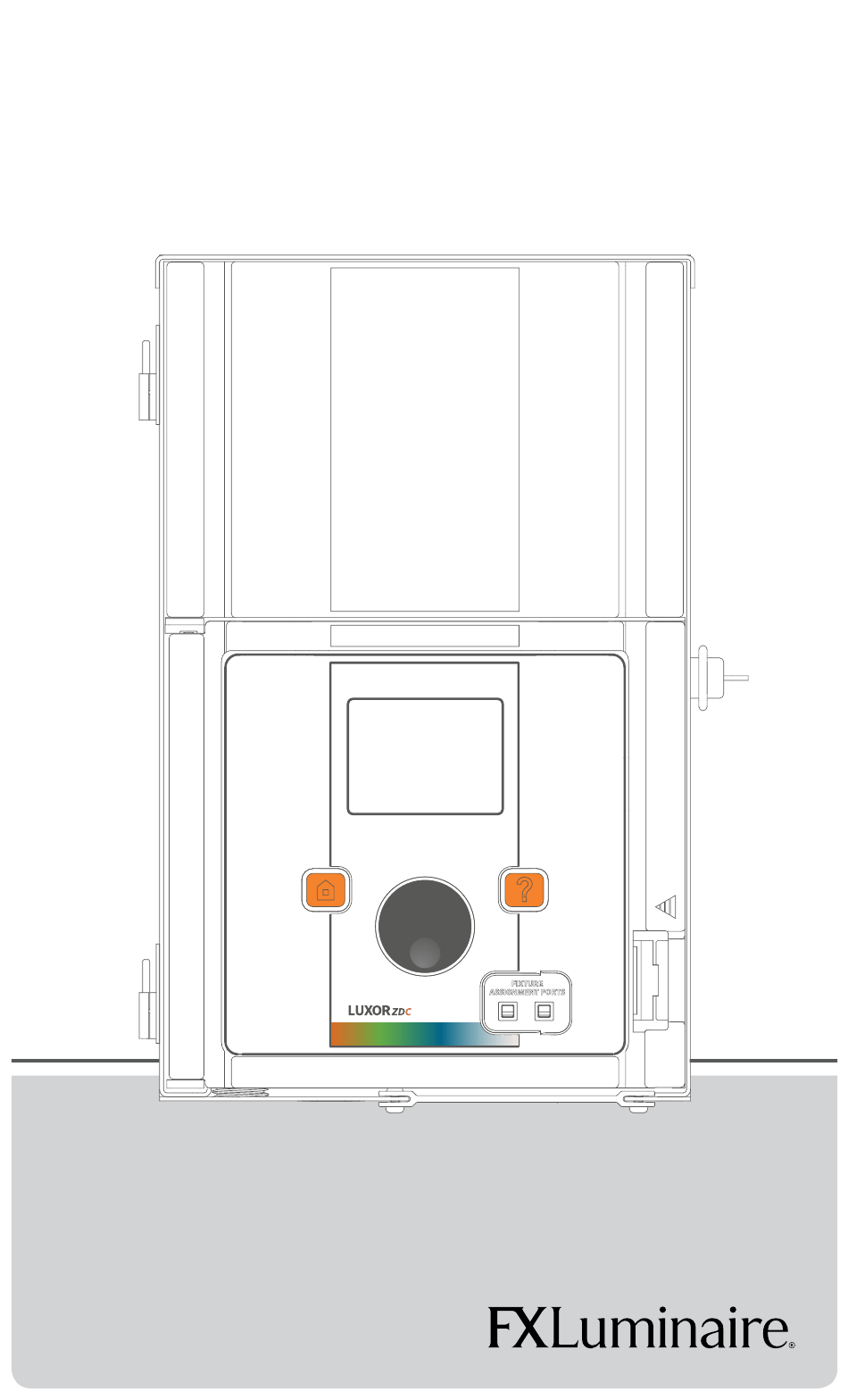

- Page 1 LUXOR ® CONTROLLER Quick Start Guide...
- Page 2 SCROLL WHEEL • Pressing scroll wheel allows field to be selected or editable • FIRMWARE FILES • FXL.com -> Products -> Power & Control -> Luxor ZD/ZDC -> Documents tab • File Name(s): • ZD Facepack: fx_fpack.efi • ZDC Facepack: zdcfpack.efi •...
- Page 3 Location Setup • Select SETUP • Select LOCATION using scroll wheel • LATITUDE (Lat)/LONGITUDE (Long) Select using scroll wheel • Long = Up/Down • Lat = Left/Right Fixture Group Assignment • Insert integrated fixture or Luxor Accessory leads into ASSIGMENT PORTS located on front of facepack •...
- Page 4 Creating Themes • Select THEMES • Select desired Theme letter (A-Z) • Enter desired groups, including intensity and color (ZDC only), for the selected Theme • Select TEST THEME to preview desired Theme Creating Programs • Select PROGRAMS • Select desired Program letter (A-F), Program run days (Mon – Sun), and Event time •...
