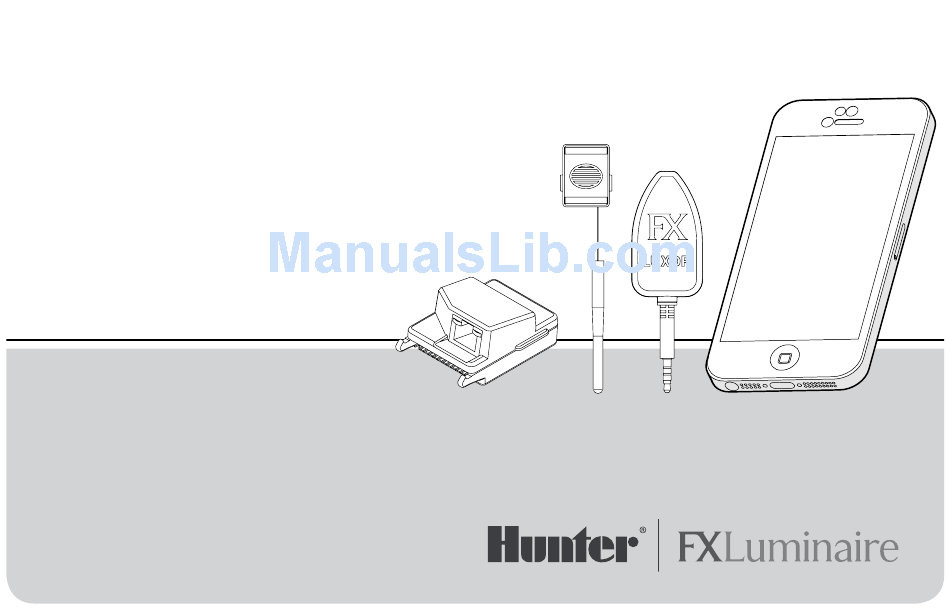

- Page 1 LUXOR ® Wi-Fi System Components IC:7693A-24WG0MAMB FCF:W7OMRF24WG0MAMB Contains Transmitter Module Module: FXWIFIMOD The Luxor ZD and ZDC Wi-Fi Control System With Light Assignment Module and Smart Device App ®...
-
Page 2: Table Of Contents
Table of Contents 19 Add a Group Overview 20 Tips on Working with Groups Luxor® Wi-Fi Components Themes Glossay of Terms 21 Add a Theme Installation 23 Tips on Working with Themes Installing Luxor Wi-Fi Color Setup Programming with the LAM Connecting to an Existing Network Care and Maintenance Wi-Fi Module... -
Page 3: Luxor Wi-Fi Components

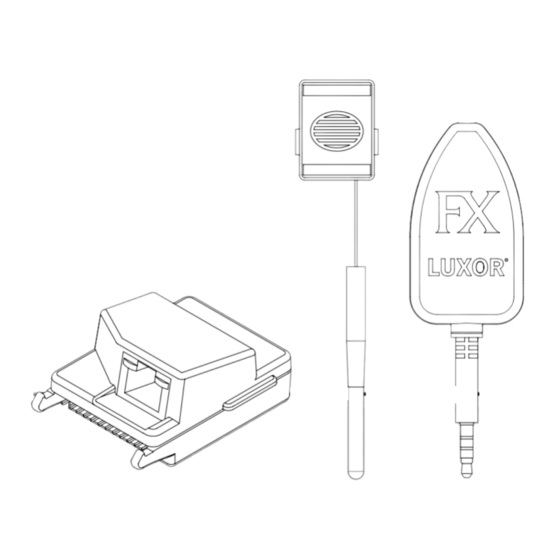

Luxor Wi-Fi Overview ® The Luxor ZD and ZDC systems are capable of communicating with iOS and Android smart devices for on–demand changes to your outdoor lighting system. Overview Luxor Wi-Fi Components IC:7693A-24WG0MAMB FCF:W7OMRF24WG0MAMB Contains Transmitter Module Module: FXWIFIMOD LAN Module... -
Page 4: Glossay Of Terms
Luxor Wi-Fi Overview ® Glossary of Terms Saturation: The richness of a color mixed with white light, from 0% to 100%. Group: An addressed set of lights that is designated numerically and controlled as a set by the controller. Color: The visual combination of hue and saturation. Theme: A predetermined set of groups, intensities, LAM: Light Assignment Module. - Page 5 Luxor Wi-Fi Installation ® ➊ ② Press bezel lever to Pull bezel outward while the left. holding the lever inward. ③ ④ ⑤ Disconnect communication Remove cover. Press facepack through cable. Push tab outward. the bezel while holding the tab outward.
- Page 6 Luxor Wi-Fi Installation ® ⑥ ⑦ Insert Wi-Fi or Insert facepack back LAN module. into the bezel. WI-FI MOD ONLY: Ensure the facepack locks into place and antenna wire is seeded through the wire slot. DO NOT PINCH THE ANTENNA WIRE. ⑨...
- Page 7 Luxor Wi-Fi Installation ® ⑩ ⑪ WI-FI MOD ONLY: WI-FI MOD ONLY: Insert the antenna Press cap into antenna into the cover. wire and tighten over the cover. ⑫ ⑬ LAN MOD ONLY: Reconnect commu- Connect cat5 cable nication cable. Close to LAN Module.
-
Page 8: Setup
Luxor Wi-Fi Setup ® Setup 2. Scroll to and select Wi-Fi. NOTE: this menu option changes depending of which module is inserted into There are two ways to associate a Luxor controller with the accessory port. “Wi-Fi” displays only when the a Wi-Fi network: through a networked Wi-Fi router, or Wi-Fi module is completely pressed into the accessory directly to a wireless iOS or Android device. - Page 9 Luxor Wi-Fi Setup ® 3. Select the “network” button to choose a specific RSSI is measured between zero and 120, with network. NOTE: The Luxor defaults to “Direct optimum performance above 70. Connect” mode. See next section for more information on this topic. 4.
- Page 10 Luxor Wi-Fi Setup ® 5. If a “Y” was displayed for the selected network, a password entry screen will appear. Select each box to scroll for the desired character and press the scroll wheel to finalize that character. Move to the next character space and repeat the process until the full password is entered.
-
Page 11: Lan Module
Luxor Wi-Fi Setup ® Connecting to an Existing Network (LAN Module) changes depending of which module is inserted into the accessory port. “Wi-Fi” displays only when the Installing a LAN module for a direct connection between Wi-Fi module is completely pressed into the accessory the Luxor and the network equipment can provide a more port. - Page 12 Luxor Wi-Fi Setup ® 3. The Ethernet status screen will display as “connected” Color Description when a cat5 connection is made between the LAN module and the network device. Left LED Amber Speed Indicator: or Green • Amber on — Operating as a gigabyte connection (1000 Mbps).
-
Page 13: Direct Connect
Luxor Wi-Fi Setup ® Direct Connect 2. Scroll to and select Wi-Fi. NOTE: this menu option changes depending of which module is inserted into The Luxor can be placed in Direct Connect mode, allowing the accessory port. “Wi-Fi” displays only when the an iOS or Android device to connect directly over Wi-Fi to a Wi-Fi module is completely pressed into the accessory single controller. - Page 14 Luxor Wi-Fi Setup ® 3. The Luxor defaults to “Direct Connect” mode. The 4. If a Luxor is in “network” mode, then select the NET- network name is “luxor”. If a controller ID is assigned WORK button on the Wi-Fi setup screen, and select by the installer, then the ID number is added to the DIRECT CONNECT to switch to direct connect mode.
-
Page 15: Luxor Linking (Multiple Luxors)
Luxor Wi-Fi Setup ® Luxor Linking (Multiple Luxors) controller to which the fixture is connected. When multiple Luxor controllers on a single site are 4. Group/theme names and theme settings are saved connected to the same network (via LAN or Wi-Fi), the across all linked controllers and will remain in sync as app sees the controllers as a single system with up to 250 long as each Luxor remains connected to the network. -
Page 16: Luxor Linking Example
Luxor Wi-Fi Setup ® Luxor Linking Example LUXOR ZD controls groups 1-25 LUXOR ZD controls groups 26-75 LUXOR ZDs GROUP 1 GROUP 26 GROUP 27... -
Page 17: App Control
Luxor Wi-Fi App ® App Control A Luxor system with a Wi-Fi Module installed can be operated manually and with the themes mode utilizing an iOS or Android device. The FX Luminaire Luxor App can be downloaded from the following application stores. Keyword search: “FX Luxor.”... - Page 18 Luxor Wi-Fi App ® • If the app is not able to find the Luxor controller, select • The settings menu contains a list of the active MANUAL CONFIGURE. controllers (“zero configuration”), and a separate REMINDER: the smart device and the Luxor must be list of controllers that were manually configured.
-
Page 19: Add A Group
Luxor Wi-Fi App ® Groups Add a Group Operating lights in the groups mode is a manual process 1. Select the GROUPS tab of turning lights on or off, adjusting the intensity between to show available groups zero and 100% (ZD only), and changing the colors (ZDC to adjust. -
Page 20: Tips On Working With Groups
Luxor Wi-Fi App ® Tips on Working with Groups 2. Enter a name for a group with a description, such as • Reorder the groups by selecting EDIT at the top right. BBQ, Pool, or Patio. Press and hold the “three line” icon next to each group 3. -
Page 21: Themes
Luxor Wi-Fi App ® Themes Add a Theme 1. Select the THEMES tab to A theme is a planned set of groups at stated colors (ZDC only) and intensities. Using the themes mode on the show named themes to Luxor app allows you to control preset lighting themes activate. - Page 22 Luxor Wi-Fi App ® 2. Enter a name for a theme 6. Select the + Group button with a description, such to add a group to a theme. as Entertain, Home, or 7. Select the desired intensity Weekend,etc. for that group. 3.
-
Page 23: Tips On Working With Themes
Luxor Wi-Fi App ® Tips on Working with Themes • Delete a theme by selecting EDIT at the top right. Press the red delete icon ( ) and confirm by • Themes are initiated by selecting the icon for pressing the secondary delete button appearing on each theme. -
Page 24: Color
ZDC LED board is installed into each desired FX LED fixture. It also requires replacing the existing Luxor ZD facepack with a Luxor ZDC facepack. Standard and ZD enabled FX fixtures will zone and zone/ dim (respectively) on a ZDC... - Page 25 Luxor Wi-Fi App ® 4. Select/confirm a color by 7. When editing a group, dragging the circle selector or adding the group to a to the desired color. theme, a LIGHT TYPE is Make changes in smaller required to define if the increments by using the group consists of color or “+”...
- Page 26 Luxor Wi-Fi App ® 8. The groups page displays NOTE: Assign color fixtures and the named groups with non-color fixtures to separate intensities and colors dis- groups for optimum performance. played for the groups that are currently running. a. Color groups display the color code next to the name, as created in the color palette screen.
-
Page 27: Programming With The Lam
Luxor Wi-Fi App ® Programming with the LAM 2. Access the menu options by pressing the “hamburger” The LAM is a device that wirelessly assigns FX LED fixtures icon ( ) at the top left with ZD and ZDC Technology™ to groups. To utilize the corner of the screen. - Page 28 Luxor Wi-Fi App ® 4. The ASSIGN LIGHTS button will appear at the bottom 7. The first time a device uses the LAM, the operating of the settings screen only when the LAM is inserted system typically asks for permission to allow the app into the headphone jack of the smart device.
- Page 29 Luxor Wi-Fi App ® 14. Once fixtures have been assigned, exit the as- Select dropdown box and signment mode by selecting the back button, or choose the desired group entering the group or theme mode on the iPad. to assign fixture. Remove the LAM from the device when not in use 10.
-
Page 30: Wi-Fi Tips
Luxor Wi-Fi Care and Maintenance ® Wi-Fi Tips The Luxor operates optimally at an RSSI of 70 or greater. If the RSSI indicates a value lower than 70, consider the following alternatives: • Add an extender or access point to the local network, boosting signal closer to the Luxor. -
Page 31: Troubleshooting
Luxor Wi-Fi Care and Maintenance ® Troubleshooting Problem Cause Resolution Network not listed on available Controller not seeing network Reset network router and verify Wi-Fi signal at networks transformer's location App will not connect to Luxor Device, controller, or both are Check that device is connected to the correct not on the wireless network network... -
Page 32: Regulatory And Legal Information
Luxor Wi-Fi Legal Information ® Regulatory and Legal Information • Consult the dealer or an experienced radio/TV techni- cian for help. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 The user is cautioned that changes /modifications not of the FCC Rules. - Page 33 Luxor Wi-Fi Legal Information ® type d’antenne et son gain de sorte que la puissance Conformément à la réglementation d’Industrie Canada, le isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas présent émetteur radio peut fonctionner avec une antenne l’intensité nécessaire à l’établissement d’une communi- d’un type et d’un gain maximal (ou inférieur) approuvé...
- Page 34 LANDSCAPE & ARCHITECTURAL LIGHTING | The Intersection of Art & Engineering 1940 Diamond Street, San Marcos, California 92078 USA www.fxl.com FXLIT-164 3/15...
