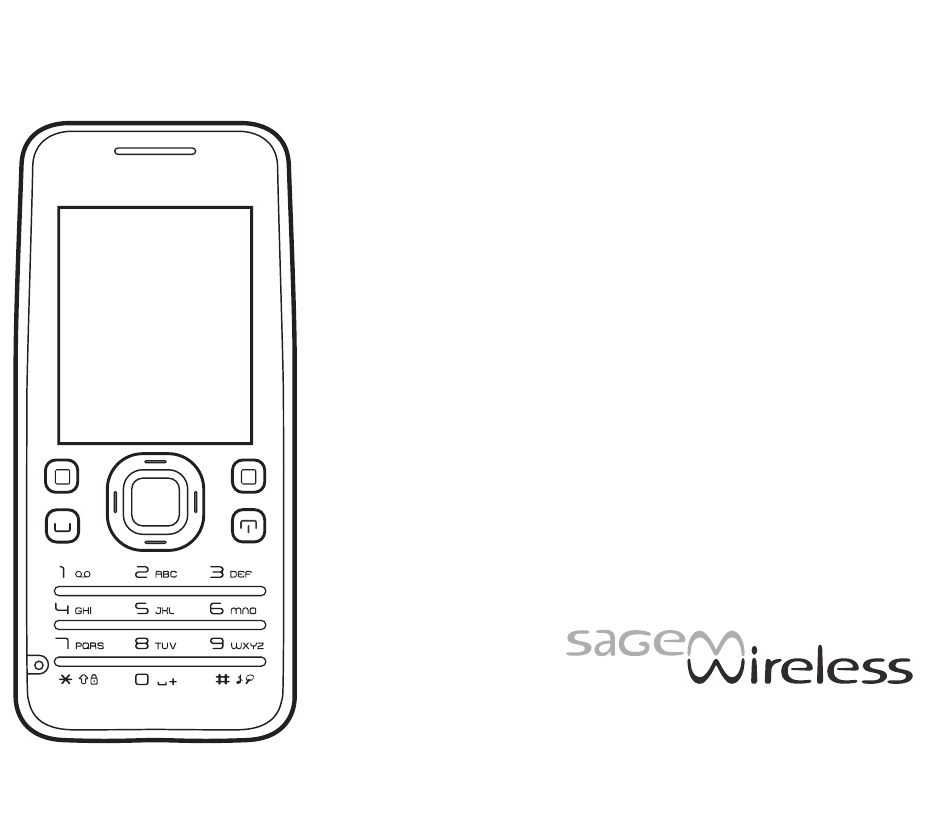

- Page 1 OT 8x0RF* Range English * OT8x0RF stands for OT860RF or OT890RF...
- Page 2 Congratulations! You have just purchased a Sagem Wireless phone. It is recommended that you read this handbook carefully in order to use your phone efficiently and in the best conditions. This phone can be used internationally on the various networks [GSM 850 MHz, GSM 900 MHz, DCS 1800 MHz or PCS 1900 MHz] depending on the roaming arrangements with your operator.
-
Page 3: Table Of Contents
Contents Contents............3 Camera ............24 Description ..........5 Taking a photo and saving it......24 Recording a video......... 25 Installing the SIM card and the battery ...6 My Documents........... 26 Inserting the memory card ......8 Using the memory card........8 Music ............ - Page 4 Technical features........47 Certification and safety information for the United States and countries using FCC standards ........... 48 FCC Part 15 statement ......... 48 Safety Information......... 48 Distance of operation........49 FDA consumer information on wireless phones49 Driving safety tips ......... 52 Declaration of Conformity .......
-
Page 5: Description
Description Right programmable key Left programmable key In idle screen: access to the general In idle screen: access to certain menu (shortcut) functions (shortcuts) In the menus: access to the selection In the menus: access to the shown on screen in the tab selection shown on screen in the Red key Green key... -
Page 6: Installing The Sim Card And The Battery
Alphanumeric keypad A long press on the key 1 calls voicemail (if the number has been stored in Settings/Calls/Voicemail menu) 2 to 9 A long press on one of the 2 to 9 keys immediately displays the phonebook Side keys Access to the music player (long press) Play or pause the music track (short press) Note:... - Page 7 Make sure the phone is switched off and the charger not connected. Turn the phone over and remove the back cover by raising the lower part first. Remove the battery. Slide the card right in under the holding plate, with the fold face down and the cut corner as shown on the phone drawing. Insert the battery by first positioning the top part with the connectors.
-
Page 8: Inserting The Memory Card
Inserting the memory card Remove the back cover. Insert the memory card half-way in position as shown in the diagram above. Using the memory card The memory card is very fragile. Handle with care when you insert or remove the memory card. Some memory cards must be formatted with a PC before first use with the phone. -
Page 9: Idle Screen
Idle screen The idle screen can display: At the top of the screen, the following icons: Battery (when flashing red, the battery must be charged at once) Silent mode (the ring tone is off) Emergency calls only Indicator showing the reception quality of the GSM or Wi-Fi network (from 0 to 5 bars) The phone is in an EDGE coverage area Message received (read your message), flashing: memory full (delete some messages) WAP connection... - Page 10 Date and time The name of the network operator The name of the Wi-Fi access point associated with the phone Note: Indications about the calls or messages or network messages may also be displayed. They can be erased by briefly pressing the red key.
-
Page 11: Quick Start
Quick start Information on the SIM card To use your phone, you need a card called the SIM card. This contains personal information that you can change: secret codes (PIN(s): Personal Identification Number), these codes allow you to protect the access to your SIM card and phone, phone book, messages,... -
Page 12: Switching On/Off
Switching on/off To switch on your phone, do a long press on the red key until vibrating starts. When the phone is on and if you are browsing the menus, a short press on the red key will take you back to the idle screen. When you are in the idle screen, a long press on the red key will switch off the phone. -
Page 13: Reception Of A Call
Reception of a call When you receive a call, the number of your caller is displayed when it is presented by the network. Press the green key to answer, and speak. To reject the call, press the red key. To stop the ring tone or the vibration, without rejecting the call, press the key. -
Page 14: Utilization
Notes: Each SAGEM phone has a specific charger with the appropriate connectors for the phone with which it is sold. Using any other charger, or its use on any other device other than the phone will invalidate the warranty. - Page 15 WARNING There is danger of explosion if the battery is not inserted correctly or if it is exposed to fire. Do not short circuit it. The battery does not have any part that you can change. Do not try to open the battery casing. Use only the appropriate chargers and batteries as shown in the phone manufacturer's catalog.
-
Page 16: Phonebook
Phonebook Using the phone book Enter the Phonebook menu: the list of contacts is displayed if you already have contacts stored (if not, refer to §Storing a new contact). When you select a contact, an icon is displayed in the title bar: contact stored on the SIM card contact stored in the phone’s memory contact stored in fixed dial. -
Page 17: Contact Options
Contact options To display the various options, select a contact and press [Options]. See contacts To display the details of the selected contact. Call Call the contact. If several numbers are stored to the selected contact, select the correct number with the navigator up and down, select [Call] or press the Green key to start the call. - Page 18 Add phone contact Store a new contact into the phone. Add SIM contact Store a new contact into the SIM card. My numbers You can create the entries corresponding to your own numbers in order to consult them when necessary. Select My numbers and validate.
- Page 19 Synchronize You can synchronize your phone book with your archives stored on your operator’s network, using the options offered by your operator with a GSM or GPRS connection from your phone. You can also synchronize your phone book with your archives stored on your computer. You just need to activate or configure the USB connection with your phone (see Settings/Connectivity).
-
Page 20: Messages
Messages The Messages menu groups the following types of messages: SMS and MMS. MMS (Multimedia Message Service) format lets you insert or attach audio content, images and other multimedia objects in your messages, which can even include several slides. MMSs are charged differently from SMS; contact your operator to find out the costs involved and how the service can be activated. -
Page 21: Saving The Message
Accented characters Accented characters are generated automatically in T9 mode. In ABC mode accented characters are available by pressing the key supporting the non-accented character repeatedly. Saving the message Once the text is entered, press [Options] and select Save if you do not want to send the message at once or if you want to send it several times. - Page 22 Drafts When you store a written message, it is stored with the drafts. If you select a message and press the navigator, you can modify it. To send it, select a message, select [Options] then Send or press the navigator to read it, then [Options] and select Add recipient.
- Page 23 The options available for MMS are: Store sent msgs: we recommend that you keep this feature deactivated in order not to saturate the memory. Retrieval mode: if you are in an area where reception quality is poor, it may be a good idea to select manual mode as this allows you to delay the retrieval.
-
Page 24: Camera
Camera This menu lets you take photos and shoot videos and use them in numerous ways, for example: send them to another phone or an Internet address, store them, use them as wallpaper or screen saver. Taking a photo and saving it Possible settings before taking a photo Zoom: To activate the zoom, use the navigator (press up or down) or the side keys (+ or -). -
Page 25: Recording A Video
Emboss: used to modify a photo by assigning it a gray relief, Negative: lets you change a photo to a negative, Grey scale: lets you change a color photo to black and white, Contrast: lets you increase or decrease the contrast of a photo, Sharpen: lets you increase the contrast of a photo, Blur: lets you add unsharp masking to a photo, Sepia: lets you change the colors to sepia,... -
Page 26: My Documents
My Documents The My Documents menu contains the folders of all the multimedia objects recorded with your phone and those you have downloaded (photos, videos, ring tones, etc.). There are two tabs that you can select by pressing the right or left of the navigator: Phone (phone memory) microSD™... -
Page 27: Music
Music This menu lets you listen to music tracks continuously as on a music player. If you do not have any tracks stored yet, use the WAP to Long press: access to the Player download some or connect your phone to a PC (see Short press: play or pause the Settings/Connectivity). - Page 28 Playing your music tracks Player tab: This tab opens when you select a music track or a list of tracks to play. To access the different options, press [Options]: Fast forward: used to fast forward the music tracks. Play/Pause: plays/pause music tracks from the playlist. Play options: used to play the music tracks one by one, continuously or at random.
-
Page 29: Browser
Browser WAP (Wireless Application Protocol): protocol that translates the Internet language into WML and HTML, which is understood by a phone. The WAP function enables connection to certain Internet sites. You can connect to sites to download to your phone ring tones, icons, animated screen savers, Java™ applications and videos. WAP menus Go to URL: this menu allows the direct entry of an Internet address. -
Page 30: Wap Disconnection
WAP disconnection To disconnect, press the red key. Disconnection happens automatically after a few seconds of inactivity if you forget to disconnect. This time is defined by the Disconnection timer setting. Wi-Fi When the icon is shown at the top of the screen, the WAP communication (or object download) will use the Wi-Fi network. -
Page 31: Games
Games You are the owner of a SAGEM cell phone that allows you to download applications and games that can run on your phone using the integrated Java™ engine. However, being able to receive applications that can come from anywhere implies a minimum awareness of the possible effects of such downloads. -
Page 32: Settings
Settings Phone Audio Vibrate This menu allows you to activate the vibration for calls. Ringtones This menu lets you associate a ring tone to different functions (call reception, message reception, alarm call). Profiles This menu allows you to switch to Silent mode. Silent mode can also be activated from the idle screen with a long press on the key. - Page 33 Screensaver This menu allows you to display an animation when the phone is in standby mode. Note: you can select screensavers from those available by default in the phone or from the images downloaded in My Documents. No screensaver: select Normal screen. Several screensavers randomly: select Slide Show.
- Page 34 Date / Time Set Date/Time This menu lets you set the date and time on your phone. Automatic update This menu lets you select automatic update for the time and date (after a period of not using the phone or on a foreign trip for example) (this service depends on the operator).
-
Page 35: Connectivity
Connectivity You can swap various types of data with other devices (PC, mobile phones, PDAs, printers, etc.): images, sound, photos, videos, Todo tasks, Organizer, contacts, etc. Data exchange can be done using: a USB cable, ® a Bluetooth connection. Wi-Fi Your phone can connect to a wireless LAN (Wi-Fi). - Page 36 ® Bluetooth ® ® Bluetooth is a technology used to establish a wireless connection with other Bluetooth equipped devices: for example, with a pedestrian kit or a car kit to phone or with a PC to swap data. The range is about 10m. ®...
- Page 37 Delete all: lets you delete all your devices. WARNING: you need to restart the pairing when this function is used. Activate: used to activate the connection with the device. Deactivate: used to deactivate the connection with the device. ® Properties: used to display the device’s list of Bluetooth services.
-
Page 38: Multimedia
SyncML Two selections: Network (OTA): you can synchronize your phonebook, your organizer or your ToDos with your archives stored in your operator's network depending on the options offered by your operator with a GSM or GPRS connection from your phone. Local: you can synchronize your phonebook, your organizer or your ToDos with your archives stored in your computer. -
Page 39: Calls
Calls The Calls menu allows you to manage all the call functions (call forwarding, number display, call waiting, voice mail number, etc.). Display numbers This menu lets you modify the status of the Display numbers function. Select one of the options proposed: Anonymous mode, My number, Caller’s number. Anonymous mode You can decide whether or not your phone number will be displayed on the phone of the person you call. - Page 40 Auto redial This menu lets you call back a correspondent you were unable to reach. Select one of the options proposed: Inactive, On request or Systematic. If you choose On request, your phone will offer to redial your caller automatically if his number is busy. Counters This menu displays the duration of the last voice calls.
-
Page 41: Messaging
Voicemail This function is used to record your voicemail access number. This number will be used during a call to the voicemail using the programmable keys. Enter your voice mail number and validate. New number After an incoming or outgoing call with a number not stored in the phonebook, this option allows you to activate or deactivate a request to store the number in the phonebook. - Page 42 Phone code The Phone code menu allows you to activate the phone code so that it is requested and checked whenever the phone is switched on if a different SIM card is used. This code is automatically linked to the SIM card installed when the phone is activated, for example to protect the phone if stolen.
-
Page 43: Networks
The Clear costs menu (*) lets you erase the cost of the last call and reset the all totals counter after entering your PIN2. (*) WARNING Depending on the configuration of the network and associated subscription cards, certain functions may not be available (indicated by *). -
Page 44: Games And Tools
Games and Tools Time Manager Alarm This menu lets you set and activate the alarm. The alarm will ring even when the phone is switched off. The alarm icon appears on the idle screen. Timer This menu is used to set and activate the timer. The alarm icon appears on the idle screen. -
Page 45: Games
Categories: allows you to view the different Todo categories, see the number of Todos in each category and display them. Memory: displays the memory used by your Todo’s. Possible actions on a Todo: To display a Todo, select it in the See List and press the navigator. To display the different options, press [Options]. -
Page 46: Applications
Press [Options] to use the following options: Rapid exchange If you activate the Quick exchange option, the converter will work in the idle screen when you enter the required digits and press navigator up or down to carry out the currency conversion. Exchange rate Enter the exchange rate for the two currencies selected. -
Page 47: Technical Features
Technical features Weight: 89 g Size: 108 x 48 x 11 mm Original battery: Li-ion 880 mAh Battery life (*): In communication: Wi-Fi deactivated: 4 h 10, Wi-Fi activated: 3 h 10 In standby: Wi-Fi deactivated: 400 h, Wi-Fi activated: 220 h Multimedia objects supported: Audio formats: iMelody, Midi, wave, MP3, AAC, AAC+, AMR NB, AMR WB Graphical formats: bmp, wbmp, png, gif, animated gif, jpeg... -
Page 48: Certification And Safety Information For The United States And Countries Using Fcc Standards
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications made to this equipment not expressly approved by Sagem Wireless for compliance could void the user's authority to operate the equipment. Safety Information Aircraft: Switch off your wireless device whenever you are instructed to do so by airport or airline staff. -
Page 49: Distance Of Operation
Interference with personal medical devices: You should always consult your physician and review the device manufacturer's instructions to determine if operation of your phone may interfere with the operation of your medical device. As a general rule: - For pacemakers: Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 cm) be maintained between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. - Page 50 What is FDA's role concerning the safety of wireless phones? Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user.
- Page 51 FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators.
-
Page 52: Driving Safety Tips
Do wireless phone accessories that claim to shield the head from RF radiation work? Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. - Page 53 NOTICE: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. NOTICE: This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada]. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.
-
Page 54: Declaration Of Conformity
Declaration of Conformity... -
Page 55: Care And Safety Information
Radio frequency bands authorized for IEEE 802.11 b/g Wireless transmission depend on national regulations. When your Sagem device is connected to a Wi-Fi access point, it is this access point which defines the utilization frequency ranges of your device. - Page 56 The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons, and must not be co-located or operating in conjunction with other antennas or transmitters. Accessories We recommend you use SAGEM brand accessories for optimal operation of your phone and accessories. Care and safety information...
-
Page 57: Environment
Using the music player This product has been designed to comply with prevailing legislation regarding the limitation of maximum audio volume levels. Prolonged listening at high volume with a headset or earphones can damage your hearing. If you experience ringing in your ears, reduce the volume or stop using the product. Only use the headset or earphones supplied with the product or else use compatible accessories. -
Page 58: For Customers In The United States
This product is for standard consumer use only and guaranteed to be in proper working order as is determined upon initial removal from the package and subsequent power up and test call. If this product is determined to be defective, Sagem Wireless will repair or replace the product, at its option, at no charge. -
Page 59: Limited Warranty
Your phone allows you to download ring tones, icons and animated screensavers. Some of these items may contain data that may cause malfunction of your phone or data losses (a computer virus, for example). For this reason, Sagem Wireless disclaims all responsibility concerning (1) the reception of downloaded data or losses of such data, (2) such data's impact on the operation of the phone, and (3) damages resulting from receiving any downloaded data or loss of such data. - Page 60 CUSTOMER FILES, PROGRAMS OR DATA. The information or operating elements and the contents of files will not be re-installed in any case in the event of loss. Sagem Wireless may decide, at its option, to repair the phone with new or reconditioned parts, or replace the phone with a new or reconditioned phone.
- Page 61 95800 Cergy Saint Christophe These provisions are valid unless Sagem Wireless has made a special written agreement with the customer. If one of the provisions turns out to infringe a requirement under applicable law that consumers could have the benefit of under the national legislation, such provision will not be applied, but all other provisions will remain valid.
-
Page 62: For Customers Outside The United States
(2) the impact on the operation of the phone and (3) damages resulting from receiving the said downloaded data or loss of said data. In addition, Sagem Wireless states that a failure caused by receiving downloaded data that do not comply with the specifications set by Sagem Wireless is excluded from the warranty. - Page 63 Sagem Wireless may decide, at its option, to repair the phone with new or reconditioned parts, replace the phone with a new phone or, in any dispute, a phone in good working condition.
- Page 64 SIM operator key done without the agreement of the original operator. In the cases of warranty exclusion and of expiry of the warranty period, Sagem Wireless shall draw up an estimate to be given to the customer for acceptance before any call-out. The repair and carriage costs (there and back) given in the accepted estimate will be charged to the customer.
-
Page 65: End User Licence Agreement (Eula), For The Software
CONTEXT AND ACCEPTANCE OF THE AGREEMENT You have acquired a Mobile Phone device ("DEVICE"), manufactured by Sagem Wireless (SAGEM), that includes software either developed by SAGEM itself or licensed third party Software suppliers ("SOFTWARE COMPANIES") to SAGEM with the rights to sub-licence it to the purchaser of the device. These installed software products, regardless of their company of origin, and whether the name or the company of origin is indicated of not in the DEVICE documentation, as well as associated media, printed materials, and "online"... - Page 66 Neither SAGEM nor its suppliers shall be liable for any damages arising out of errors in the speech and handwriting recognition processes.
- Page 67 Termination. Without prejudice to any other rights, SAGEM may terminate this EULA if you fail to comply with the terms and conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.
- Page 68 - DEVICE Software. If the DEVICE Software is provided by SAGEM separate from the DEVICE on media such as a ROM chip, CD ROM disk(s) or via web download or other means, and is labelled "For Upgrade Purposes Only", you may install one copy of such DEVICE Software onto the DEVICE as a replacement copy for the existing DEVICE Software and use it in accordance with this EULA, including any additional EULA terms accompanying the upgrade DEVICE Software.
-
Page 69: Java
Any changes in the security configuration are done under your responsibility. In no case shall Sagem Wireless and/or your network provider be liable for any damages deriving from or arising out of such changes in the security configuration. - Page 70 Single confirmation: the user is prompted to grant access authorizations the very first time a protected function is used by a MIDlet. It remains valid until the MIDlet is removed from the handset. Always: this security group grants access to the protected functions without conditions. A MIDIet can have two security states: "uncertified"...
- Page 71 You expressly acknowledge that the download of any applications including Java™ applications or games is done under your exclusive responsibility. In no event shall Sagem Wireless, your network service provider or their affiliates be liable for any lost profits or costs of procurement of substitute goods or services, loss of profits, interruptions of business, loss of data or for any special, indirect, incidental, economic, or consequential damages arising under contract, tort, negligence, or other theory of liability relating to the download of any application by any means, including Java™...
-
Page 72: Troubleshooting
Troubleshooting Cannot switch on the phone To switch on your phone, do a long press on the red key until vibrating starts. If it still won’t switch on, the battery is probably completely discharged. Connect the phone to the charger for between 5 and 30 minutes. The phone will switch on after being charged for a few minutes. - Page 73 The network could be saturated. Try later. If the problem persists, please contact your customer service. Cannot receive calls Try to make a call in order to check that the phone and the network are operational. Check and deactivate the permanent call forwarding (permanent call forwarding icon displayed).
-
Page 74: Customer Care
Customer care Customer Care e-mail address: OTsupport@sagemwireless.com Web Site: www.sagemwireless.com... -
