Vibrating Switches

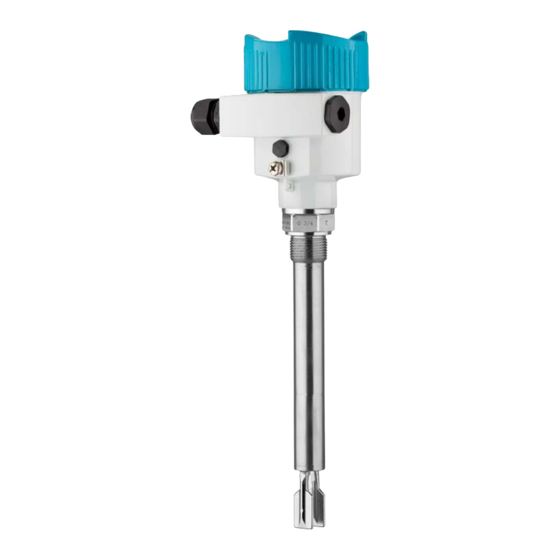

SITRANS LVL200E
Two-wire 8/16 mA
Operating Instructions • 01/2017

Advertisement

Table of Contents
loading

Related Manuals for Siemens SITRANS LVL200E

Summary of Contents for Siemens SITRANS LVL200E

  • Page 1 Vibrating Switches SITRANS LVL200E Two-wire 8/16 mA Operating Instructions • 01/2017...
  • Page 2 SITRANS LVL200E - Operating Instructions MAN-100411...

  • Page 3: Table Of Contents

    Rectify faults ........................30 Exchanging the electronics .................... 31 How to proceed if a repair is necessary ................31 Dismount Dismounting steps......................32 Disposal ......................... 32 Supplement Technical data ........................ 33 Dimensions ........................40 Trademark ........................43 MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 4 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2017-01-09 SITRANS LVL200E - Operating Instructions MAN-100411...

  • Page 5: About This Document

    This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 6: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The SITRANS LVL200E is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 7: Safety Label On The Instrument

    Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code Safety instructions for Ex areas Please note the Ex-specific safety information for installation and op- eration in Ex areas. These safety instructions are part of the operating instructions manual and come with the Ex-approved instruments. MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 8: Product Description

    – Safety Manual "Functional safety (SIL)" (optional) – Supplementary instructions manual "Plug connector for level sensors" (optional) – Ex-specific "Safety instructions" (with Ex versions) – If necessary, further certificates Constituent parts The SITRANS LVL200E consists of the components: • Housing lid • Housing with electronics •...

  • Page 9: Principle Of Operation

    Principle of operation Application area SITRANS LVL200E is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and can be used in liquids. Typical applications are overfill and dry run protection. The small tuning fork allows use in all kinds of tanks and vessels. Thanks to its simple and rugged measuring system, SITRANS LVL200E is virtually unaffected by the chemical and physical properties of the liquid.

  • Page 10: Storage And Transport

    JIS B 2210-1984, GOST 12821-80. You can find additional information in the supplementary instructions manual "Flanges according to DIN-EN-ASME-JIS". Electronics module The electronics module SW E60 is a replacement part for level switch- es SITRANS LVL200E. You can find information in the operating instructions manual of the electronics module. Lock fitting The lock fitting is used for for infinite locking with tube extension. The following lock fittings are available: SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 11 For connecting the sensors with a separator to voltage supply or sig- nal processing, the sensors are also available with plug connectors. The following plug connectors are available: • M12 x 1 • ISO 4400 • Harting HAN 7D • Harting HAN 8D • Amphenol-Tuchel MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 12: Mounting

    DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. Switching point In general, SITRANS LVL200E can be installed in any position. The instrument only has to be mounted in such a way that the tuning fork is at the height of the desired switching point.
  • Page 13 Switching point with higher density Switching point approx. 27 mm (1.06 in) Fig. 3: Horizontal installation Switching point Fig. 4: Horizontal installation (recommended mounting position, particularly for adhesive products) Switching point Marking with screwed version, facing up In the case of flange versions, the fork is aligned as follows. MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 14 "Technical data" meets the existing ambient conditions. Fig. 6: Measures against moisture ingress Caution: Transport Do not hold SITRANS LVL200E on the tuning fork. Particularly with flange or tube versions, the tuning fork can be damaged just by the weight of the instrument. Transport coated instruments very carefully and avoid touching the tuning fork.

  • Page 15: Mounting Instructions

    Mounting instructions Welded socket SITRANS LVL200E has a defined thread starting point. This means that every SITRANS LVL200E is in the same fork position after being screwed in. Remove therefore the supplied seal from the thread of SITRANS LVL200E. This seal is not required when using a welded socket with O-ring in front.
  • Page 16 SITRANS LVL200E at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. This applies particularly to instrument types with long extension tube. Fig. 8: Inflowing medium Product flow To make sure the tuning fork of SITRANS LVL200E generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 17 See "Technical data". Caution: If it is determined (e.g. via an error message from SITRANS LVL200E) that medium has already penetrated into the vibrating element, the instrument must be exchanged immediately.

  • Page 18: Connecting To Power Supply

    Cover all housing openings conforming to standard according to EN 60079-1. Connection procedure With Ex instruments, the housing cover may only be opened if there is no explosive atmosphere present. Proceed as follows: 1. Unscrew the housing lid SITRANS LVL200E - Operating Instructions MAN-100411...

  • Page 19: Wiring Plan, Single Chamber Housing

    Aluminium Stainless steel (not with Ex d) Stainless steel, electropolished (not with Ex d) Filter element for pressure compensation or blind plug with version IP 66/ IP 68, 1 bar (not with Ex d) MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 20 Connection terminals Processing system or PLC Wiring plan We recommend connecting SITRANS LVL200E in such a way that the switching circuit is open when there is a level signal, line break or failure (safe state). For connection to a SITRANS SCSC or SITRANS TCSC signal conditioning instrument dto.

  • Page 21: Wiring Plan - Version Ip 66/Ip 68, 1 Bar

    Wiring plan - version IP 66/IP 68, 1 bar Wire assignment, con- nection cable Fig. 13: Wire assignment, connection cable Brown (+) and blue (-) to power supply or to the processing system Shielding MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 22: Setup

    (SITRANS SCSC, SITRANS TCSC signal conditioning instruments). Note: Always immerse the tuning fork of SITRANS LVL200E in a liquid to test its function. Do not test the function of SITRANS LVL200E with your hand. This can damage the sensor.

  • Page 23: Function Table

    8 mA Overflow < 11.5 mA protection Green Mode A approx. > 12.5 mA 16 mA Overflow < 21 mA protection Mode B approx. > 12.5 mA 16 mA Dry run < 21 mA protection MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 24: Proof Test (Whg, Sil)

    Proof test (WHG, SIL) The implementation of the proof test according to WHG is stipulated in the general type approval, item 8. Take note of these higher-ranking approvals if SITRANS LVL200E Ex is used as part of an overfill protection system according to WHG. The following instrument combinations meet the requirements ac-...
  • Page 25 Check the results of the test. Make sure the connected downstream devices are activated dur- ing the function test. 2. Push the mode switch (min./max.) on the signal conditioning instrument. MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 26 If this is not the case, then there is a fault in the measuring sys- tem. Make sure the connected downstream devices are activated dur- ing the function test. 3 Short interruption of the This test is valid if you cannot change the vessel filling or cannot supply line to the sensor dismount the sensor. SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 27 Implementation - Function test When the SITRANS LVL200E is connected to a processing system or an SPLC, you have to interrupt the connection cable to the sensor for > 2 seconds. The switching delay must be set to 0.5 s.
  • Page 28 2. Empty 8 mA energized currentless energized signal (±1.5 mA) 1.5 s (±0.5 s) 3. Full signal 16 mA currentless energized energized (±1.5 mA) 1.5 s (±0.5 s) Starting time of the voltage supply SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 29 Make sure the connected downstream devices are activated during the function test. • Failure LED lights red - test not passed- Please check the com- plete measuring system. • Failure LED remains dark - test passed. The proof test is hence finished. MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 30: Maintenance And Fault Rectification

    Error on the vibrating el- Check if the vibrating element is damaged or extreme- ement ly corroded. Interference on the elec- Exchanging the electronics module tronics module instrument defective Exchange the instrument or send it in for repair SITRANS LVL200E - Operating Instructions MAN-100411...

  • Page 31: Exchanging The Electronics

    Keep in mind that enamelled instrument versions need special electronics modules. These electronics modules are called SW60E or SW60E1. How to proceed if a repair is necessary If it is necessary to repair the instrument, please con- tact Siemens. You find the locations on our homepage "www.siemens.com/processautomation". MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 32: Dismount

    WEEE directive. Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. SITRANS LVL200E - Operating Instructions MAN-100411...

  • Page 33: Supplement

    Ʋ Supporting material 316L Ʋ Glass potting Borosilicate glass - Schott no. 8421 Ʋ Contacts 1.4101 Ʋ Helium leak rate < 10 mbar l/s or gas-tight leadthrough MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 34 Ʋ Aluminium/Stainless steel housing max. 50 Nm (36.88 lbf ft) Gas-tight leadthrough (optional) Ʋ Leakage rate < 10 mbar l/s Ʋ Pressure resistance PN 64 High voltage test (enamel) max. 5 KV Output variable Output Two-wire output SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 35 (482 °F) (122 °F) (32 °F) (212 °F) (302 °F) (392 °F) Fig. 40: Influence of the process temperature on the switching point Shifting of the switching point in mm (in) Process temperature in °C (°F) Switching point at reference conditions (notch) Tuning fork MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 36 Shifting of the switching point in mm (in) Process pressure in bar (psig) Switching point at reference conditions (notch) Tuning fork Repeatability 0.1 mm (0.004 in) Hysteresis approx. 2 mm (0.08 in) with vertical installation Switching delay approx. 500 ms (on/off) Measuring frequency approx. 1200 Hz SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 37 100 bar/10000 kPa (1450 psig) at a maximum process temperature of +50 °C (+122 °F) (only with threaded versions). Process temperature (thread or flange temperature) Ʋ SITRANS LVL200E of 316L/Alloy C22 -50 … +150 °C (-58 … +302 °F) (2.4602) Process temperature (thread or flange temperature) with temperature adapter (option) Ʋ...
  • Page 38 0.1 … 10000 mPa s (requirement: with density 1) Flow velocity max. 6 m/s (with a viscosity of 10000 mPa s) Density Ʋ Standard sensitivity 0.7 … 2.5 g/cm³ (0.025 … 0.09 lbs/in³) Ʋ High sensitivity 0.5 … 2.5 g/cm³ (0.018 … 0.09 lbs/in³) Vibration resistance Ʋ Instrument housing 1 g at 5 … 200 Hz according to EN 60068-2-6 (vibration with resonance) Instrument configuration suitable for vapour SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 39 Ʋ Multiple channel architecture see supplementary instructions manual "Safety Manual (SIL)" Depending on the version M12 x 1, according to ISO 4400, Harting, 7/8" FF. A suitable cable is required for maintaining the protection rating. MAN-100411 SITRANS LVL200E - Operating Instructions...

  • Page 40: Dimensions

    ½ NPT Fig. 46: Housing versions in protection IP 66/IP 67 and IP 66/IP 68; 0.2 bar Plastic single chamber Stainless steel single chamber (electropolished) Stainless steel single chamber (precision casting) Aluminium - single chamber SITRANS LVL200E - Operating Instructions MAN-100411...
  • Page 41 "NPT G1A, 1"NPT ø 21,3 mm (0.84") ø 33,7 mm (1.33") Fig. 47: SITRANS LVL200E Thread Clamp Cone DN 25 Slotted nut DN 40 Flange Tuchenhagen Varivent = Sensor length, see chapter "Technical data" MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 42 SITRANS LVL200E, options Fig. 48: Options Gas-tight leadthrough Temperature adapter SITRANS LVL200E - Operating Instructions MAN-100411...

  • Page 43: Trademark

    Trademark All the brands as well as trade and company names used are property of their lawful proprietor/ originator. MAN-100411 SITRANS LVL200E - Operating Instructions...
  • Page 44 For more information www.siemens.com/level www.siemens.com/weighing Siemens Canada Limited Subject to change without prior notice PD PA PI LW MAN-100411 Rev. 0.0 1954 Technology Drive P.O. Box 4225 © Siemens AG 2017 Peterborough, ON K9J 7B1, Canada email: techpubs.smpi@siemens.com Printed in Canada www.siemens.com/processautomation...
