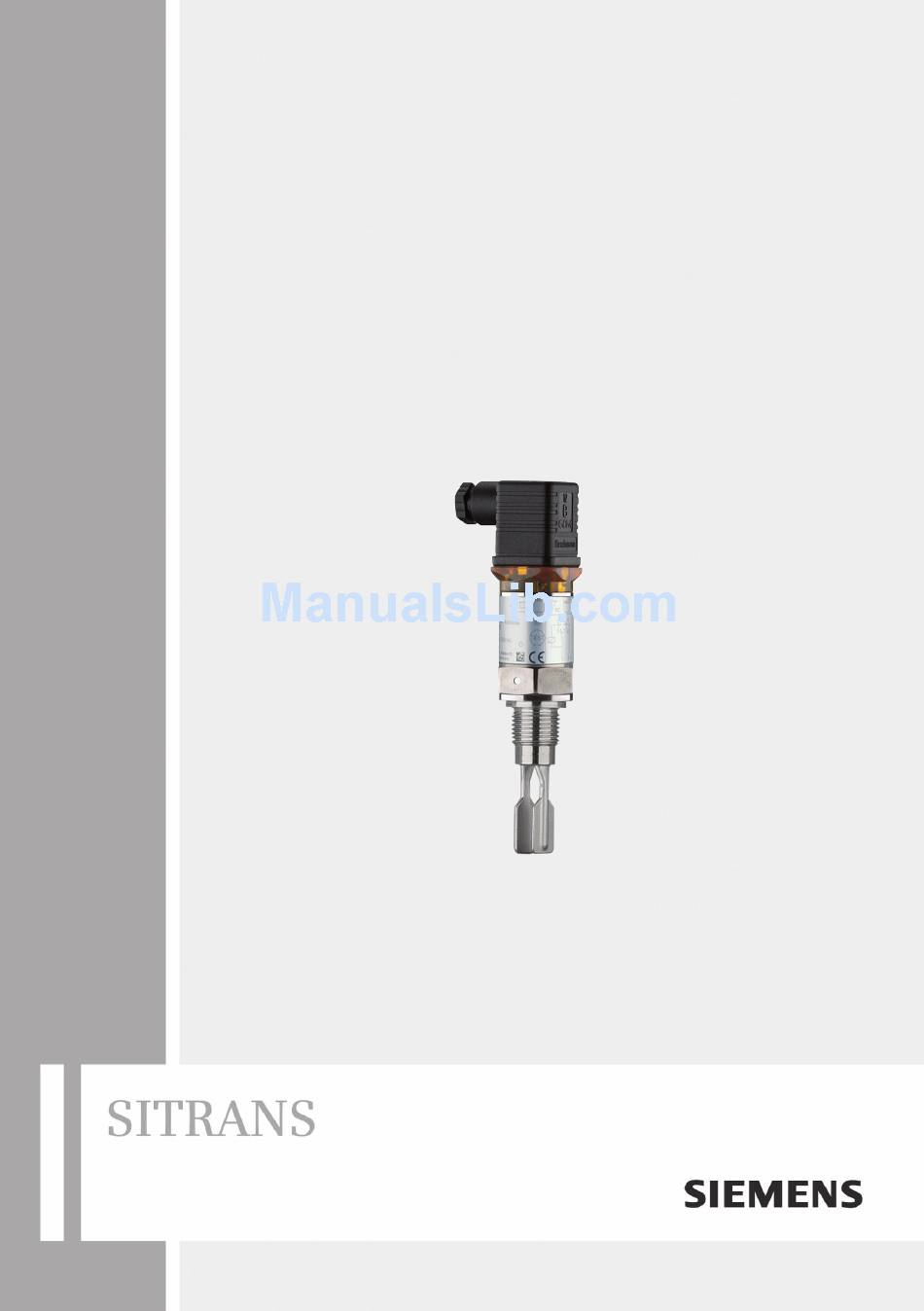

- Page 1 Vibrating Switches SITRANS LVL100 - transistor (PNP) Operating Instructions • 07/2013...
- Page 2 SITRANS LVL100 - Operating Instructions...
- Page 3 Function chart ........................ 19 7 Maintenance and fault rectification Maintenance ........................20 Rectify faults ........................20 Instrument repair ......................20 Dismounting Dismounting steps......................21 Disposal ......................... 21 Supplement Technical data ........................ 22 Dimensions ........................25 Editing status: 2013-07-10 SITRANS LVL100 - Operating Instructions...
-
Page 4: About This Document
Action This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. SITRANS LVL100 - Operating Instructions... -
Page 5: For Your Safety
During work on and with the device the required personal protective equipment must always be worn. Appropriate use The SITRANS LVL100 is a sensor for point level detection. You can find detailed information on the application range in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 6: Ce Conformity
CE conformity The device fulfills the legal requirements of the applicable EC guide- lines. By affixing the CE marking, we confirm successful testing of the product. SITRANS LVL100 - Operating Instructions... -
Page 7: Product Description
Article numbers, documentation Principle of operation Application area SITRANS LVL100 is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and can be used in liquids. -
Page 8: Adjustment
Voltage supply SITRANS LVL100 is a compact instrument, i.e. it can be oper- ated without external evaluation system. The integrated electronics evaluates the level signal and outputs a switching signal. With this switching signal, a connected device can be operated directly (e.g. a... - Page 9 Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % SITRANS LVL100 - Operating Instructions...
-
Page 10: Mounting 4.1 General Instructions
You can find the specifications in chapter "Technical data" and on the nameplate. Switching point In general, SITRANS LVL100 can be installed in any position. The instrument only has to be mounted in such a way that the tuning fork is at the height of the desired switching point. - Page 11 Moisture Use the recommended cables (see chapter "Connecting to power supply") and tighten the cable gland. You can give your SITRANS LVL100 additional protection against moisture penetration by leading the connection cable downward in front of the cable entry. Rain and condensation water can thus drain off. This applies mainly to outdoor mounting as well as installation in...
-
Page 12: Mounting Instructions
The position of the tuning fork is indicated by a marking on the hexagon of SITRANS LVL100. With this, you can check the position of the tuning fork when screwing it in. When the hexagon touches the seal, the thread can still be turned by approx. - Page 13 For this reason, mount SITRANS LVL100 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. Flows To make sure the tuning fork of SITRANS LVL100 generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. SITRANS LVL100 - Operating Instructions...
-
Page 14: Connecting To Power Supply 5.1 Preparing The Connection
Wiring plan Housing overview Fig. 7: Overview of the connection versions M12 x 1 plug connection Valve plug ISO 4400 Valve plug ISO 4400 with IDC method of termination SITRANS LVL100 - Operating Instructions... - Page 15 For this plug version you can use standard cable with round wire cross-section. The inner conductors do not have to be stripped. The plug connects the conductors automatically when screwing in. Cable diameter 5.5 … 8 mm, protection IP 67. SITRANS LVL100 - Operating Instructions...
- Page 16 Terminal insert Plug housing Transistor output For connection to binary inputs of a PLC. Max. Min. Fig. 10: Wiring plan, Transistor output with valve plug ISO 4400 PA Potential equalisation Load resistance (contactor, relay, etc.) SITRANS LVL100 - Operating Instructions...
- Page 17 Min. Max. Fig. 11: Wiring plan (housing), transistor output with M12 x 1 plug connection Brown White Blue Black Load resistance (contactor, relay, etc.) SITRANS LVL100 - Operating Instructions...
-
Page 18: Setup 6.1 Indication Of The Switching Status
You can check the change on the signal lamp. Please note that all connected device are activated during the simulation. If SITRANS LVL100 does not switch over after several tests with the test magnet, you have to check the plug connection and the con- nection cable and try it again. -
Page 19: Function Chart
Level Switching sta- Control lamp Control lamp Control lamp Yellow - cov- Green - voltage Red - fault sig- erage indication Mode max. closed Mode max. open Mode min. closed Mode min. open Fault open SITRANS LVL100 - Operating Instructions... -
Page 20: Maintenance And Fault Rectification 7.1 Maintenance
Depending on the reason for the fault and the measures taken, the fication steps described in chapter "Set up" may have to be carried out again. Instrument repair If it is necessary to repair the instrument, please contact Siemens Milltronics Process Instruments Inc. You find the locations on our homepage "www.siemens.com/processautomation". SITRANS LVL100 - Operating Instructions... -
Page 21: Dismounting 8.1 Dismounting Steps
WEEE directive. Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. SITRANS LVL100 - Operating Instructions... -
Page 22: Technical Data
Ʋ Hygienic version < 0.8 µm (3.15 Measuring accuracy Hysteresis approx. 2 mm (0.08 in) with vertical installation Switching delay approx. 500 ms (on/off) Measuring frequency approx. 1100 Hz Ambient conditions Ambient temperature on the housing -40 … +70 °C (-40 … +158 °F) Storage and transport temperature -40 … +80 °C (-40 … +176 °F) Process conditions Process pressure -1 … 64 bar/-100 … 6400 kPa (-14.5 … 928 psig) Process temperature - Standard -40 … +100 °C (-40 … +212 °F) SITRANS LVL100 - Operating Instructions... - Page 23 Process temperature in °C (°F) Viscosity - dynamic 0.1 … 10000 mPa s Flow velocity max. 6 m/s (with a viscosity of 10000 mPa s) Density 0.7 … 2.5 g/cm³ (0.025 … 0.09 lbs/in³) Adjustment Plug connections Specification see "Connecting to power supply" Signal lamps (LED) Ʋ Green Voltage supply on Ʋ Yellow Vibrating element covered Ʋ Red Fault SITRANS LVL100 - Operating Instructions...
- Page 24 Ʋ Valve plug ISO 4400 with IDC method IP 67 of termination Ʋ M12 x 1 plug connection IP 66/IP 67 or IP 68 (0.2 bar) Overvoltage category Protection class Approvals Depending on the version, instruments with approvals can have different technical data. For these instruments, please note the corresponding approval documents. They are included in the scope of delivery. SITRANS LVL100 - Operating Instructions...
-
Page 25: Dimensions
(0.67") (0.84") (0.84") Fig. 33: SITRANS LVL100, standard version - thread Thread G½ (DIN ISO 228/1), ½ NPT (M12 x 1) Thread G¾ (DIN ISO 228/1), ¾ NPT (valve plug ISO 4400) Thread G1 (DIN ISO 228/1), 1 NPT (valve plug ISO 4400 with DC method of termination) Switching point Keep in mind that the total length is extended by the plug connection. - Page 26 ø 21,3 mm (0.84") Fig. 34: SITRANS LVL100, standard version - thread G¾, G1, ¾ NPT, 1 NPT Thread G¾, G1 (DIN ISO 228/1), ¾ NPT or 1 NPT (M12 x 1) Thread G¾, G1 (DIN ISO 228/1), ¾ NPT or 1 NPT (valve plug ISO 4400) Thread G¾, G1 (DIN ISO 228/1), ¾...
- Page 27 ø 21,3 mm (0.84") Fig. 35: SITRANS LVL100, high temperature version Thread G½, G¾, G1 (DIN ISO 228/1), ½ NPT, ¾ NPT or 1 NPT (M12 x 1) Thread G½, G¾, G1 (DIN ISO 228/1), ½ NPT, ¾ NPT or 1 NPT (valve plug ISO 4400) Thread G½, G¾, G1 (DIN ISO 228/1), ½...
- Page 28 SITRANS LVL100, hygienic versions ø 21,3 mm (0.84") Fig. 36: SITRANS LVL100, hygienic versions Clamp (valve plug ISO 4400) Bolting (valve plug ISO 4400) SMS 1145 (valve plug ISO 4400) Switching point Length with Clamp: 53 mm (2.1 in) Length with bolting: 53 mm (2.1 in) Length with SMS 1145: 53 mm (2.1 in)
- Page 29 Notes SITRANS LVL100 - Operating Instructions...
- Page 30 Notes SITRANS LVL100 - Operating Instructions...
- Page 31 Notes SITRANS LVL100 - Operating Instructions...
-
Page 32: For More Information
For more information www.siemens.com/level www.siemens.com/weighing Siemens AG Subject to change without prior notice Industry sector Rev. 1.0 1954 Technology Drive P.O. Box 4225 © Siemens AG 2014 Peterborough. ON Canada K9J7B1 email: techpubs.smpi@siemens.com www.siemens.com/processautomation...
