REAR PANEL INTRODUCTION

AUX
10.5
5
6
Phone jack connector
5

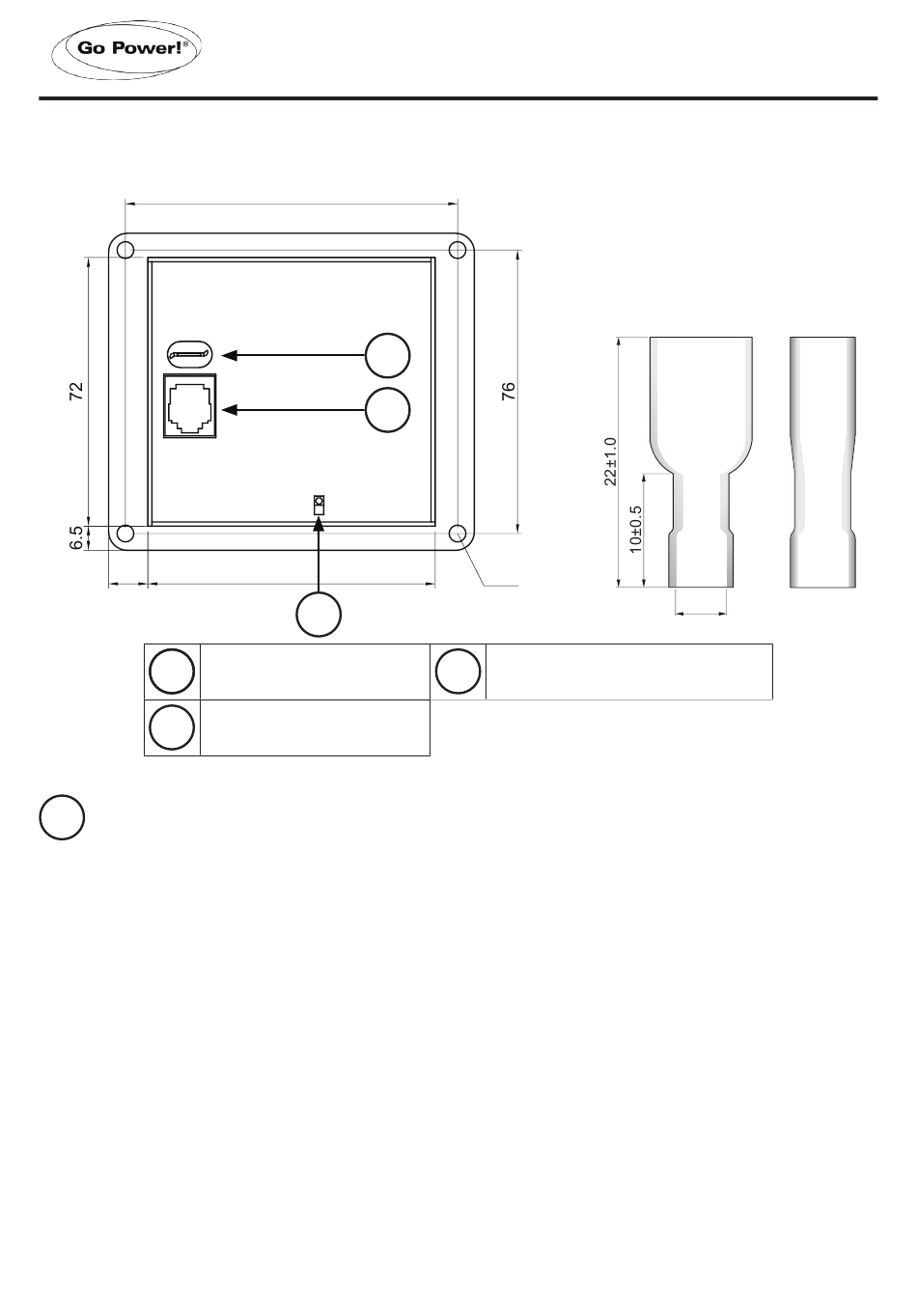

AUX PORT
Note: the AUX port is only used in work trucks.
The connector (shown above) attached to AUX wire (AWG 14 or 16) must be con-
nected with a 12V / 0.5A fuse.
• Ignition Lockout function:
Turns OFF the inverter when the auxiliary input wiring is connected to the ACC
with 12 volts.
• Return Override function:
Turns ON the inverter when the auxiliary input wiring is connected to the
reversed gear shift with 12 volts.
89
5
6
77
7
AUX port
4. INTRODUCTION
Ø4.5
7
JP1
Connector
Ø4.5±0.3
