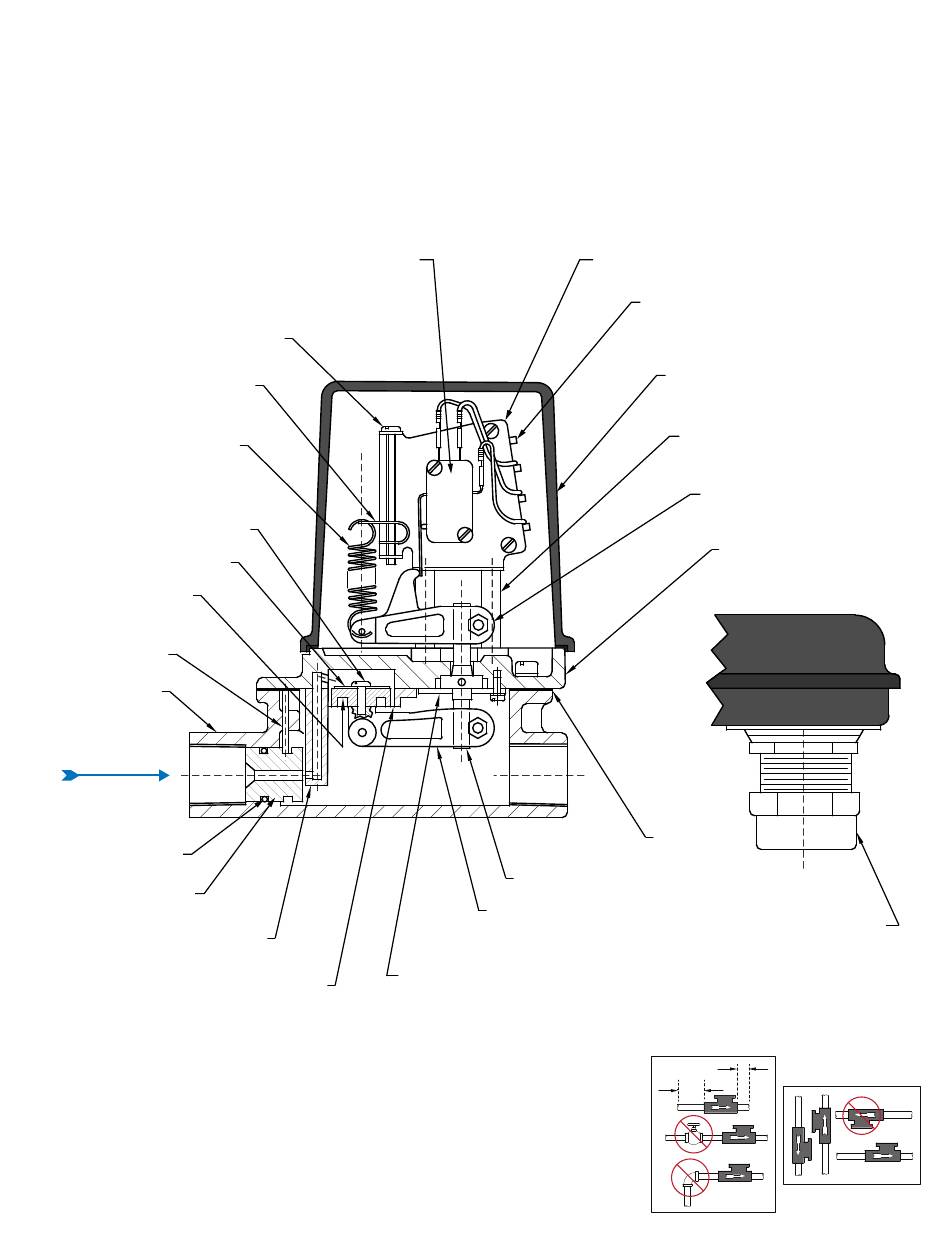

MODEL Q-1
Q-1, QD-1
MICROSWITCH (2 REQ'D FOR QD-1)
DRY CIRCUIT MICROSWITCH SPDT 0.1A 125 VAC (OPTIONAL)
3 WIRES W/ CRIMPED TERMINALS (6 TERMINALS IN QD-1)
2 SCREWS, NUTS, AND LOCKWASHERS
LEADSCREW
LEADSCREW NUT
SPRING
DIAPHRAGM SCREW
DIAPHRAGM WASHER
DIAPHRAGM PISTON
ORIFICE PIN
BODY CASTING
O-RING
ORIFICE
DIAPHRAGM RING
4 SCREWS & LOCKWASHERS
ROLLING DIAPHRAGM
INSTALLATION INSTRUCTIONS
SPDT 15A 125/250 VAC
CLAMP WASHER
3 SCREWS & LOCKWASHERS
FLUID FLOW SWITCH
ULTRA RELIABLE SINCE 1956
BRACKET
FEEDTHRU SHAFT ASSEMBLY
LOWER BEAM ASSY
SCREW, NUT & LOCKWASHER
PARTS LIST
HARWIL CORPORATION
541 KINETIC DRIVE, OXNARD, CA 93030
TEL: (805) 988-6800 FAX: (805) 988-6804
EMAIL: HARWIL@HARWIL.COM
TERMINAL STRIP (NOT SUPPLIED WITH QD-1)
2 SCREWS, NUTS, AND LOCKWASHERS
COVER CASTING
COVER SEAL AND SCREW ASSEMBLY
STANDOFF
2 SCREWS & LOCKWASHERS
UPPER BEAM ASSEMBLY
SCREW, NUT & LOCKWASHERS
LID CASTING
8 SCREWS & LOCKWASHERS
GASKET
PART SIDE VIEW
CABLE CONNECTOR
TURBULENT
2D
FLOW REDUCTION
5D
MOUNT IN
THREE POSITIONS
