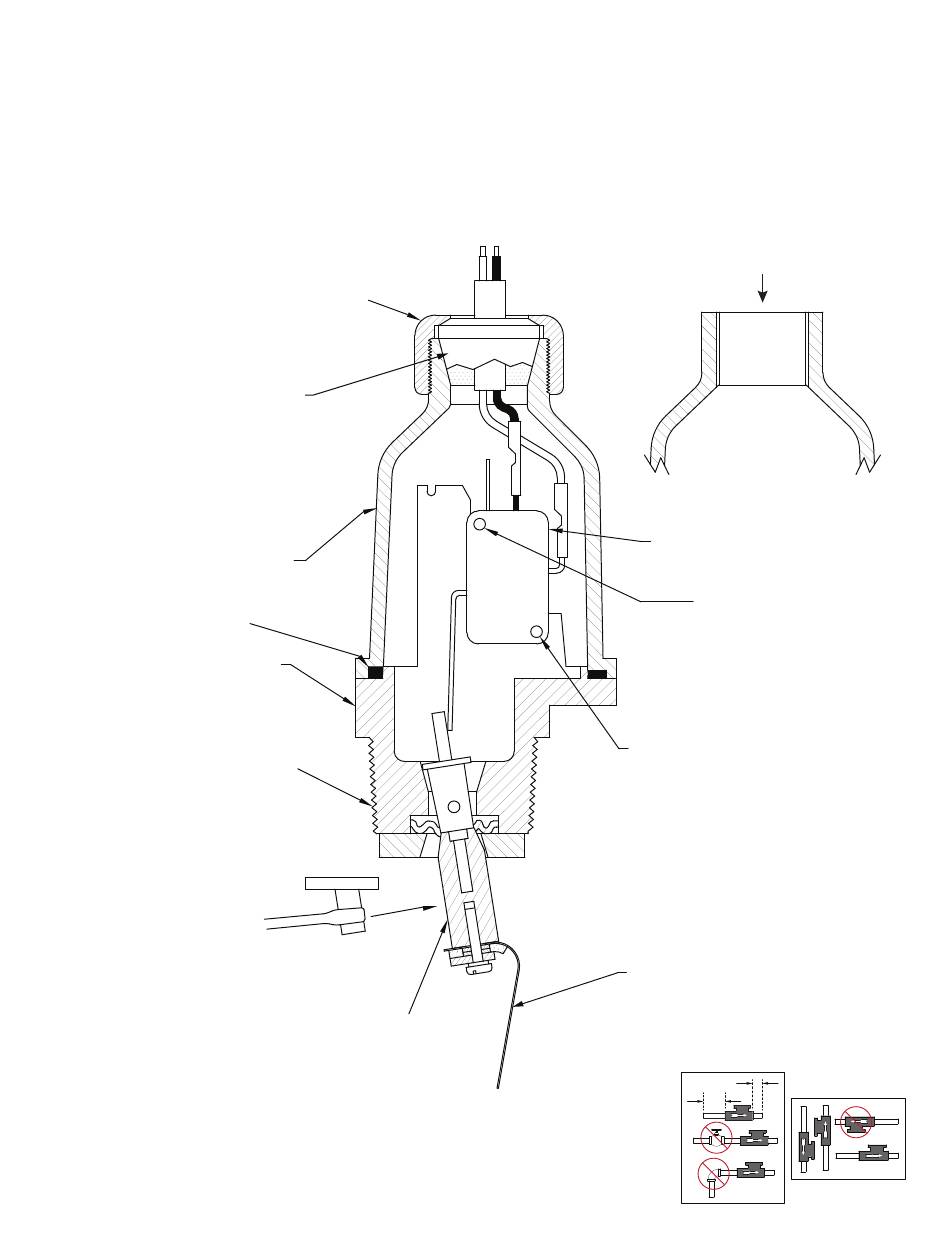

MODEL Q-8DS
GROMMET 'A'
GROMMET 'AA'
GROMMET 'B'
GROMMET 'C'
SWITCH COVER
4 RETAINING SCREWS
(NOT SHOWN)
"F" COVER
O-RING
BODY, COMPLETE WITH
FEED THRU SHAFT ASSEMBLY
(SEE PARTS LIST)
DO NOT ATTEMPT TO REMOVE
DRAG STRIP WITHOUT FIRST
GRIPPING SEAL SHAFT TO
PREVENT BREAKING OF SEAL
BY UNTHREADING FROM FEED
INSTALLATION INSTRUCTION SHEET
STRAIN RELIEF NUT
1" NPT
THRU SHAFT.
FLUID FLOW SWITCH
ULTRA RELIABLE SINCE 1956
PARTS LIST
HARWIL CORPORATION
541 KINETIC DRIVE, OXNARD, CA 93030
TEL: (805) 988-6800 FAX: (805) 988-6804
EMAIL: HARWIL@HARWIL.COM
"F" COVER TO SUIT CUSTOMER
SUPPLIED FITTING FOR ½"
FLEXIBLE CONDUIT
MICROSWITCH COMPLETE
W/ 2 SLIP-ON TERMINALS
SCREW x ¾" LG
NUT
PLAIN WASHER
SPLIT LOCKWASHER
SCREW x 7/8" LG
NUT
PLAIN WASHER
SPLIT LOCKWASHER
DRAG STRIP
CLAMP WASHER
DAMPENER WASHER
SCREW x 3/8" LG
2 PLAIN WASHERS
SPLIT LOCKWASHER
TURBULENT
2D
FLOW REDUCTION
5D
MOUNT IN
THREE POSITIONS
P. 1
Advertisement
Related Manuals for Harwil Q-8DS
Summary of Contents for Harwil Q-8DS
- Page 1 MODEL Q-8DS HARWIL CORPORATION 541 KINETIC DRIVE, OXNARD, CA 93030 TEL: (805) 988-6800 FAX: (805) 988-6804 EMAIL: HARWIL@HARWIL.COM INSTALLATION INSTRUCTION SHEET “F” COVER TO SUIT CUSTOMER SUPPLIED FITTING FOR ½” FLEXIBLE CONDUIT STRAIN RELIEF NUT GROMMET ‘A’ GROMMET ‘AA’ GROMMET ‘B’...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Model Q-8DS is normally mounted in a 1½” x 1½” x 1” or 2” x 1” SST PVC Tee, which may be plumbed into the system in vertical or horizontal lines, right side up or inverted using normal PVC pipe cement. - Page 3 MODEL Q-8DS HARWIL CORPORATION 541 KINETIC DRIVE, OXNARD, CA 93030 TEL: (805) 988-6800 FAX: (805) 988-6804 EMAIL: HARWIL@HARWIL.COM Q-8DS (SERIES 65000) PART NAME PART # PART NAME PART # BODY WITH SWITCH BRACKET 65101 DRAG STRIP (OPTIONAL) FEED THRU SHAFT...
- Page 4 Inasmuch as these data are based on tests by entities over which HARWIL has no control, HARWIL DOES NOT GUARANTEE AND DOES NOT ACCEPT ANY RESPONSIBILITY FOR THE ACCURACY OF SUCH THIRD PARTY TESTING.
