- Page 1 MF28B User Manual ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755- 26779999 http://www.zte.com.cn E-mail: mobile@zte.com.cn...
- Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
-
Page 3: Table Of Contents
Content Welcome ..........................4 Getting started ........................5 Appearance........................5 LED Indicator ....................... 5 Interface Description ..................... 6 Installation ......................... 6 Inserting (U)SIM Card ....................6 Connecting to Computer ....................7 Connecting to LAN1/WAN ..................7 Connecting with External Power .................. 7 Switching on Your Device .................... -
Page 4: Welcome
Welcome Thank you for choosing ZTE MF28B Router (hereinafter referred to as “unit” or “router”). To get the most from your router and to keep it in the best condition, please read this manual carefully. The pictures, symbols and contents in this manual are for your reference only. They might not be completely identical with your router. -
Page 5: Getting Started

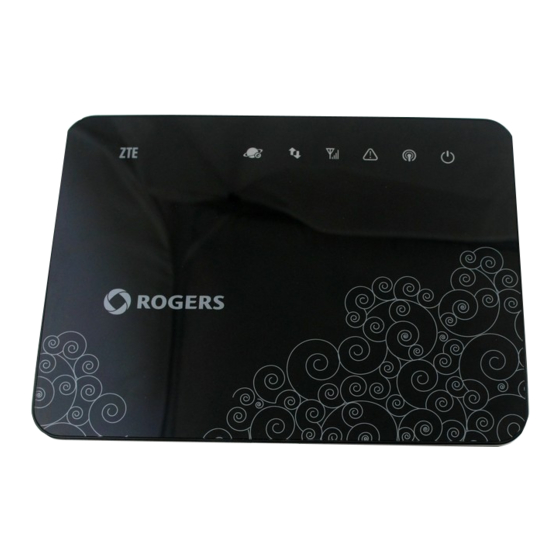

Getting started The router operates on the LTE/HSUPA/HSDPA/WCDMA network and supports data service. Appearance USB Port WPS Button LED Indicators (U)SIM Port Interface WPS button: Activate the PBC (Push Button Config) function. LED Indicator Indicator State Description 1 Network mode indication Blue Registered to 4G (LTE) network Green... -
Page 6: Interface Description
Blinking Error Status: No SIM card inserted, PIN enabled 4 Error indication without entering correct PIN code on Web UI, or Incorrect SIM card inserted when SIM lock enabled Always ON WLAN works normally without data transmission 5 Wi-Fi indication Blinking WLAN works normally with data transmission WLAN shut down... -
Page 7: Connecting To Computer
Notes: Please power off the router and remove the external power adapter before removing or inserting the (U)SIM card. If not, the router or (U)SIM card may be damaged. About (U)SIM Card Avoid handling the (U)SIM card unnecessarily. Hold the card by the edges to prevent static damage. Keep the (U)SIM card away from electrical and magnetic appliances. -
Page 8: Power Supply
Notes: If the net mode indication LED is blinking constantly, try to move the router to another location. The router takes 1~2 minutes to initialize, attach to the network and obtain an IP address. Power Supply For normal operation, connect the router to the external power adapter. In case of power failure or when there is no available external power supply, the router will not work. -
Page 9: Internet Access
Internet Access The router does not require any drivers, and it supports all operating systems with Ethernet LAN capability, such as Windows XP, Vista, Windows 7, MAC OS X and Linux. The router supports at least four computers surfing on internet using Ethernet cable at the same time. Note: All the parameter settings in this chapter are just for your reference. -
Page 10: Accessing The Internet
Notes Then there will be a pop-up window to require the password. You can connect the device with the computer by RJ45 Ethernet cable, and then login the WebGUI to gain the SSID and password by selecting Settings > Wi-Fi Settings > Security. 4. -
Page 11: Login
Login In the Web GUI Configuration page, select the desired language and input the password (the default Password is admin). Click Login to log in the device. Notes: If you check Save after type in password, the device will save it. Next time when you want to login the device with the same password, what you need to do is click Login. -
Page 12: Operation Mode
Operation Mode When you login the web GUI, you need to choose the operation mode to make the correct setting. There are three operation modes: • Bridge：Connect to Internet by Dial-up program on computer. • Cable Broadband: Connect to Internet by WAN. •... -
Page 13: Wan Connection
Please choose the correct operation mode according to your actual network condition. For detailed information, please contact network operator. Click Apply to finish the setting. WAN Connection In Cable Broadband mode Click WAN Connection, you can configure how to connect to the Internet. PPPoE Select PPPoE，input the User Name and Password supplied by the network provider, and select the Connect mode. -
Page 14: In 4G Gateway Mode
DHCP Select DHCP to access the following interface: Click Apply to confirm your configuration. In 4G Gateway mode Dial Up Click WAN Connection > Connection, you can configure how to connect to the Internet. There are two connection modes: Auto Connect: The router will automatically connect to WAN when it is powered on. •... -
Page 15: Settings
Profile Name: The name of the profile. APN: Access Point Name. • • PDP Type: Packet Data Protocol (PDP) Type IP is recommended unless service provider instructs others. PDP Setting: PDP address mode. If a fixed IP address is given by your service provider, select Manual •... -
Page 16: Wi-Fi Settings
Wi-Fi Settings Station list Select Settings > Wi-Fi Setting > Station List, the wireless network stations are shown in the following figure: Basic Select Settings > Wi-Fi Setting > Basic, the wireless network basic parameters are shown in the following figure: •... - Page 17 AP Isolation: When Enabled is selected, each of your wireless clients will not be able to communicate • with each other. Otherwise, the wireless communication via WLAN is available. Frequency(Channel): Choose the appropriate channel to optimize the performance and coverage of •...
-
Page 18: Firewall
Unless one of these encryption modes is selected, wireless transmissions to and from your wireless network can be easily intercepted and interpreted by unauthorized users. The security modes are described below: • Open: You can authenticate successfully with a SSID, whether it is valid or empty. WPA-PSK/WPA2-PSK: Apply both the WPA-PSK and WPA2-PSK scheme. - Page 19 If you select Enable, the filter settings will appear: MAC address: Set the MAC address that will be filtered. • • Dest IP Address: Set the destination IP address that will be filtered. Source IP Address: Set the source IP address that will be filtered. •...
- Page 20 Notes: Filtering rules are matched one by one, if met this provision, it will not continue to match the rules listed below. The maximum rules counts 10. Click Apply to confirm your configuration. Click Delete to delete the rule which you selected. Click Reset to clear what you select or input.
- Page 21 If you select Enable, the Virtual Server Settings will appear: IP Address: Set IP address for the virtual server. • Port Range: Set port numbers for the virtual server. • Protocol: Set protocol for the virtual server. • • Comment: Type comment for the virtual server settings. Click Apply to confirm your configuration.
-
Page 22: Advanced
If you select Enable, input the DMZ IP Address, and then click Apply to confirm your configuration. System Security You can configure system firewall to protect AP or router from being attacking. Select Firewall > System Security, the system security setting is shown in the following figure: Allow or Deny the remote management function, Allow or Deny ping from WAN filter on requirement, and then click Apply. - Page 23 Select Settings > Advanced > Management, the administrator settings information is shown in the following figure: You can change the login password. Click Apply to confirm your configuration. Restore Select Settings > Advanced > Reset, click Reset to set all the settings to the factory default values, and then the device will restart automatically.
- Page 24 If you select Modify, the following page will display: Input the old PIN code, and then input the new PIN code two times. Click Apply to confirm your configuration. Notes: Consecutive inputting wrong PIN code for three times will cause locking of (U)SIM card. To unlock, you need PUK code.
- Page 25 IP Address: IP address for LAN interface. • • Subnet Mask: Subnet mask for the IP address. MAC Address: MAC address for the LAN interface. • DHCP Server: Enable or disable DHCP Server function. • DHCP IP Pool: Allocate begin and end IP address for IP pool. •...
-
Page 26: Status
You can select Manual Set Time or SntP auto Synchronization, and then click Apply to confirm your configuration.. Status Basic Status Select Status > Basic Status, the system information is shown in the following figure: Network Status Select Status > Network Status, the system information is shown in the following figure: Usage of WPS If your client device supports WPS, you need not to input the password manually after WPS has... -
Page 27: Logout
been available. Please do the following: 1. Start up your device. 2. Launch the client device connected to your device. 3. Enable the WPS function of your device. 4. Enable the WPS function of the client. Notes: Enable the WPS function of the client within 2 minutes, otherwise reactivate WPS function. For the detailed operations about the client, please refer to the client’s instruction. -
Page 28: Troubleshooting
Troubleshooting Internet Related Problems Symptoms Possible Problems/ Solutions I cannot access the internet at all. Please check your configuration settings. Please wait 1~ 2 minutes for the router to initialize. Check your service indicator LED’s. The download or upload speeds are very slow. The speed is dependent on signal strength. -
Page 29: Glossary
Glossary 3G: Third Generation. 4G: Fourth Generation. APN: Access Point Name DHCP: Dynamic Host Configuration Protocol. DHCP Server: A server or service with a server that assigns IP addresses. Firewall: A hardware or software boundary that protects a network or single computer from unwanted outside traffic. -
Page 30: General Information
Do not use your router in dangerous environments such as oil terminals or chemical factories where there • are explosive gases or explosive products being processed. Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may • affect the router performance, damage the router or cause danger to you. - Page 31 Immediately following the above notice, the manufacturer shall provide a list of all antenna types approved for use with the transmitter, indicating the maximum permission antenna gain（in dBi）and required impedance for each. Confidential and Proprietary Information of ZTE CORPORATION 31...
-
Page 32: Limited Warranty
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this product, whether or not ZTE had been advised, knew or should have known of the possibility of such damages, including, but not limited to lost profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime cost.
