Ryobi RBV26B Operator's Manual

Blower / vacuum
Hide thumbs Also See for RBV26B:
Table of Contents

Advertisement

Quick Links

See also: User Manual
RBV26B
BLOWER / VACUUM
OPERATOR'S MANUAL
WARNING!
It is essential that you read the instructions in this manual before assembling, operating
and maintaining this machine.
(ORIGINAL INSTRUCTIONS)

Advertisement

Table of Contents
loading

Related Manuals for Ryobi RBV26B

Summary of Contents for Ryobi RBV26B

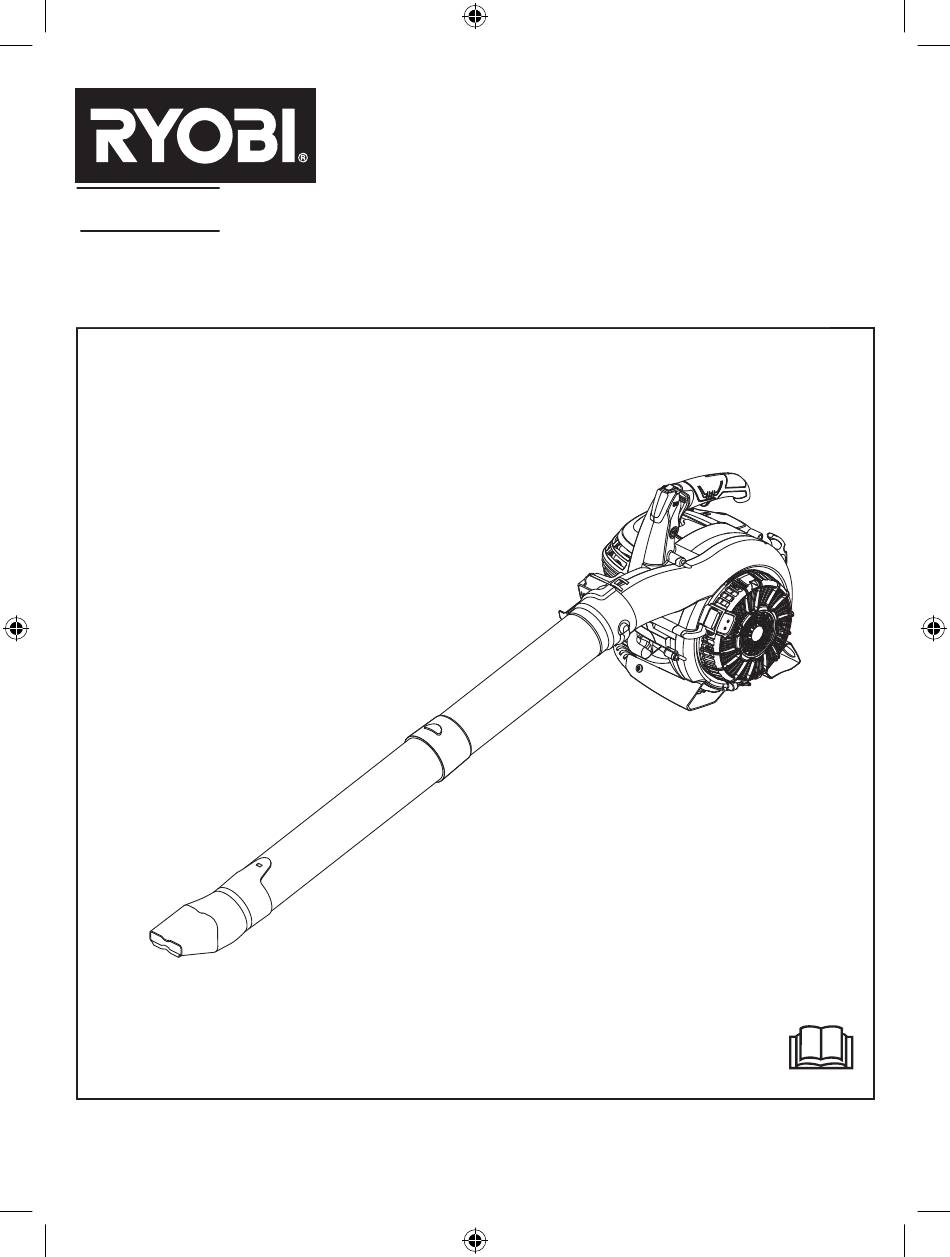

  • Page 1 RBV26B BLOWER / VACUUM OPERATOR’S MANUAL (ORIGINAL INSTRUCTIONS) WARNING! It is essential that you read the instructions in this manual before assembling, operating and maintaining this machine.

  • Page 2: General Safety Warnings

    English (Original instructions) be disturbed. WARNING ■ Use rakes and brooms to loosen debris before When using the product, the safety rules must be blowing/vacuuming. followed. For your own safety and that of bystanders, ■ Never operate the product in an explosive atmosphere. please read these instructions before operating the product.

  • Page 3: Blower Safety Warnings

    English (Original instructions) ■ For refueling and fuel mixing, chose an area away from WARNING sources of ignition (sparks, flames etc.), flammable materials and which is well ventilated. Your blower/vacuum product may be supplied with a harness. Carefully adjust the harness to comfortably ■...

  • Page 4: Intended Use

    English (Original instructions) the cinders are completely cool. Dangerous feed orifice. Rotating fans. Keep hands and feet out of the openings INTENDED USE while the product is running. The product is only intended for use outdoors in a well ventilated area. Guaranteed sound power level is 107 dB.
  • Page 5 English (Original instructions) 31. Air filter cover TO START A COLD ENGINE: 32. Air filter dial - turn to open or close air filter 1. Lock the cruise control. 33. Air filter 2. Set the ignition switch to the "I" position. 34.
  • Page 6 English (Original instructions) VACUUM TUBES ■ Connect the nozzle. The vacuum tubes can be installed on the blower using a ■ To remove the blower tube, pull out the slider from the cross-head screwdriver. positive switch, then rotate the tubes to remove them from the blower housing outlet.

  • Page 7: Operation

    English (Original instructions) ■ Remove the vacuum tube assembly from the blower container according to the instructions on the oil pack- housing. age. ■ Close the vacuum inlet cover securely. Make sure the NOTE: This engine is certified to operate on unleaded metal contact on the inlet cover is inserted into the petrol intended for automotive use with an octane rating positive switch.

  • Page 8: Maintenance

    English (Original instructions) percentage of oxygenates more than that stated previ- ■ To engage the cruise control, pull the cruise control ously are NOT covered under warranty. lever back towards user and stop at the desired Petrol containing up to 10% ethanol by volume throttle setting.

  • Page 9: General Maintenance

    SPARK PLUG REPLACEMENT personal injury. This engine uses a Ryobi AC00160, Champion RCJ-6Y You can often make adjustments and repairs described or NGK BPMR7A spark plug with a .025 in. electrode here. For other repairs, have the blower/vacuum serviced gap.

  • Page 10: Product Specifications

    English (Original instructions) PRODUCT SPECIFICATIONS Engine displacement 26 cc Air velocity 325 km/h 11 m 3 /min Air volume Weight 4.4 kg Rated power 0.75 kW Engine speed (Max.) 10000 /min Engine speed (Idle) 2800 - 4600 /min Sound power level according to EN 15503:2009+A1:2013 Annex A (Blower / vacuum) : Racing 105.7 / 106.0 dB(A)

  • Page 11: Troubleshooting

    English (Original instructions) TROUBLESHOOTING Problem Possible Cause Solution Engine fails to start. No fuel in tank. Fill the tank. Spark plug shorted or fouled. Replace the spark plug. Spark plug broken (cracked • Replace the spark plug; or porcelain or electrodes broken; ignition lead wire shorted, broken, •...
  • Page 12 4. For servicing, the product must be sent or presented to a RYOBI authorized service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation.
  • Page 13 AUTHORISED SERVICE CENTRES ACD PLANT LTD C J Sinclair Limited ToolTech Industrial Equipment 145 Southbank Road 44 Victoria Road 227 E Dunhill Road, Macosquin Coundon St Peters Coleraine, Co Londonderry Coventry, West Midlands Broadstairs, Kent BT514LQ CV6 1FG CT10 2UG Phone: 028 70359493 Phone: 02476 594348 Phone: 01843 869400...

  • Page 14: Declaration Of Conformity

    Max-Eyth-Straße 10, 71364 Winnenden, Germany Herewith we declare that the product Blower / Vacuum Brand: Ryobi Model number: RBV26B Serial number range: 44438101000001 - 44438101999999 is in conformity with the following European Directives 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC, 2002/88/EC, 2004/26/EC, 2010/26/EU,...
  • Page 16 Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, Germany 960606014-02...
