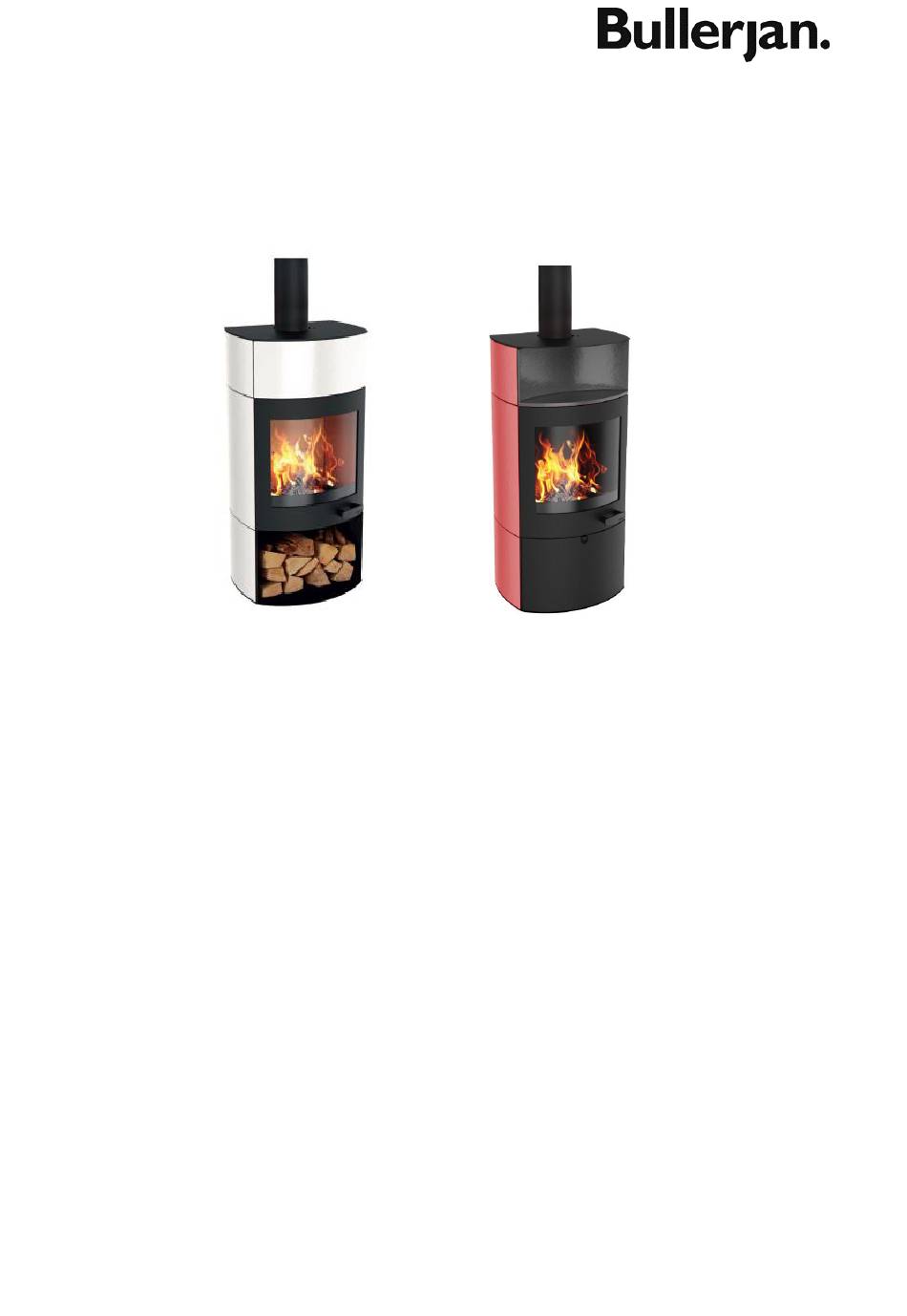

Installation Manual
4
Bullerjan B
Keramik and Keramik+
Please read these instructions carefully before starting the
installation!
We strongly recommend that the assembly be carried out in pairs and by
qualified personnel.
In addition, the following must be observed during assembly:
• Rubberized working gloves should be worn
• Always tighten all screws of the ceramics only hand-tight
• Always lay and place the ceramic on a soft surface
• The stove must be aligned horizontally before installing the ceramic
Advertisement
Related Manuals for Bullerjan B4 Keramik
Summary of Contents for Bullerjan B4 Keramik
- Page 1 Installation Manual Bullerjan B Keramik and Keramik+ Please read these instructions carefully before starting the installation! We strongly recommend that the assembly be carried out in pairs and by qualified personnel. In addition, the following must be observed during assembly: •...
- Page 2 IMPORTANT: If you want to use the flue gas nozzle at the back of the stove, the flue gas nozzle must be converted before the ceramic cladding is installed and the stove pipe must be connected. In addition, the backside of the stove has to be hung over the stove pipe at this time in order to be able to mount it later on to the stove.
- Page 3 1. Place the stove at its future 2. Use the height adjusters in the location before installing the base of the stove for alignment. ceramic parts. These can be adjusted with a Align the stove with a water 4er allen wrench a 13 mm open spirit level.
- Page 4 6. Loosen the screw connection of the 5. Now screw two of the shorter second holder and put it aside. threaded pins (M5 x 12) into Slightly loosen the two mounting the upper ceramic holder so screws of the lower holder (below that they are flush with the the stove).
- Page 5 9. Now attach the ceramic holder 10. Align the ceramic in such a way hand-tight to the stove for the that a gap of approx. 3-5 mm is created for the wood box. Now time being. tighten both the screws of the lower and the upper ceramic holder.
- Page 6 13. Repeat steps 7-12 for the 14. Now place the tea-shelf or front cover on the stove so opposite side. that the position pins on the stove are fully inserted into the component. 15. Use the holders to fix the front 16.
- Page 7 17. This is what you see when you 18. Before mounting the ceramic cover plate, two threaded have chosen a tea-shelf. pins (M8 x 50) must be screwed in. Furthermore, please turn one nut each (M8) on the pins. 21. Now place the ceramic cover plate on the stove.
- Page 8 22. The last step is to fix the rear wall of the stove. For further information, please contact: Bullerjan GmbH Neuwarmbüchener Str. 2 30916 Isernhagen Tel.: +49 (0)5136/9775-0 Email: info@bullerjan.com...
