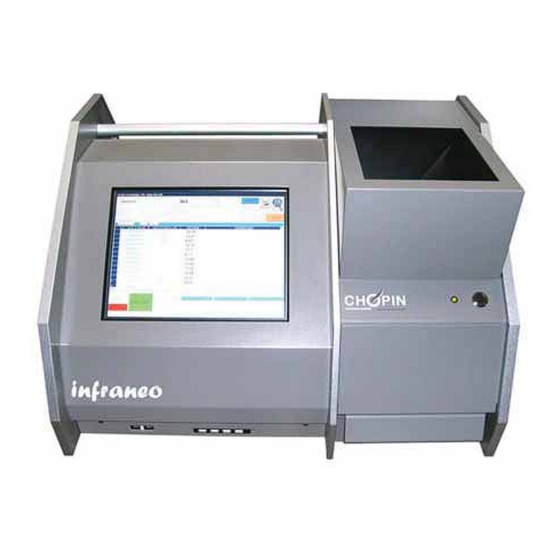

Chopin Infraneo Maintenance Manual

Hide thumbs Also See for Infraneo:
Table of Contents

Advertisement

Quick Links

INFRANEO
Maintenance Manual
MM-INFRANEO-EN Ind. 0 - 12/2012
20, avenue Marcellin Berthelot - Z.I. du Val de Seine
92396 Villeneuve La Garenne cedex - France
Tél. : 33 (0)1 41 47 50 88 - Fax. : 33 (0)1 47 92 28 27
www.chopin.fr
www.chopinservice.com

Advertisement

Table of Contents
loading

Related Manuals for Chopin Infraneo

Summary of Contents for Chopin Infraneo

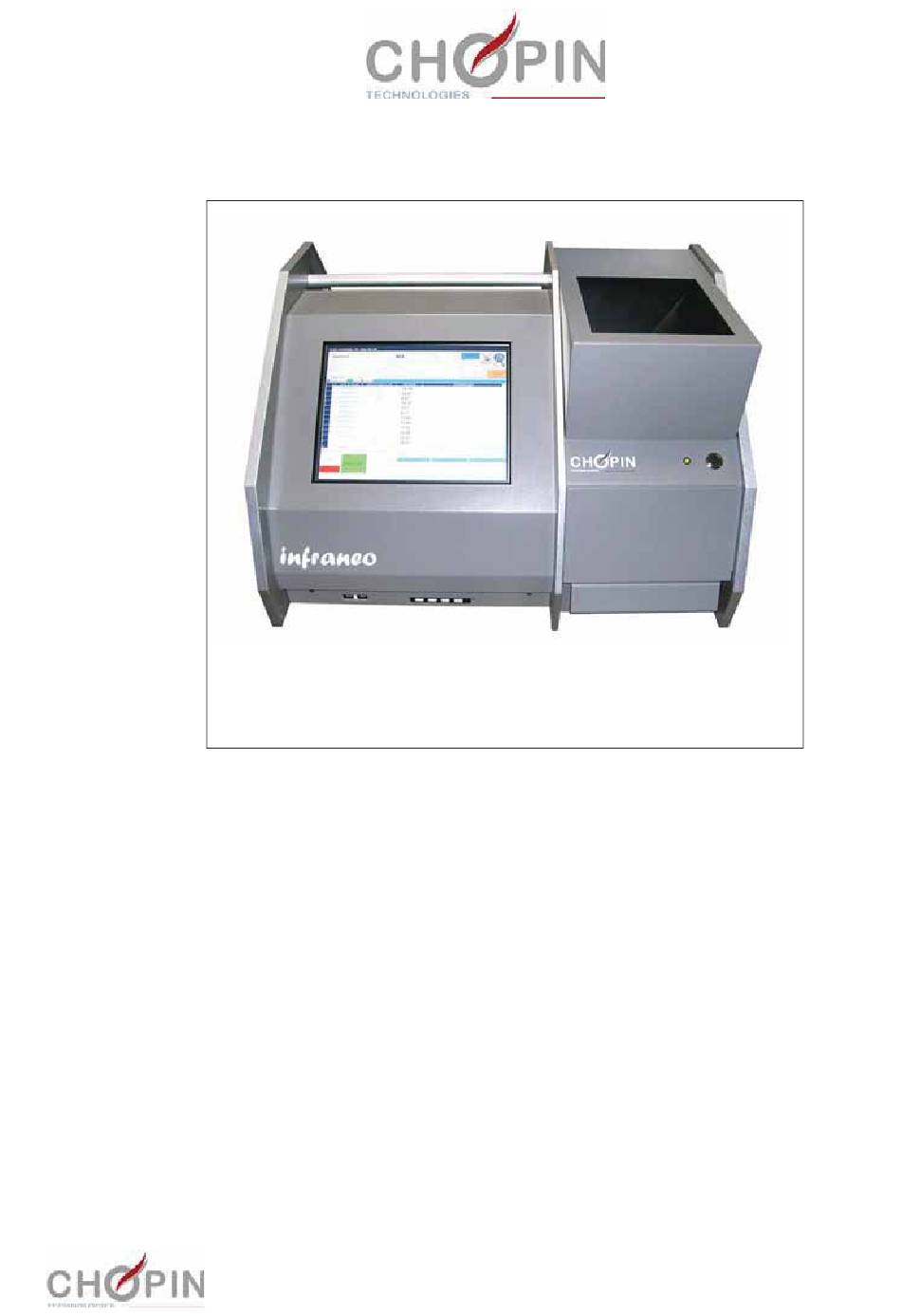

  • Page 1 INFRANEO Maintenance Manual MM-INFRANEO-EN Ind. 0 - 12/2012 20, avenue Marcellin Berthelot - Z.I. du Val de Seine 92396 Villeneuve La Garenne cedex - France www.chopin.fr Tél. : 33 (0)1 41 47 50 88 - Fax. : 33 (0)1 47 92 28 27...
  • Page 3 The technical elements that constitute this manual (text and illustrations) are not contractual, their only target being to bring assistance for troubleshooting and repairing the INFRANEO. Use, duplication or disclosure of subject data, for any purpose other than relating to the servicing or repair of the equipment, is strictly prohibited without the written authorisation of CHOPIN Technologies.

  • Page 5: Table Of Contents

    Parts lists ..........119 Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 6 Infraneo Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012...

  • Page 7: Chapter 1 Operation & Maintenance: Reminders & Additional Information

    Infraneo Chapter 1 OPERATION & MAINTENANCE: REMINDERS & ADDITIONAL INFORMATION Chapter 1 Operation & Maintenance: reminders & additional Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012 information...
  • Page 8 Infraneo Chapter 1 Operation & Maintenance: reminders & Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012 additional information...

  • Page 9: Operating Conditions

    ❏ Do not place the equipment behind a window, particularly if it is exposed to sunlight for several hours a day (B). ❏ The INFRANEO must not be placed right up against a wall. Leave sufficient space to ensure proper ventilation.
  • Page 10 Connecting the moisture tester can be achieved via the backplane connector (C). ❏ Connecting an USB printer A ticket printer can be connected to the INFRANEO via the USB port located at extreme left (D). Moisture tester connec- tion ❏...
  • Page 11 ❏ Supply voltage fluctuation: < ± 10% ❏ Degree of pollution as per EN 61010: 2 ❏ Installation category as per EN 61010 : II (surge category) Chapter 1 Operation & Maintenance: reminders & additional Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012 information...

  • Page 12: Precautions Related To Tests

    Infraneo Precautions related ■ The test management with the INFRANEO requires constant care. to tests All necessary instructions (test conditions, handling, cleaning) are detailed inside the Instruction Manual, and must be respected scru- pulously; failure to do so could lead to: ❏...

  • Page 13: Controls And Maintenance

    ■ Replacing the fuses If the device doesn't start and after mains supply monitoring, check the fuses of the INFRANEO. ❏ The fuses are located at the back of the device behind a cover. ❏ Unplug the device, use a small screwdriver to open the fuse hol- der, and replace the defective fuse(s).

  • Page 14: See Op.

    PC replacement or formatting. It includes a PDF defining the whole process in detail. ■ TeamViewer Process CHOPIN Technologies can ask you to configure a TeamViewer connection for diagnosing and/or fixing problems on your equip- ment. To configure this connection, refer to corresponding user’s manual.

  • Page 15: Chapter 2 Troubleshooting

    Infraneo Chapter 2 TROUBLESHOOTING Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 16 Infraneo Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012...

  • Page 17: Method

    CHOPIN Technologies are available to try to solve the problem, via phone, fax or e-mail. If this fails, the unit will have to be sent back to CHOPIN for in-work- shop troubleshooting and repair. ■ Before starting any troubleshooting, all useful indications should be recorded.

  • Page 18: Fault Handling

    Equipment/Software Default Symptom / Description Action Refer to The INFRANEO does not The INFRANEO does not start Refer to fault handling start The mini PC does not start The PC locks up at initialization Refer to fault handling The application does not...
  • Page 19 ■ Re-insert the sliding cell Refer to Ch 3 ■ Check setting of the C7 position Operation ■ In the INFRANEO application, select the Err - 113 Bad sliding cell position Refer to product to use again Ch 3 Operation ■...
  • Page 20 ■ Contact your agent if the problem per- sists ■ Restart the INFRANEO Err - 201 Communication port problem ■ Contact the CHOPIN Technologies cus- tomer service Err - 301 The application does not communicate Refer to fault handling 3.15...
  • Page 21 Action Refer to§ Instability of results Fluctuating result for a same sample Refer to fault handling 3.16 type Outliers results Outliers results of a product Refer to fault handling 3.17 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...

  • Page 22: Fault Handling Instructions

    Infraneo Fault handling instructions 3.1 The INFRANEO does not start see 3.2 p.23 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 23 Infraneo The mini PC does not start see op. 7-9 p.108 see op. 6-3 see op. 6-3 see op. 6-3 p.94 p.94 p.94 see op. 6-2 p.92 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 24 Infraneo 3.3 The application does not start see op. 7-9 p.108 see 3.2 p.23 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 25 Infraneo 3.4 Touchscreen problem Blurring screen Black out screen see op. 7-8 p.107 see op. 2-3 see op. 5-3 p.66 p.88 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 26 Infraneo Err - 101 Insufficient energy for this spectrum see 3.10 p.31 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 27 Infraneo 3.6 Err - 102 Emptying trap closure problem Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 28 Infraneo Err - 103 Err - 105 No grain, measurement impossible see op. 7-1 p.95 see 3.10 p.31 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 29 Infraneo Err - 104 Too low energy on blank spectrum see 3.10 p.31 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 30 Infraneo 3.9 Err - 106 Filling problem see op. 3-5 p.76 see op. 7-6 p.105 see op. 3-4 p.75 see op. 4-1 p.84 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 31 Infraneo 3.10 Err - 107 Err - 108 Order zero: too low energy Order zero: peak not detected see op. 7-1 p.95 see op. 7-8 p.107 see op. 5-2 p.87 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 32 Infraneo A - Sliding cell order zero position problem see op. 3-7 see op. 7-4 p.79 p.102 see op. 4-1 see op. 5-1 p.84 p.86 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 33 Infraneo B - Lamp supply problem see op. 7-8 p.107 see op. 7-6 p.105 see op. 2-4 p.68 see op. 2-3 see op. 4-1 p.66 p.84 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 34 Infraneo 3.11 Err - 109 No drawer see op. 4-1 p.84 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 35 Infraneo 3.12 Err - 110 Sliding cell position problem see op. 7-1 p.95 see op. 3-1 p.70 see op. 4-1 p.84 see op. 3-9 p.82 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 36 Err - 111 Err - 121 Error when reading the SW module or the moisture tester Moisture tester/SW module not present (no detection of the apparatus) see op. 7-6 p.105 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 37 Infraneo 3.14 Err - 122 Dibromo spectrum not recognized see op. 7-1 p.95 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 38 Infraneo 3.15 Err - 301 The application does not communicate with the INFRANEO see op. 7-9 p.108 see op. 7-6 p.105 see op. 4-1 see op. 2-5 p.84 p.69 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 39 Infraneo 3.16 Instability of results see op. 7-6 p.105 see op. 5-2 p.87 see op. 7-1 p.95 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 40 Infraneo 3.17 Outliers results see user manual see user manual see user manual see op. 7-11 p.113 Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...

  • Page 41: Functioning Diagram

    Receiver board unit CPU board box Drawer Lamp Relay with cabled capacitor Mini PC supply Lamp supply board CPU supply board Bottom plate Overview - Main Cabled mains plug Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 42 230 Vac 230 Vac I2C link Lamp supply Hooper Trap Sliding cell 12 Vdc Magnet OB board lock Relay with cabled capacitor Mini PC fan Lamp Optical bench Interconnection diagram Maintenance manual Chapter 2 Troubleshooting MM-INFRANEO-EN Ind. 0 - 12/2012...

  • Page 43: Chapter 3 Repair

    Infraneo Chapter 3 REPAIR Maintenance manual MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 44 Infraneo Maintenance manual MM-INFRANEO-EN Ind. 0 - 09/2012...

  • Page 45: Introduction

    Repair This chapter describes all the corrective maintenance operations authorised by CHOPIN Technologies, which can be carried out on the INFRANEO (some of these instructions are, in particular, taken from chapter "Troubleshooting"). Spare parts and sub-assemblies shall be selected from the illustrated parts lists of chapter 4 "Spare...
  • Page 46 TECH CPU board supply Sliding cell compartment Operation 3-1 Removing/Installing the CABL sliding cell motor Operation 3-2 Removing/Installing the TECH emptying trap motor Operation 3-3 Removing/Installing the TECH Equipped Hopper Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 47 Operation 7-3 Calibrating the sensor box Dibromomethane tank TECH Operation 7-4 Servicing and greasing of Alcohol at 90°, CHOPIN TECH the optical bench Technologies special grease Operation 7-5 Monitoring lamp supply Voltmeter TECH voltage Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 48 Operation 7-8 Monitoring supply board Voltmeter voltages Operation 7-9 Restoring the system (SATA TECH OR INEOS 600) Operation 7-10 Restoring the system (IDE) TECH Operation 7-11 Replacing foam with washers Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 49 Infraneo 1.3 Operation localisation The diagram below locate the different sub-assemblies of the INFRANEO, under corrective maintenance operations listed in the table above. 3 :Sliding cell compartment 5 :Optical bench compartment 2 :Power supply box 4 :CPU board box 6 :Bottom plate...
  • Page 50 Infraneo Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...

  • Page 51: Instructions

    Infraneo Instructions See the following pages. Note: Only the specific tools are specified in the manual. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 52 Cut the seal located beneath the device (B). Unscrew the two fastening screws on the front (C), the bottom seal screw and the top legs (D), by securing the unit to the chassis. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 53 - take care not to jam any cables, - make sure that the legs are correctly positioned and screwed on, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 54 Unscrew the 4 fastening screws on the left side, starting at the top screw and holding the plate in position. Remove the left-hand plate. You can now remove the cover on the optical bench. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 55 Do not exert any excessive force on cables. Locate the cable connections on the plate and then disconnect them (E). Unscrew the earthing wire (F) from the support. Remove the cover on the unit. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 56 - proceed in reverse order of removal, - do not exert any excessive force on cables, - take care not to jam any cables, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 57 Then finish with the top screw. Remove the right-hand support plate. Disconnect the earthing wire from the cover (A) as well as the connector from the diode and button on the front (B). Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 58 (the plate must remain attached to the assembly when the device is moved), - do not exert excessive force on the cables, - take care not to jam any cable, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 59 - proceed in reverse order of removal, - do not exert any excessive force on cables, - take care not to jam any cables, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 60 1-3). Remove the seal from the seal screw. Unscrew the seal screw and the fastening screw (A). Slide out and withdraw the cover (B). The CPU board is now accessible. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 61 - proceed in reverse order to removal, - do not exert excessive force on the cables, - take care not to jam the cables, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 62 The terminal block connections must be disconnected using a non-conducting flat head tool, inserting effortlessly into each pole. Unscrew the 2 screws fastening the plug to the chassis (C). Remove the plug. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 63 ■ Installing When installing the new plug: - proceed in reverse order of removal, - make sure to properly connect the terminal block cables, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 64 Place the plate on its side (D). Unscrew the 2 reset block fastening screws while holding the block in position (E), then lie the plate flat again. Remove the reset block (F) securing the supply cable. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 65 - check that the reset block is properly aligned with the reset button of the mini PC, - check proper positioning of the power supply and its cable in the support, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 66 When handling, take the usual pre- cautions: conductive floor, earthed wrist band. Take care to identify the connectors. Use a clamp to discon- nect them (C). Remove the lamp supply board (D). Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 67 ❏ Proceed in reverse order to removal to install the fasteners: - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten the screws and spacers. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 68 - proceed in reverse order to removal, - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten the nut and screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 69 When installing the new power supply board: - proceed in reverse order to removal, - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 70 + arm assembly Unscrew the 3 fastening nuts (C) on the CPU box side. Remove the motor. Disconnect the electrical connection on the motor side. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 71 - match up the arm axis fastening reference with the motor shaft, - do not over tighten screws. To ensure proper operation of the INFRANEO, you need to adjust the sliding cell position once the new motor has been installed (see op.
  • Page 72 (C). Unscrew the two screws attaching the motor support using a 4mm BTR key and remove the motor support (D). Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 73 - match up the arm axis fastening reference with the motor shaft, - do not over tighten screws. To ensure proper operation of the INFRANEO, adjust trap posi- tion once the new motor has been installed (see op.
  • Page 74 - proceed in reverse order to removal, - Check that the cable is correctly positioned (no pressure, tension, jamming, etc.), - do not over tighten screws, - reconnect the equipped hopper cables. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 75 - place Bloc Jelt on the screw clamping the coupling to the motor shaft, - check that the inductive sensor is properly positioned at 0.8 mm with respect to the positioning wheel, - reconnect the equipped hopper cables. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 76 (red) nut until it bears on the (green) motor support. Then lock the fastener in place by retightening the (purple) nut. Place Bloc Jelt on it. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 77 - proceed in reverse order to removal, -check that the cable is properly positioned (no pressure, tension, jamming, etc.), - do not over tighten screws, - reconnect the equipped hopper cables. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 78 When installing the vaned rotor: - proceed in reverse order to removal, - do not over tighten screws, - ensure that the vaned rotor clamping screws bear on the drive shaft flat. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 79 Disconnect the box electrical connection on the CPU board (A). Remove the cable grommet from its notch (B). Unscrew the 4 screws fastening the box to the sliding cell com- partment (C). Remove the box (D). Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 80 - check proper positioning of the joint opposite the notch. - do not over tighten screws. To ensure proper operation of the INFRANEO, you need to cal- ibrate the new sensor box once it has been installed (see op. 7-...
  • Page 81 When installing the sensor, proceed in reverse order to removal and ensure that the cable is properly positioned (no pressure, tension, jamming, etc. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 82 (B). Remove the receiver unit (see op. 3-7). Remove the sliding cell compartment. 10. Remove the motorisation arm + sliding cell assembly from the sliding cell compartment (C and D). Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 83 - check that the cables are properly positioned (no pressure, ten- sion, blocking, etc.), - ensure there is no play between the various assemblies once all the components have been installed, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 84 When handling, take the usual pre- cautions: conductive floor, earthed wrist band. Remove the CPU board. On removal, avoid friction and contact of the board compo- nents with the chassis and the surrounding cables Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 85 - avoid excessive force when reconnecting the connectors on the board, - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 86 - avoid excessive force when reconnecting the connectors on the board, - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 87 When installing the new optical bench lamp: - proceed in reverse order to removal, - avoid excessive force on the supply cable plug, - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 88 When handling, take the usual pre- cautions: conductive floor, earthed wrist band. Unscrew the 2 fastening screws on the touch pad controller and the 4 screws on the VGA interface board. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 89 - avoid excessive force when reconnecting the connectors on the board, - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 90 Remove the cover on the optical bench (see op. 1-2). In event of an operating problem relating to a failure of the touch pad or screen, return the device to Chopin Technolo- gies. ■ Installing Install the cover as per procedure 1-2.
  • Page 91 When installing the new mini PC fan: - proceed in reverse order to removal, - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 92 Swivel the block on one of the side edges in order to access When handling, take the usual pre- the fastening screws placed beneath. cautions: conductive floor, earthed wrist band. Unscrew the 4 fastening screws and remove the mini PC. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 93 When installing the new mini PC: - proceed in reverse order to removal, - check that the cables are properly positioned (no pressure, ten- sion, jamming, etc.), - do not over tighten screws. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 94 - avoid excessive force when reconnecting the disk connector, - avoid shocks, - do not over tighten screws. To ensure proper operation of the INFRANEO, you need to cal- ibrate the sensor box (see op. 7-3), or use the green back-up stick to re-install the configuration files containing the data.
  • Page 95 Save all adjust- Save positions ments Note: this window may be masked by another window; if need be, access it by using simultaneously the keys on the "Alt" + "Tab" keyboard. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 96 Reference face Last adjustment always "in", i.e. last key pressed = Aligned In the "Update" section, press button "C3" to save the position. Press the button "--> EEPROM". Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 97 14. Press the "Quit" button at the bottom of the window. The mes- sage "You are about to switch off the system, are you sure?" appears. Click "OK" and restart the application. Calibration of sliding cell positions for the INFRANEO is com- plete. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind.
  • Page 98 Click on this button: a message informs you that when you leave this menu, the application will close. Press "Ok". The adjustment window will appear: Position T1 Adjust- ment bar Saving the po- sition Save Position T1 Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 99 (C). Save the adjustment by clicking on "Update T3", and back up by clicking on "EEPROM". Restart the INFRANEO to take the adjustments into account. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 100 This operation consists in calibrating the wavelengths of the optical bench with a product (dibromomethane), possessing 2 absorption peaks in the INFRANEO working zone. This operation requires use of the universal sliding cell, the accessory for liquids, and a tank filled with dibromomethane.
  • Page 101 Then click on "OK". However, if the test was not successful, try again. Should the prob- lem persist, contact the After Sales Service. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 102 7 : Adjusting and servicing Sheet: 1 / 2 Operation 7-4 Servicing and greasing of the optical bench Consumables: - Alcohol at 90°, CHOPIN Technologies special grease Special tools: Any cover removal requires disconnection of the device power supply. ■ Description of the optical bench components Remove the cover on the optical bench (see op.
  • Page 103 Use alcohol to degrease the teeth on the network motor axis and those on the wheel (B). Apply CHOPIN Technologies grease (less than 0.1 ml) on the teeth of the network motor axis. Rotate manually the network motor axis to position the pin in the optical fork.
  • Page 104 Operation 7-5 Monitoring lamp supply voltage Consumables: Special tools: - Voltmeter Power up the INFRANEO and wait for the application to start. Disconnect the lamp connection cable. Use a multimeter to monitor voltage. It should be equal to 11.5 Vdc (+/- 0.20V).
  • Page 105 Remove the cover on the CPU board (see op. 1-5). Restore mains supply. Before opening the INFRANEO, you must switch it off and disconnect its Switch on the device switch. power supply. Check the voltages to be monitored on the CPU board using a 230 Vac is present inside the device.
  • Page 106 Remove the cover on the optical bench (see op. 1-2). Reconnect the mains supply. Before opening the INFRANEO, you must switch it off and disconnect its Switch on the device switch. power supply. Check the voltages to be monitored on the optical bench board 230 Vac is present inside the device.
  • Page 107 Remove the cover on the optical bench (see op. 1-4). Reconnect the mains supply. Before opening the INFRANEO, you must switch it off and disconnect its Switch on the device switch. power supply. Check the voltages to be monitored on the supply board using 230 Vac is present inside the device.
  • Page 108 Then wait for the program to be run. New windows brought up by the BIOS will automatically appear very quickly. When downloading is complete, a new window will appear. Click on "OK" and validate. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 109 A number of windows brought up by the BIOS will appear. Please wait (B). 10. Finally click on "OK" to validate. The system will automatically reboot. During the reboot, remove the USB stick provided to restore Windows. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 110 Please wait while the BIOS is updated. The system will auto- matically reboot. During the reboot, remove the USB stick. Wait for Windows to be completely launched and switch off the Infraneo Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 111 When downloading is complete, a new window will appear. Click on "OK" and validate. Type 1, then click on "OK" and validate. A warning message appears on the screen. Click on "OK" and validate. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 112 A number of windows brought up by the BIOS will appear. Please wait (B). 10. Finally click on "OK" to validate. The system will reboot auto- matically. During the reboot, remove the USB stick provided to restore Windows. Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...

  • Page 113: See Op.

    Separate the sliding cell drive rod from the sample holder car- riage (D). Unscrew using a regular screwdriver the screw placed behind the magnet lock (E Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...
  • Page 114 ■ Installing When installing, ensure proper positioning of the wires leaving the magnet lock (G). Then proceed in reverse order to removal, taking care to reposition correctly the carriage (H). Maintenance manual Chapter 3 Repair MM-INFRANEO-EN Ind. 0 - 09/2012...

  • Page 115: Chapter 4 Spare Parts

    Infraneo Chapter 4 SPARE PARTS Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 116 Infraneo Maintenance manual MM-INFRANEO-EN Ind. 0 - 12/2012...

  • Page 117: Important

    ■ Unless otherwise mentioned, all metallic fasteners are stainless steel-made. ■ All parts having a Chopin Technologies part number must be pur- chased from Chopin Technologies, or from an authorized agent. ■ When making out a purchase order, take care to mention: ❏...
  • Page 118 Infraneo Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...

  • Page 119: Parts Lists

    Optical bench equipped Figure N° 3 Sliding cell and hopper compartment Figure N° 4 Hopper equipped Figure N° 5 Bottom plate equipped Figure N° 6 Screen assembly equipped Figure N° 7 Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 120 Infraneo figure 1 - Grouping list and options Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 121 SCOOP, NEOFILL - 25 ml NEOFILL-8 MILLER’S KIT NEOFILL2 BRUSH, FLAT - WITH SILK FIBERS NEOFILL-4 SLIDING CELL, TECHNICAL NEO-U * : Depending on the configuration of your INFRANEO. Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 122 Infraneo figure 2 - Power supply unit equipped Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 123 SCREW, HSHC M3X6 - STAINLESS POWER SUPPLY, CPU - 24V 60W SEN-150 SCREW, HSHC M3X10 - STAINLESS LAMP, OPTICAL BENCH NEOBS50 RELAY, W/CAPACITOR - CABLED JUN-23 LOCKNUT, H M5 ZINC-PLATED Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 124 Infraneo figure 3 - Optical bench equipped Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 125 SCREEN ASSEMBLY EQUIPPED SEAL SCREW, M5X10 ALP-75/C SCREW, HSHC M5X10 - STAINLESS BOARD, OPTICAL BENCH SEN-171 WASHER, MEDIUM FLAT 3X8 - ZINC PLATED SCREW, HSHC M3X6 - STAINLESS Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 126 Infraneo figure 4 - Sliding cell and hopper compartment Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 127 WASHER, DE 3 AZ HOPPER EQUIPPED NEO-C SCREW, HSHC M4X10 AZ SCREW, HSHC M5X10 I MOTOR, DC 24V VMC - BOSCH ACT 9 RECEIVER BOARD UNIT, COMPLETE NEOV4-18 SCREW, CS M3x25 I Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 128 Infraneo figure 5 - Hopper equipped Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 129 Part no. order NUT M4 WASHER, FLAT M4 SCREW, HSHC M4X8 FAN POSITION DETECTOR NEOV4-131 MOTOR, GEARED DC VMC2 - BOSCH NEO-C7 SCREW, HSHC M3X6 INOX WASHER, TOOTHED DEC M3 Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 130 Infraneo figure 6 - Bottom plate equipped Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 131 FAN - SANYODENKI B76 CAB NEOPAN-3 MINI PC, INEOS 600 POSREADY 200 MIC-97 SCREW, FH M3X5 - STAINLESS HARD DRIVE, 2.5" SATA 160 MIC-93/ SATA SCREW, CS M4X6 - STAINLESS Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 132 Infraneo figure 7 - Screen assembly equipped Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 133 Screen assembly equipped Min. CHOPIN item Description qty p. Note Part no. order TOUCH SCREEN ASSEMBLY EQUIPPED NEOV4-2 VGA INTERFACE BOARD SEN-196 TOUCH PAD CONTROLLER SEN-197 SCREW, CS M3X6 - STAINLESS Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
  • Page 134 Infraneo Maintenance manual Chapter 4 Spare parts MM-INFRANEO-EN Ind. 0 - 12/2012...
