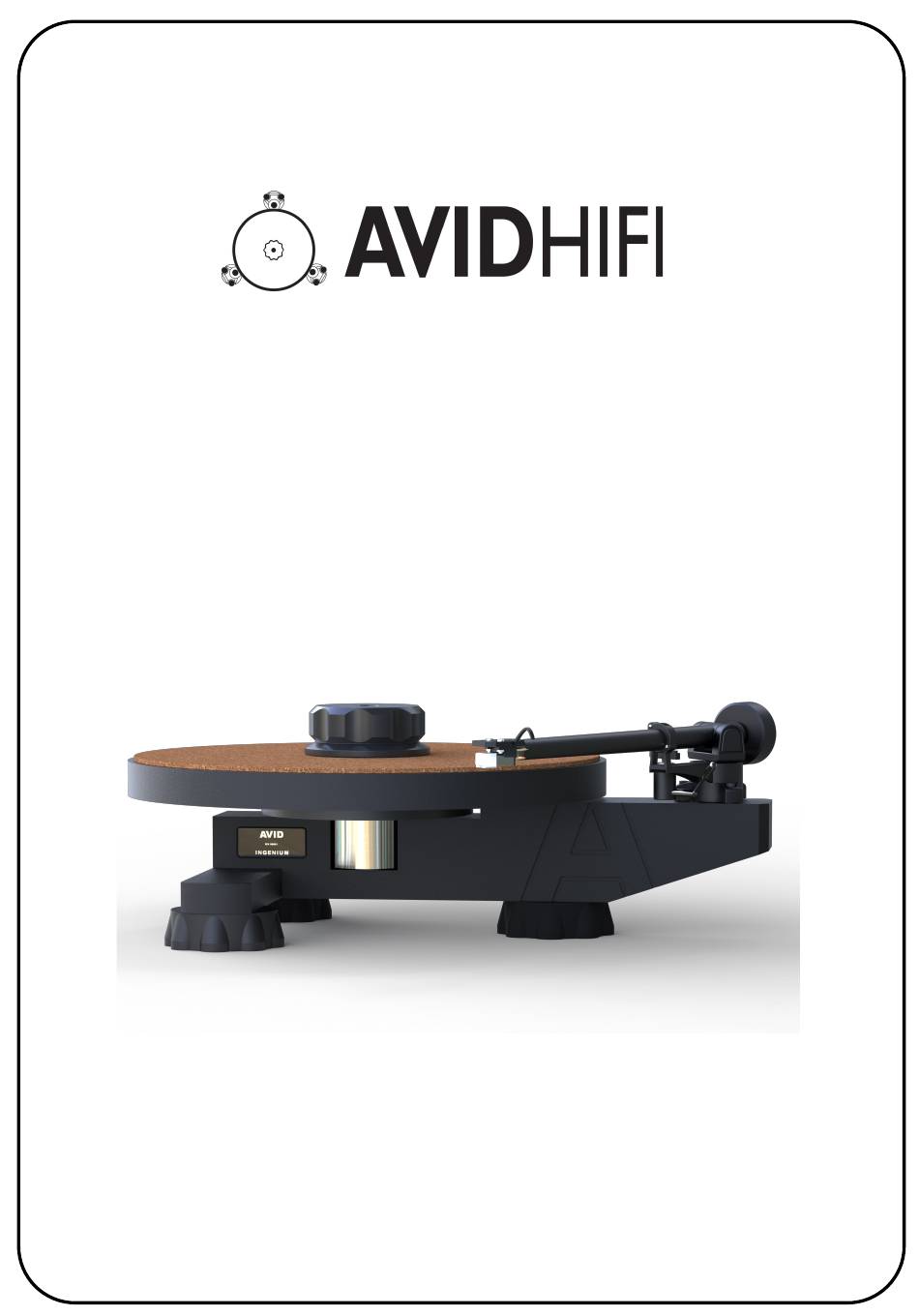

- Page 1 Ingenium P&P Turntable USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Topic Page Welcome Caution Component List Placement Setting-up: Position the Chassis Inserting the bearing ball Attaching the drive hub The Motor Attaching the platter Changing the platter speed Counterweight Connecting to your system Using the clamp Starting the turntable Troubleshooting Specifications Declaration of Conformity... -
Page 3: Welcome
Congratulations on purchasing your new AVID Ingenium P&P. By using the highest quality materials and being assembled to the highest industry standards, your AVID Ingenium should provide you with many years of trouble-free enjoyment. Please read this manual carefully to ensure you understand all the features and operating functions available. -
Page 4: Component List
Component List: Before assembling your Ingenium please check that, along with this manual, you have all the parts as listed below. If any items appear to be missing, please contact your dealer immediately. Chassis with arm/cartridge Record Clamp Hub/bearing Assembly Motor Tonearm Counterweight Bearing Ball... -
Page 5: Placement
Placement: By their nature, turntables are sensitive devices. They are designed to retrieve the smallest vibrations and convert them to sound. Unfortunately this means that they are also very good at picking up vibrations you don’t want to hear, such as the footsteps of someone walking past the turntable. Most turntable manufacturers attempt to minimise this problem—the Ingenium P&P uses a combination of its high mass along with its compliant feet to create an effective isolation system. -
Page 6: Setting-Up
Setting-up: Prepare the area where you plan to locate the turntable—make sure you have plenty of space around it to give you easy access. We recommend the following sequence to assemble your Ingenium P&P turntable. Position the chassis The main chassis comes ready-assembled, with its feet, arm and cartridge in place. -
Page 7: The Motor
The Motor The motor needs to be located to the rear of the chassis. The centre of the motor spindle should be approximately 97mm (3 ¾”) away from the centre of the hub assembly. Take the drive belt, and place it around the hub, and then stretch it over the motor pulley. -
Page 8: Counterweight
Counterweight The Ingenium comes with a cartridge already installed. Before playing any records, you must attach the counterweight; this ensures the cartridge is played at the correct tracking weight. Using a twisting action, gently push the counterweight onto the rear of the tonearm until it reaches the stop, and cannot be pushed further—the tracking weight is now correctly set. -
Page 9: Troubleshooting
TROUBLESHOOTING The Ingenium P&P is intentionally a straight-forward turntable, making set-up and use very simple. Occasionally though, you may come across a problem, if so, please read the following to help find a solution Fault Solution Turntable platter not Check that the mains plug is correctly fitted and switched ‘on’, and that the rotating in-line mains switch is also ‘on’. -
Page 10: Specifications
Specification POWER CONSUMPTION Input voltage (region dependent) 120V or 240V AC Power Consumption (Max) <4 Watts DIMENSIONS AND Weights (W x D x H) : 500 x 420 x 265mm Weight: 9 Kg DECLARATION OF CONFORMITY EC Declaration of Conformity 06 December 2017 We declare that our Ingenium P&P turntable conforms to directives and harmonized international standards: EMC (89/36/EEC) Electromagnetic conformity... -
Page 11: Warranty
AVID agent, which ever comes first, extending to five years subject to the product owner having submitted the Registration form (www.avidhifi.com/register.htm). Also the following conditions being observed. - Page 12 Bicton Industrial Park, Kimbolton, Huntingdon, Cambridgeshire. PE28 0LW ENGLAND Tel: +44(0)1480 869 900 — Website: www.avidhifi.com - Email: info@avidhifi.co.uk Company Registered No: 5435528 — VAT Registration No: GB 694 9858 48 — Directors: C. Mas & S.J. Mas Updated 23rd October 2018...
