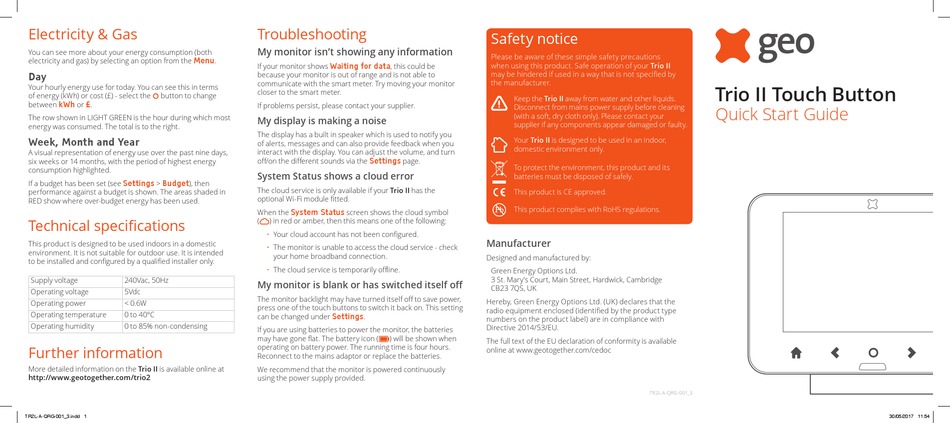

Geo Trio II Touch Button Quick Start Manual

Electricity & Gas
You can see more about your energy consumption (both
electricity and gas) by selecting an option from the Menu
Day
Your hourly energy use for today. You can see this in terms
of energy (kWh) or cost (£) - select the button to change
w
between kWh or £ .
The row shown in LIGHT GREEN is the hour during which most
energy was consumed. The total is to the right.
Week, Month and Year
A visual representation of energy use over the past nine days,
six weeks or 14 months, with the period of highest energy
consumption highlighted.
If a budget has been set (see Settings > Budget ), then
performance against a budget is shown. The areas shaded in
RED show where over-budget energy has been used.

Technical specifications

This product is designed to be used indoors in a domestic
environment. It is not suitable for outdoor use. It is intended
to be installed and configured by a qualified installer only.
Supply voltage 240Vac, 50Hz
Operating voltage 5Vdc
Operating power < 0.6W
Operating temperature 0 to 40ºC
Operating humidity 0 to 85% non-condensing

Further information

More detailed information on the Trio II is available online at
http://www.geotogether.com/trio2
TR2L-A-QRG-001_3.indd 1

Troubleshooting

My monitor isn't showing any information
.
If your monitor shows Waiting for data , this could be
because your monitor is out of range and is not able to
communicate with the smart meter. Try moving your monitor
closer to the smart meter.
If problems persist, please contact your supplier.
My display is making a noise
The display has a built in speaker which is used to notify you
of alerts, messages and can also provide feedback when you
interact with the display. You can adjust the volume, and turn
off/on the different sounds via the Settings
System Status shows a cloud error
The cloud service is only available if your Trio II has the
optional Wi-Fi module fitted.
When the System Status screen shows the cloud symbol
( ) in red or amber, then this means one of the following:
p
• Your cloud account has not been configured.
• The monitor is unable to access the cloud service - check
your home broadband connection.
• The cloud service is temporarily offline.
My monitor is blank or has switched itself off
The monitor backlight may have turned itself off to save power,
press one of the touch buttons to switch it back on. This setting
can be changed under Settings .
If you are using batteries to power the monitor, the batteries
may have gone flat. The battery icon ( ) will be shown when
o
operating on battery power. The running time is four hours.
Reconnect to the mains adaptor or replace the batteries.
We recommend that the monitor is powered continuously
using the power supply provided.
Safety notice
Please be aware of these simple safety precautions
when using this product. Safe operation of your Trio II
may be hindered if used in a way that is not specified by
the manufacturer.
Keep the Trio II away from water and other liquids.
Disconnect from mains power supply before cleaning
(with a soft, dry cloth only). Please contact your
supplier if any components appear damaged or faulty.
Your Trio II is designed to be used in an indoor,
domestic environment only.
page.
To protect the environment, this product and its
batteries must be disposed of safely.
This product is CE approved.
This product complies with RoHS regulations.
Manufacturer
Designed and manufactured by:
Green Energy Options Ltd.
3 St. Mary's Court, Main Street, Hardwick, Cambridge
CB23 7QS, UK
Hereby, Green Energy Options Ltd. (UK) declares that the
radio equipment enclosed (identified by the product type
numbers on the product label) are in compliance with
Directive 2014/53/EU.
The full text of the EU declaration of conformity is available
online at www.geotogether.com/cedoc

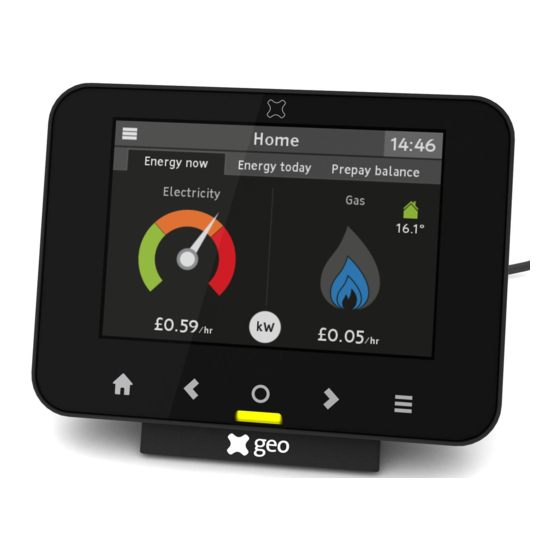

Trio II Touch Button

Quick Start Guide

TR2L-A-QRG-001_3
30/05/2017 11:54
