Gallagher SmartPower MBX2500 User Manual

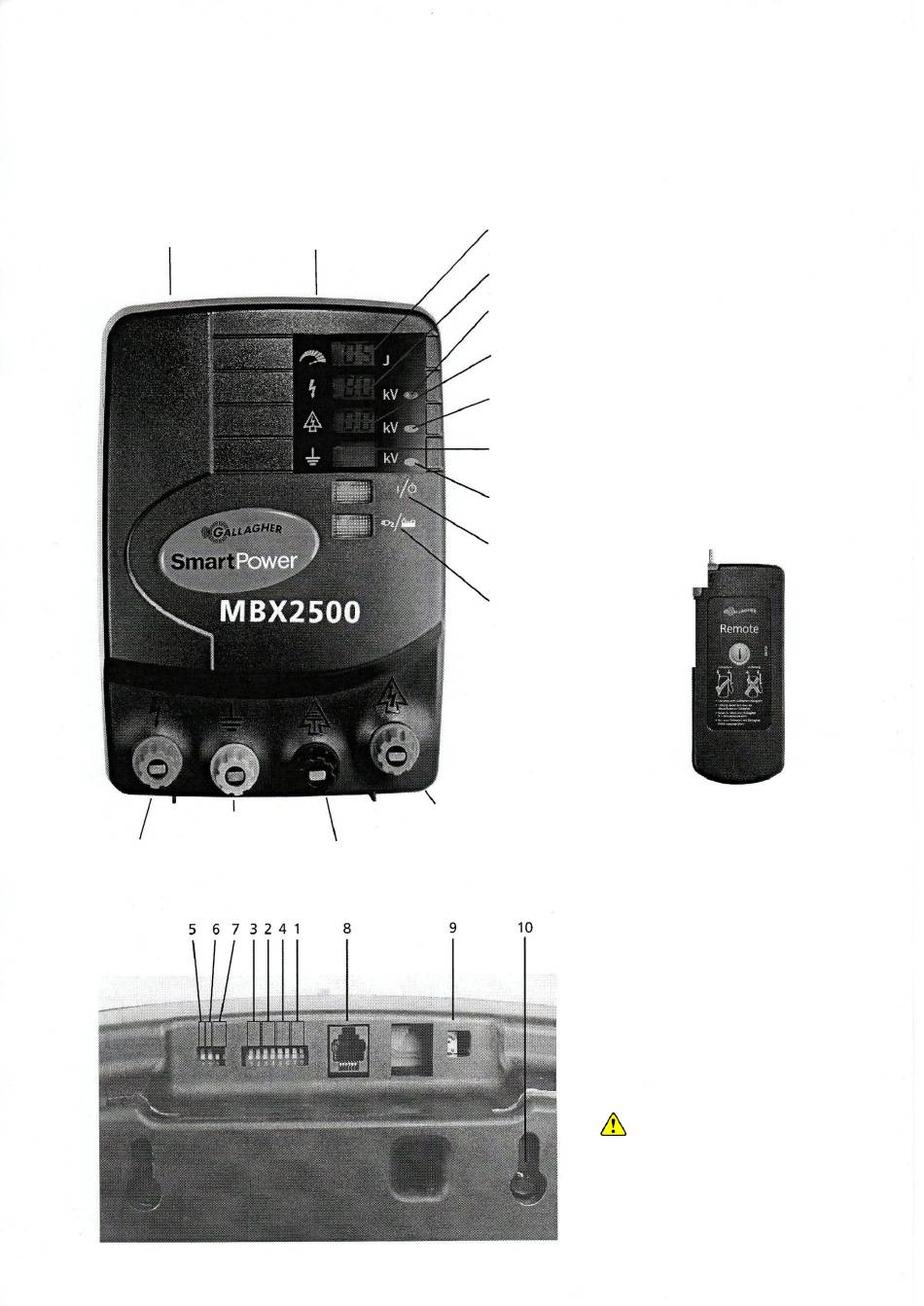

Your SmartPower Energizer
YOUR SMARTPOWER ENERGIZER...
...can operate from mains power only, or with a battery back-up or with battery only
Power Supply
Advanced
• 110-230V, battery, solar, generator
Lightning
• high protection against poor power supply
Protection
Earth Terminal
connects to earth
Output Terminal
connects to fence
Solveig Pourquier et Jean-François Levet – Lycée Lachenal – Argonay (74) – Académie de GRENOBLE
Fence Terminal
connects to section of
fence being monitored
Reference Earth Terminal
connects to reference earth
Gallagher 3E0795 SmartPower MBX User Manual
Stored Energy
Indicates how hard the energizer is working
Output Voltage
Shows voltage at the energizer
Output Alarm
Warns if Output Voltage has fallen below a
pre-set level
Fence Voltage
Monitors the quality of the fence
Fence Alarm
Warns if Fence Voltage has fallen below
a pre-set level (includes Security option)
Earth Voltage
Monitors the quality of the earth
system
Earth Alarm
Warns if Earth Voltage has risen
above a pre-set level
ON/Standby
Indicates standby, normal operation or
electrical interference
Mains/Battery
Shows whether the energizer is
operating from mains or battery power
and indicates low battery
Switches/Connections on
back of energizer :
1.
2.
3.
4.
5.
6.
7.
8.
9.
10. Mounting Holes
IMPORTANT: After changing
switch settings, it is recommended
that the switch cover is replaced
(to prevent insects entering).
Remote Control:
The convenience of
being able to turn the
Energizer ON or
OFF anywhere the
fence is powered
Output Alarm
Fence Alarm
Earth Alarm
Remote Control Codes
Battery Save
Remote Control Disable
Remote Control Electrical
Interference
Connection for MBX Alarm
Controller
Battery Connection
