Summary of Contents for IAG IAG-AFD-3004

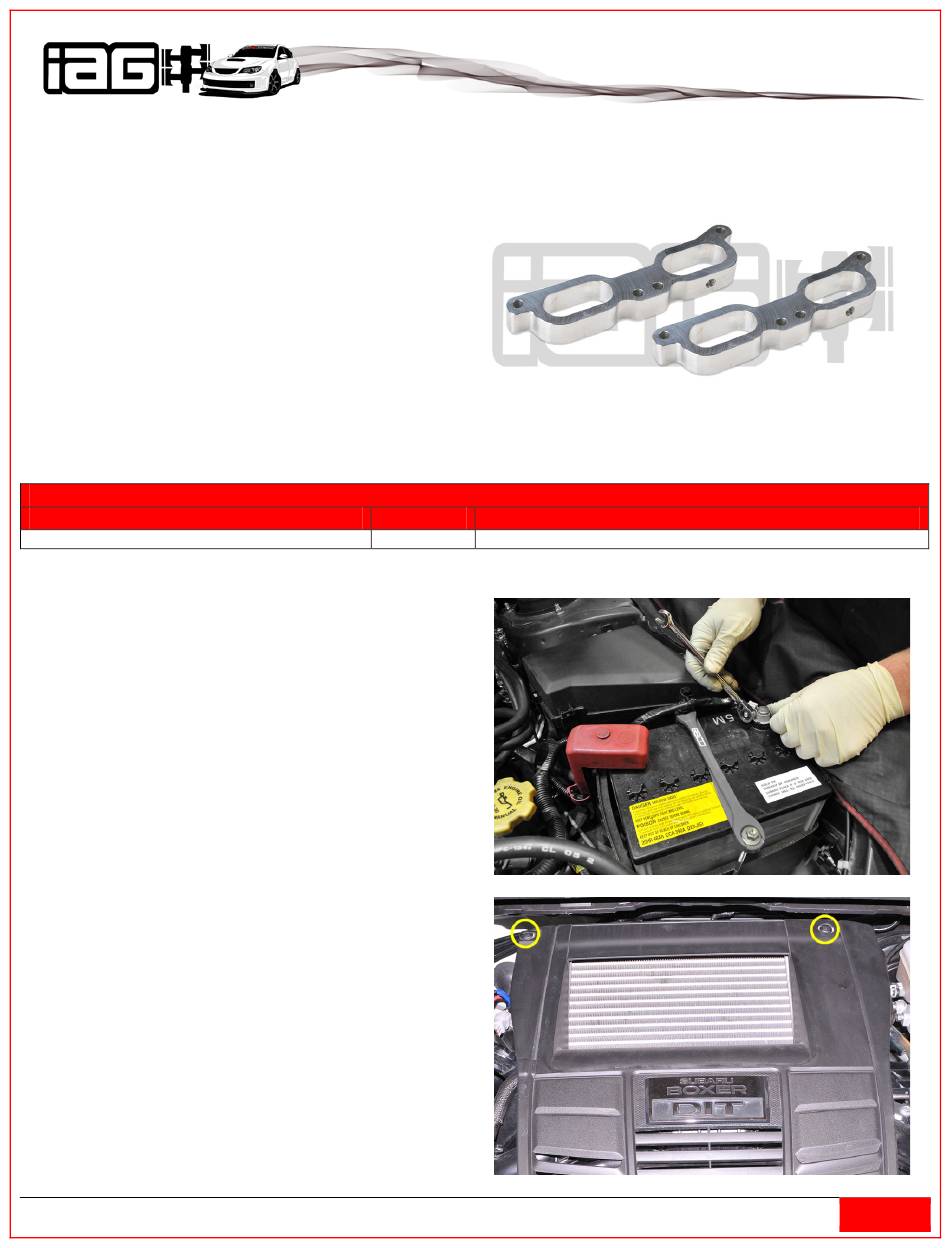

Page 1
Using pop clip pliers, remove the two pop clips that hold the engine cover on. Then carefully from the front pull upwards and remove the plastic engine cover. IAG Performance | 1203 Baltimore Blvd. Westminster, MD 21157 | Ph: 410-840-3555 | www.iagperformance.com...
Page 2
2. Using a flat head screw driver or 8mm socket and ratchet loosen the hose clamp that holds the boost pipe to the top mount intercooler. IAG Performance | 1203 Baltimore Blvd. Westminster, MD 21157 | Ph: 410-840-3555 | www.iagperformance.com...
Page 3
4. Loosen the hose clamp on the intercooler outlet. Then remove the intercooler from the vehicle being careful not to damage the fins or ac lines. IAG Performance | 1203 Baltimore Blvd. Westminster, MD 21157 | Ph: 410-840-3555 | www.iagperformance.com...
Page 4
7. Using a 12mm socket, ratchet and extension remove the (8) 12mm bolts that secure TGV’s to the intake manifold. *Passenger side bolt locations shown. Similar on driver side. IAG Performance | 1203 Baltimore Blvd. Westminster, MD 21157 | Ph: 410-840-3555 | www.iagperformance.com...
Page 5
TGV out towards the fire wall of the vehicle. *Make sure the OEM intake manifold O-rings do not fall out. Remove the TGV from the vehicle. IAG Performance | 1203 Baltimore Blvd. Westminster, MD 21157 | Ph: 410-840-3555 | www.iagperformance.com...
Page 6
Next carefully remove the TGV by pulling it out towards the firewall. *Make sure the OEM intake manifold O-rings do not fall out. IAG Performance | 1203 Baltimore Blvd. Westminster, MD 21157 | Ph: 410-840-3555 | www.iagperformance.com...
Page 7
13. Reinstall the Intercooler, OEM engine cover and negative battery terminal 14. Flash the new ECU MAP into the vehicle. Start the vehicle, check for leaks. IAG Performance | 1203 Baltimore Blvd. Westminster, MD 21157 | Ph: 410-840-3555 | www.iagperformance.com...
