QUICK START GUIDE

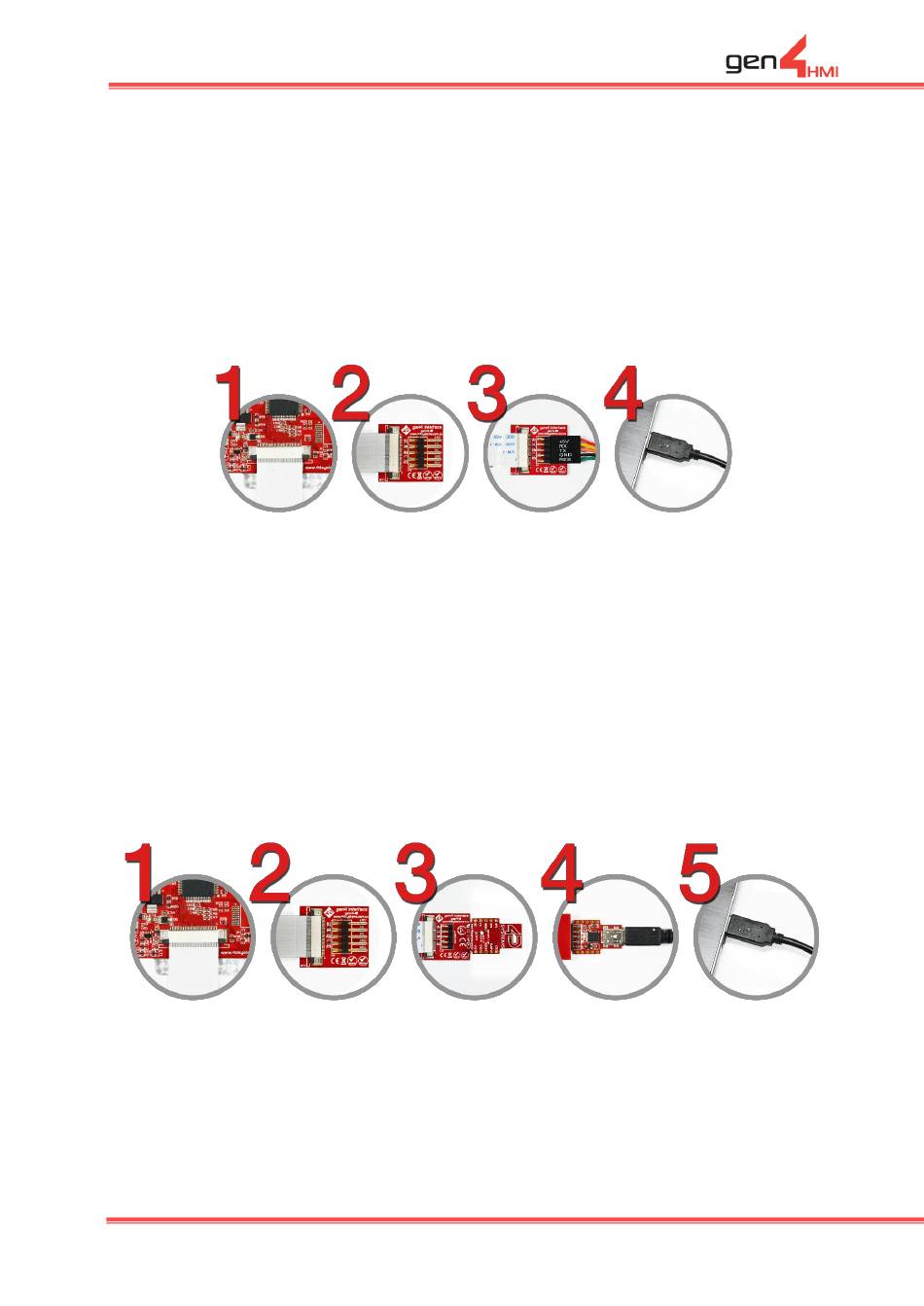

Power Up and Connect to a Computer Using gen4-IB & 4D Programming Cable
1) Connect one end of the FFC to your module's 30-way ZIF socket with the metal
contacts on the FFC facing up on the latch.
2) Connect the other end of the FFC to the 30-way ZIF socket on the gen4-IB* with the
metal contacts on the FFC facing up on the latch.
3) Connect the 5-Pin female header of the 4D Programming Cable to the gen4-IB
following the orientation on both cable and module labels. (you can also do this with
the assistance of the supplied ribbon cable)
4) Connect the other end of the 4D Programming Cable to the computer.
Power Up and Connect to a Computer Using gen4-IB & uUSB-PA5-II
1) Connect one end of the FFC to your module's 30-way ZIF socket with the metal
contacts on the FFC facing up on the latch.
2) Connect the other end of the FFC to the 30-way ZIF socket on the gen4-IB* with
metal contacts on the FFC facing up on the latch.
3) Connect the 5-Pin female header of the uUSB-PA5-II to the gen4-IB following the
orientation on both cable and module labels. (you can also do this with the
assistance of the supplied ribbon cable)
4) Connect a USB-Mini-B Cable to the uUSB-PA5-II.
5) Lastly, connect the other end of the uUSB-Mini-B to the computer.
