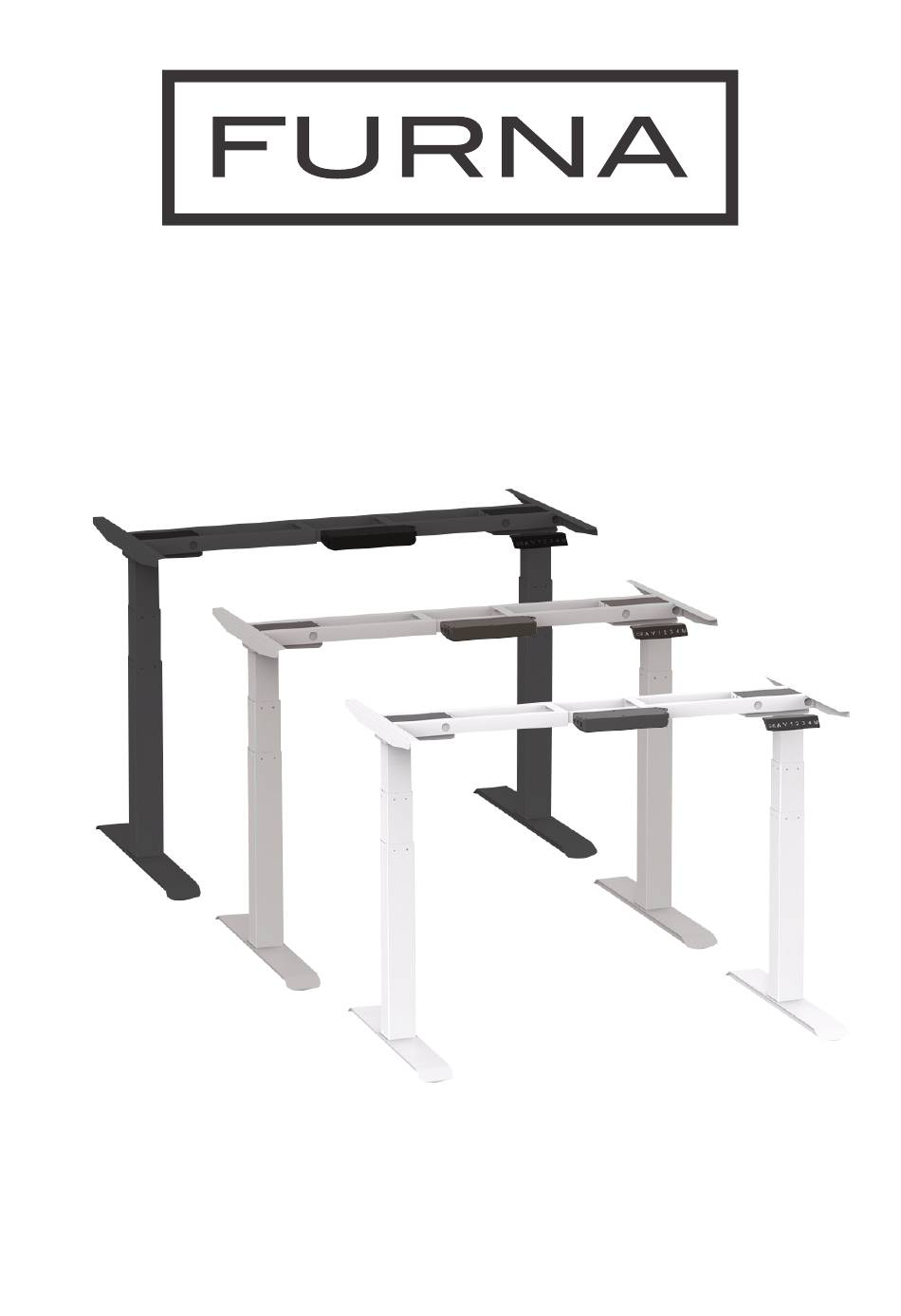

- Page 1 FURNA E2 ASSE M B LY G UI D E MODEL F NA E 2F RM 18XX X...
-
Page 2: Parts & Tools List
PARTS & TOOLS LIST Name Name Lifting System 1set 4mm Hex Spanner 1set Foot Pad 5mm Hex Spanner Foot Margin M6x12 Screw M8x16 Screw Rubber Cushion Bracket ST3 5x19 Screw M6x14 Screw ST4 8x19 Screw M6X10 Screw Support Beam... - Page 3 4mm Hex spanner STEP 1 Loosen the 4 screws using the hex spanner, so the frame can adjust to the desk top size as/when needed. 6x14 screw 8pcs 4mm Hex spanner 6x12 screw 4pcs STEP 2 Attach legs to the support beams using the parts shown...
- Page 4 4mm Hex spanner 8x16 screw 8pcs Foot pad 4pcs STEP 3 Attach the feet and then the foot levelling pads 4mm Hex spanner Rubber Cushion 6pcs 6x12 screw 4pcs STEP 4 Switch the frame to the upright position and attach the brackets.
- Page 5 4mm Hex spanner 6x10 screw 8pcs STEP 5 Put the frame upside down onto the desk top in a centered position. Adjust the frame width to suit the desk top (we suggest around 5cm from each side) Once in position, tighten the M6x10 screws to set the frame width STEP 6...
- Page 6 STEP 7 Make sure all screws and bolts are tight, then plug in cables as shown and your desk is ready to be used!
-
Page 7: Need Help
Need help? Get in touch by emailing contact@furna.co.uk or by using our Live Chat feature on our website!
