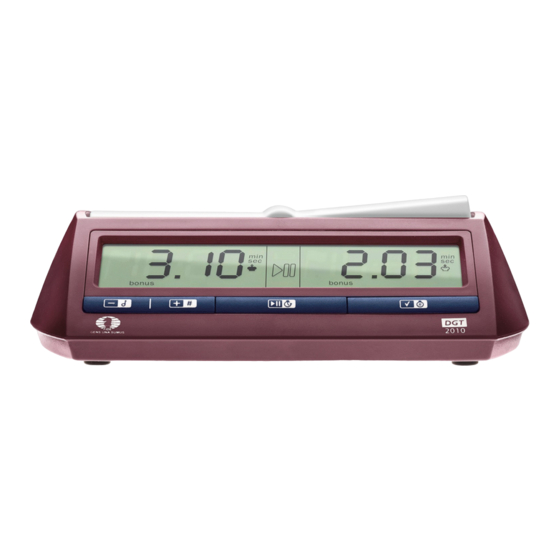

Repair of DGT 2010
Lever does not switch
When performing the functional test as described in the 1708 problem document, the numbers in the display
should change from 5 to 6 when operating the lever.
√
button and hold it when switching on the clock, push ►|| next.
To enter this test you have to push the

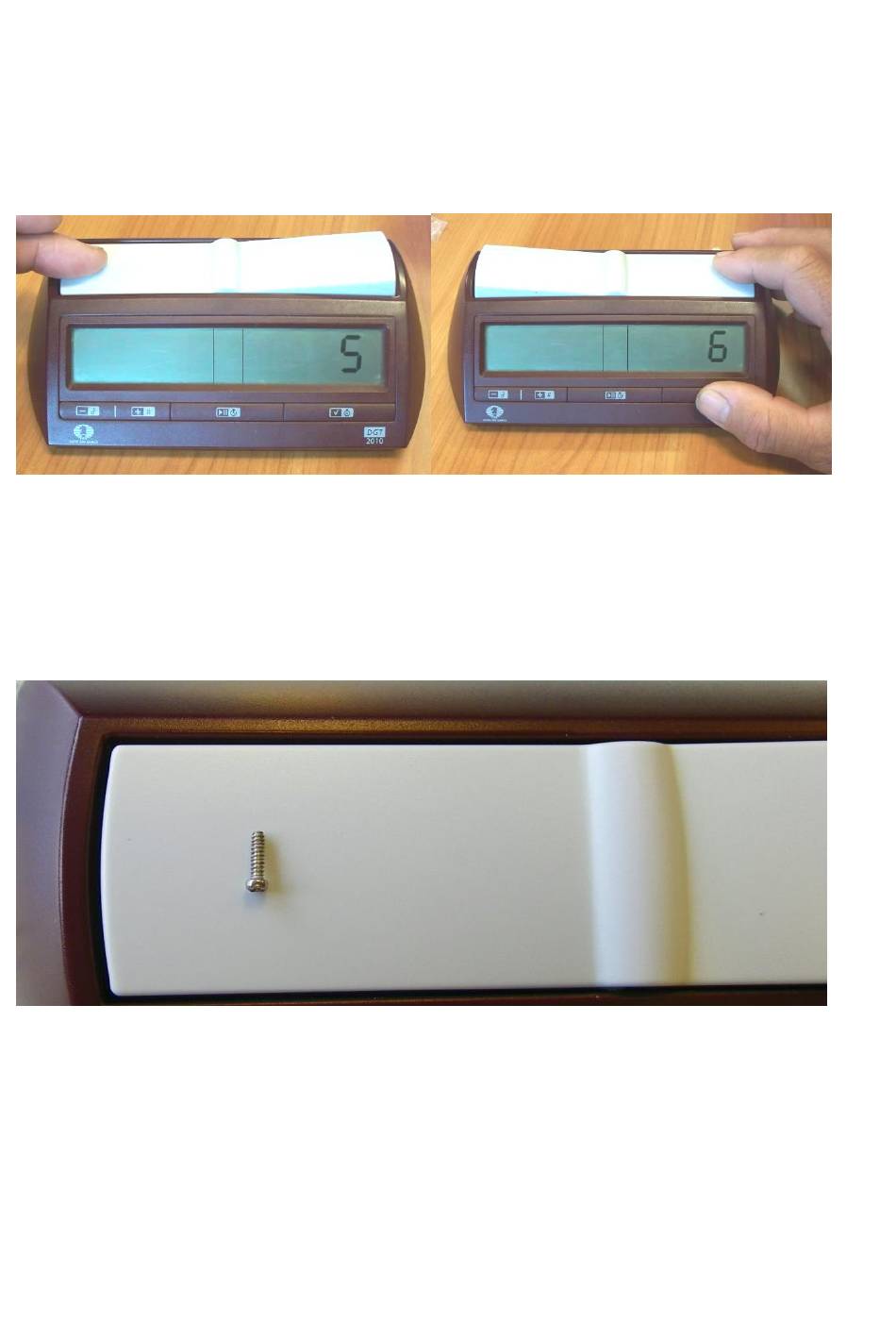

Foto 1 The numbers that indicate the lever positon
If the numbers don't change the lever switch may be damaged or the magnet that operates the switch may
be out of place.
There is a simple test to check if the magnet in the lever is inplace:
Take out one of the corner screws out of the bottom.
Place it on the left side of the lever
If the magnet is OK the screw will be orientated like in the picture or 180 degrees rotated.
When the screw is oriented otherwise or will not be attracted to the lever at all, proceed with the following
steps.
Advertisement
Table of Contents
Related Manuals for Digital Game Technology DGT 2010
Summary of Contents for Digital Game Technology DGT 2010
- Page 1 Repair of DGT 2010 Lever does not switch When performing the functional test as described in the 1708 problem document, the numbers in the display should change from 5 to 6 when operating the lever. √ button and hold it when switching on the clock, push ►|| next.
- Page 2 Next remove the two screws that hold the V-shape over the lever and remove this V-shape and the spring. Unscrew the 8 screws that hold the sub-frame to the housing of the clock. (the ones in the red circles in the picture) Foto 3 Exploded view of a DGT 2010...
- Page 3 Next step is to take out the pin that holds the lever. Foto 4 The reed contact assembly with a fallen out magnet Foto 5 Gluing in the magnet Be sure to insert the magnet with the largest side facing to you Replacing the reed contact.
- Page 4 Lever does not switch or only when the right side is pressed very hard. Sometimes the magnet is too strong or the reed switch is too sensitive. The result is that when you press the right side of the lever the black King symbol is still on left side and the white King symbol is on the right. It does not change when you switch the lever.
- Page 5 Functional test Put in two 1,5 V AA batteries in the clock. (the clock will switch on autmaticly) In rare cases the clock will not switch on even if all wires are connected correctly. If this is the case use a flat screw driver to connect the two pads of the "reset"...
- Page 6 Foto 7 push the middle button You will see a number that indicates the voltage that is set for "low battery" indication Foto 8 the "low battery" voltage Push all buttons one after another once and check if the number in the display changes. Also switch the lever once or twice.
- Page 7 Foto 9 The numbers that indicate the lever positon...
