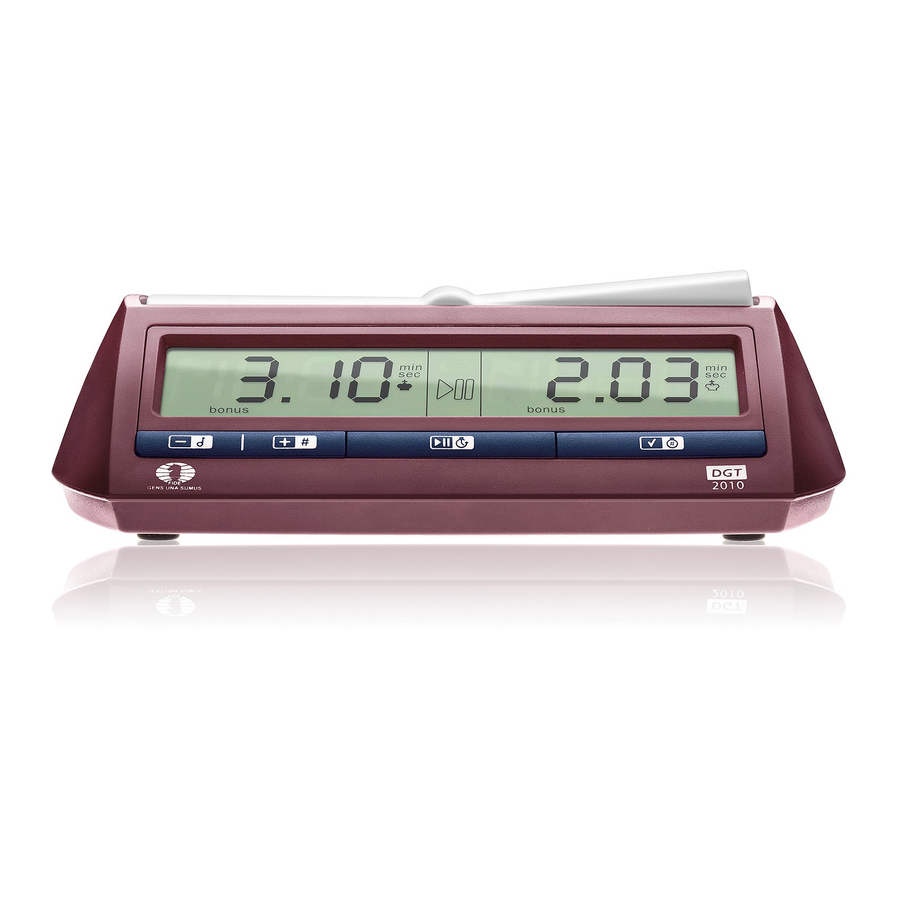

Digital Game Technology DGT 2010 Manual

Game timer, display
Hide thumbs Also See for DGT 2010:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
ON / OFF
(bottom of the clock)
© Copyright 1994 -2012 Digital Game Technology BV
DGT BV PO Box 1295 7500 BG Enschede The Netherlands
Decrease the blinking number
Enable / disable sound
Increase the blinking number
Show move number
Run / Pause the clock
Time correction after pushing for 3 seconds
Step over manual set
Activate the chosen option number
Accept the desired blinking digit
Check active option number
Switch the clock on and off
Reset the clock for the next game
DGT 2010 Display
Version 1.3 January 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGT 2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Game Technology DGT 2010

Summary of Contents for Digital Game Technology DGT 2010

  • Page 1 Switch the clock on and off ON / OFF Reset the clock for the next game (bottom of the clock) DGT 2010 Display © Copyright 1994 -2012 Digital Game Technology BV DGT BV PO Box 1295 7500 BG Enschede The Netherlands Version 1.3 January 2012...

  • Page 2: Table Of Contents

    Time + Canadian byo-yomi (“Overtime”) (options 29 and 30) Hourglass (Options 31 and 32) Gong (Options 33 and 34) ® Scrabble (Options 35 and 35) Operation of the DGT 2010 Batteries Turning on the DGT 2010 Choosing an Option Number Activating an Option Number Starting a Game...

  • Page 3: Overview

    Overview This DGT 2010 Game Timer has been designed to be used as game clock for various two-person board games, especially Chess, Go and Draughts. In this manual it will be referred to as the “DGT 2010.” The main features are: ...

  • Page 4: Time Followed By Repeating Periods (Options 8 And 9)

    0:00, the blinking flag is shown and the DGT 2010 stops time counting for both players, indicating that the game has ended, with the player in question having lost the game on time. This means that the players have to stop the clock correctly after each move.

  • Page 5: Time + Professional Byo-Yomi (Options 26 - 28)

    The clock will not wait counting down until the delay time has been passed, but will add the used delay time back to the total as soon as the player has pushed the lever. For example the clock is set to 5 seconds delay and shows 57 seconds left. The player uses 4 seconds to complete his move (less than the delay time) and the clock shows 53, then the clock will jump back to 57 as soon as the lever is pressed.

  • Page 6: Operation Of The Dgt 2010

    Operation of the DGT 2010 Batteries The DGT 2010 requires 2 AA (penlight) batteries. We recommend low self-discharging alkaline batteries which may last many years of normal use. If you do not plan to use your timer for a long period, we recommend that you remove the batteries to avoid damage caused by possible leaking of the batteries.

  • Page 7: Temporarily Stopping The Timer

    2 seconds starts the time correction procedure, see section 8 for this). Audible Signal The DGT 2010 can give audible signals near the end of a period. When this function is on, it will give a short beep 10 seconds before every period and also for each of the last 5 seconds of the period.
  • Page 8 Display Display Option Name Settings Left Right Time 0:00.00 0:00.00 Left-hand and right-hand player time, first hours:minutes, then seconds. Time 0:00.00 0:00.00 First Period left-hand and right-hand f.b.Guillotine time, first hours:minutes, then seconds. 0:00.00 Guillotine Period for each player, first hours:minutes, then seconds.

  • Page 9: Display Symbols

    Indicates the player color. 12. Time Display With 20 minutes or more remaining, the DGT 2010 displays hours and minutes. The icons “hrs” and “min” are visible. With less than 20 minutes remaining, the clock dis- plays minutes and seconds, and the icons “min” and “sec” are visible.

  • Page 10: Reloading Canadian Byo-Yomi Time

    (page 69) together with proof of purchase. This condition of warranty is only valid if the DGT 2010 has been used in a reasonably prudent manner as it is intended to be used. This warranty shall not apply if the clock has been misused or if any unauthorized repair...

  • Page 11: Technical Specifications

    Accuracy: within 1 second per hour Housing: ABS plastic Display: 2,5 x 13,5 cm Weight: 8.6 oz. (with 2-AA batteries installed) The DGT 2010 complies with EN 50081-1:1991 and EN50082-1:1991 regulations. product complies with RoHS directive EU/2002/95/EC This equipment is marked with the recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream.
