- Page 1 DG-WR3001NE DIGISOL 300MBPS WALL MOUNT WIRELESS REPEATER User Manual V1.0 2018-04-17 As our products undergo continuous development the specifications are subject to change without prior notice...
- Page 2 DG-WR3001NE User Manual COPYRIGHT Copyright 2018 by DIGISOL Systems Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
-
Page 3: Table Of Contents
DG-WR3001NE User Manual Index 1. Product Information .................... 5 1-1 Product Introduction ................. 5 1-2 Safety Information ..................6 1-3 System Requirements ................7 1-4 Package Contents ..................7 1-5 Get familiar with your new wireless repeater ......... 8 2. Extender mode ....................9 2-1 Extender mode Quick Installation Guide .......... - Page 4 DG-WR3001NE User Manual...
-
Page 5: Product Information
DG-WR3001NE User Manual 1. Product Information 1-1 Product Introduction Thank you for purchasing this 802.11N wireless repeater! The ultra-compact design with in-built power allows you to install this repeater everywhere, yet providing excellent network performance to extend the Wi-Fi signal and wireless coverage. -
Page 6: Safety Information
DG-WR3001NE User Manual 1-2 Safety Information In order to keep the safety of users and your properties, please follow the safety instructions mentioned below: 1. This wireless repeater is designed for indoor use only. DO NOT expose this device to direct sun light, rain, or snow. -
Page 7: System Requirements
DG-WR3001NE User Manual 1-3 System Requirements • Wireless network card which is compatible with 802.11N wireless network standard. • Windows 2000, 2003, XP, Vista, 7 , 10 operating system • An available AC power socket (100-240V, 50/60Hz) • At least 200MB of available disk space 1-4 Package Contents Before you start using this wireless repeater, please check if there’s anything missing in... -
Page 8: Get Familiar With Your New Wireless Repeater

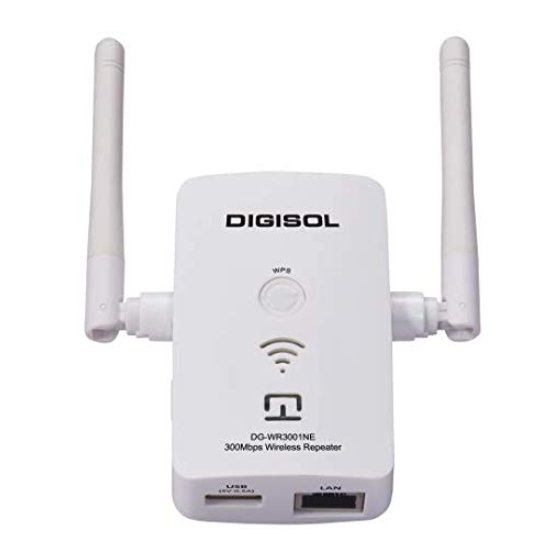

DG-WR3001NE User Manual 1-5 Get familiar with your new Wireless Repeater Interface Description Name Description Power Connector For power supply Reset button Press for 10 seconds to factory reset the configuration WPS button Press for 2 seconds to start WPS connection... -
Page 9: Extender Mode
DG-WR3001NE User Manual 2. Extender mode Extender mode is your Wi-Fi range extender. It can extend your wireless signal and coverage and help you to solve wireless dead zone problem. This section will show you how to quickly install this device by using quick setup and also shows you each detailed setting on the web page of repeater mode. -
Page 10: Step By Step Guide To Connect And Configure Ap/Repeater
AP/Repeater, wirelessly. 1. Click Start > Control Panel > Network and Sharing Center, click Change adapter settings, right-click Wireless Network Connection, select Connect/Disconnect. 2. Select the SSID or Wireless name "DIGISOL" then click Connect. -
Page 11: Extender Mode : Configuration
Method-1 : Just Press the WPS button on the Main router or Root AP and immediately press the WPS button on the DIGISOL extender (DG-WR3001NE) for 2 to 3 seconds, then a wireless connection will be established automatically between both Main Router and Extender... - Page 12 DG-WR3001NE User Manual Method-2 : Type website address, http://192.168.2.1 in Internet explorer or Browser address column, then input the username as "admin" and Password as "1234" to login , you can see the Home Page as shown below. If you select "Clone Router" then Extender's SSID and password will be...
- Page 13 DG-WR3001NE User Manual Input the password of Main Router / Root AP and click "Finish". Note : Device will reboot and then both devices will connect successfully. If connection fails, then please check Main Router's password or if any network signal strength problem due to distance or interference.Try adjusting the...
-
Page 14: Ap Mode
DG-WR3001NE User Manual 2-2 AP Mode : Wireless Access Point configuration 1. Input the website http://192.168.2.1 in Internet explorer address column, then input the username “admin” and password with “1234”.when enter the main page select the “AP” and click “Save Setting”... -
Page 15: Extender Mode Advance Settings
DG-WR3001NE User Manual 2-2-1 :Extender Mode Advance Settings Connect to Web Configuration menu Please open web browser (IE, Firefox, chrome etc.) and input the IP address (given by the DHCP server of the router) in the address bar then press ENTER key. If you don’t know repeater IP address then type ‘http://192.168.2.1 to access the web. -
Page 16: Home
DG-WR3001NE User Manual After login , we can see the Home page as landing page as shown below 2-2-2 Home Page : Now click on this icon on the top right corner of the page to open the advance settings page . -
Page 17: Status
DG-WR3001NE User Manual 2-2-3 Status Page : This page that is displayed shows the current status and some basic settings of the device, such as firmware version, Wireless SSID ,Encryption , MAC address, Associated clients , connection state, etc. Note : The Firmware version / details shown here may vary on User Manual as... -
Page 18: Lan Interface Setup
DG-WR3001NE User Manual 2-2-4 Lan Interface Setup : This page is used to configure the parameters for local area network which connects to the LAN port of your Access Point. Here you may change the setting for IP addresss, subnet mask, DHCP, etc.. - Page 19 DG-WR3001NE User Manual Parameter Description IP address Enter the LAN IP address. Subnet Mask Enter the subnet mask Default Gateway Enter the IP address of Gateway 1) Enable the DHCP server if you are using this device as DHCP server. This page lists the IP address pools available to host on your LAN.
-
Page 20: Wifi Setting
DG-WR3001NE User Manual 2-2-5 WiFi Setting : This page is used to configure the Wireless LAN Parameters which may connect to your access point . Here you may change wireless encryption settings as well as wireless network parameters. -
Page 21: Security Settings
DG-WR3001NE User Manual Parameter Description Disable Wireless LAN Interface Select to Disable the Wireless Function Band Select the Bands from the drop down list Mode Select the Mode ( bydefault AP is selected ) Select the Network type ( By default Infrastruture is... -
Page 22: Mac Control
DG-WR3001NE User Manual Parameter Description Select SSID Select the SSID from the dropdown list Encryption Select the Encryption type Key Length Select 64bit or 128bit Key Format Select Hex / ASCII / Character Password Type the Password or Preshared key for the selected SSID... -
Page 23: Management
DG-WR3001NE User Manual 3. MANAGEMENT : 3-1 Upgrade Firmware This page allows you upgrade the Access Point firmware to new version. Please note, do not power off the device during the upload because it may crash the system. Parameter Description... -
Page 24: Save And Load Settings
DG-WR3001NE User Manual 3-2 Save and Load Settings This page allows you save current settings to a file or reload the settings from the file which was saved previously. Besides, you could reset the current configuration to factory default. Parameter... -
Page 25: Password Setup
DG-WR3001NE User Manual WR3001NE User Manual 3-3 Password Setup : Password Setup : This page is used to set the account to access the web server of Access Point. Empty This page is used to set the account to access the web server of Access Point. Empty This page is used to set the account to access the web server of Access Point. -
Page 26: Appendix
DG-WR3001NE User Manual 4 Appendix 4-1 Hardware Specifications Antenna: External Antenna x 2 (2T2R) LAN Port: 10/100M UTP Port x 1 USB Port x 1 : Charging (Output 5V : 0.5A) Frequency Band: 2.4000~2.4835GHz (Industrial Scientific Medical Band) Power: 5VDC, 1A Switching Power Module (In-Built) Dimensions: 59(W) x 91(H) x 40(D) mm excluding power plug Net Weight: 96.5gms... -
Page 27: Glossary
DG-WR3001NE User Manual 4-2 Glossary IEEE 802.11g standard: 802.11g is the new IEEE standard for high-speed wireless LAN communications that provide speed up to 54 Mbps in the 2.4 GHz band. 802.11g is quickly becoming the next mainstream wireless LAN technology for the home, office and public networks. - Page 28 DG-WR3001NE User Manual central database, or wireless application for mobile workers. BSSID: A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must be configured with the same BSS ID. WEP: WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit shared key algorithm, as described in the IEEE 802 .11 standard.
- Page 29 DG-WR3001NE User Manual WPS: WPS stands for Wi-Fi Protected Setup. It provides a simple way to establish unencrypted or encrypted connections between wireless clients and access point automatically. User can press a software or hardware button to activate WPS function, and WPS-compatible wireless clients and access point will establish connection by themselves.
