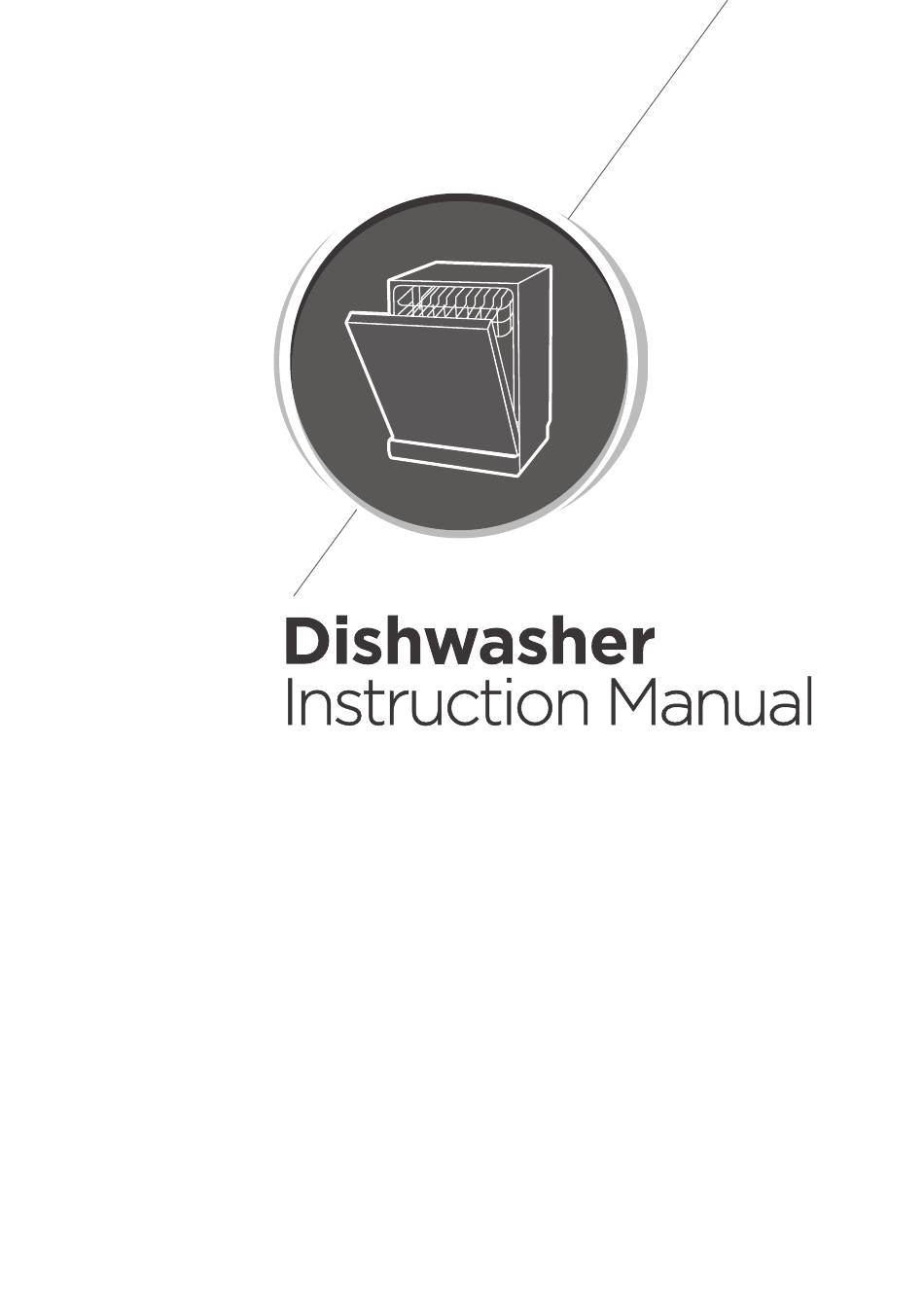

- Page 1 PART Ⅰ: Generic Version Please read this manual carefully before using the dishwasher Keep this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION PRODUCT OVERVIEW USING YOUR DISHWASHER Basket Used Tips MAINTENANCE AND CLEANING External Care Internal Care Caring For The Dishwasher INSTALLATION INSTRUCTION About Power Connection Water Supply And Drain Connection Of Drain Hoses Position The Appliance Free Standing Installation Built-In Installation(for the integrated model) TROUBLESHOOTING TIPS LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1... -
Page 3: Safety Information
SAFETY INFORMATION WARNING When using your dishwasher , follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;... - Page 4 supervision or instruction concerning use of the appliance by a person responsible for their safety.(For IEC60335-1 ) Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 5 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
- Page 6 Do not wash plastic items unless they are marked “ dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
- Page 7 Disposal For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 8: Product Overview
PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Top spray arm Inner pipe Lower spray arm Salt container Filter assembly Dispenser upper spray arm Cup rack Cutlery rack Upper basket Lower basket... -
Page 9: Using Your Dishwasher
USING YOUR DISHWASHER Before using your dishwasher : Inside Outside 1. Loading the basket 2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) Basket Used Tips Adjusting the upper basket Type 1:... - Page 10 Type 2: To raise the rack to the upper position, To lower the rack, push down on the lift rack until both sides are at the same handle and release. height. The rack will secure into place. Folding back the cup shelives To make room for taller items in the dishwasher basket, raise the cup rack upwards.
-
Page 11: Maintenance And Cleaning
MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door.These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. - Page 12 Coarse filter Coarse filter Main filter Main filter Fine filter Open Open Hold the coarse filter and rotate it The fine filter can be pulled off the anticlockwise to unlock the filter. bottom of the filter assembly. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
- Page 13 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the centre still and out the spray arm upward.
-
Page 14: Caring For The Dishwasher
Caring For The Dishwasher Frost precaution please take frost protection measures on the dishwasher in winter. Every fter washing cycles,please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3. -
Page 15: Installation Instruction
INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter... -
Page 16: Water Supply And Drain
Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear. -
Page 17: Connection Of Drain Hoses
Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it. -
Page 18: Position The Appliance
Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. -
Page 19: Built-In Installation(For The Integrated Model)
Underneath existing work top (when fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a). - Page 20 2. If dishwasher is in stalled at the corner of the cabinet, thereshould be some space when the door is opened. Dishwasher Cabinet Door of dishwasher Minimum space of 50mm NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.
- Page 21 model Full-integrated Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure B). 1.Take away the four short screws 2.Pin up the four long screws Step 3.
- Page 22 Step 4. Dishwasher installation steps Please refer to the specified installation steps in the installation Please refer to the specified installation steps in the installation drawings. drawings. 1. Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.
- Page 23 Step 5. Levelling the dishwasher Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.
-
Page 24: Troubleshooting Tips
TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible causes Solution Dishwasher won't start Shut the door completely make sure it is latched Power supply or power Check and connect the power supply Dishwasher doesn't line is not connected... - Page 25 Problem Possible causes Solution Dishwasher won't start Shut the door completely make sure it is latched Power supply or power Check and connect the power supply Dishwasher doesn't line is not connected Refer to Delay Start section in this manual Delay Start option has start to reset...
- Page 26 Problem Possible causes Solution Excessive suds caused Make sure to use only the proper by using the improper dishwasher detergent Dishwasher leaks detergent Dishwasher is not level Level the dishwasher Black or gray marks Aluminum utensils Rearrange the dishes on dishes have rubbed against Make sure the inlet water dishes...
-
Page 27: Loading The Baskets According To As/Nzs 2007.1
LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Item Number Cups Saucers Glasses Number Item Dessert dishes Dinner plates Soup plates... - Page 28 3.Cutlery basket: Item Number Soup spoons Forks Knives 4 4 4 Teaspoons Dessert spoons Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 10 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5g/22.5g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)
- Page 29 PART Ⅱ: Special Version MDW45FSS Please read this manual carefully before using the dishwasher and Keep this manual for future reference.
- Page 30 CONTENTS USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION...
- Page 31 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running...
-
Page 32: Using Your Dishwasher
USING YOUR DISHWASHER USING YOUR DISHWASHER Control Panel Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this Delay button delays the start of washing by one hour. - Page 33 Display To show the reminding time, delay time, error code etc. Rinse Aid If the “ ” indicator is lit, it means the dishwasher is low Warning on dishwasher rinse aid and requires a refill. indicator Water Faucet If the “ ”...
-
Page 34: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles... - Page 35 Recommendations for loading the dishwasher All utensils are placed in the way that the spray arms can rotate freely during washing. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other.
- Page 36 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 37: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 38: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 39: Filling The Detergent Dispenser
Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle . -
Page 40: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Running Energy... -
Page 41: Starting A Cycle Wash
Description Energy Water Running Detergent Rinse Program Of Cycle (Kwh) Time(min) Pre/Main Wash(45℃) Rinse(50℃) Rapid Rinse(55℃) Pre-wash 0.02 Soak NOTE: *AS/NZS 2007.1: This program is the test cycle. The information for comparability test in accordance with *AS/NZS 2007.1. Starting A Cycle Wash 1. -
Page 42: Forget To Add A Dish
1. Press the Start/Pause button to pause the washing. 2. Press Program button for more than 3 seconds - the program will cancel. 3. Press the Program button to select the desired program. 4. Press the Start/Pause button, after 10 seconds, the dishwasher will start. 3 sec Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. -
Page 43: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. Not reaching required Malfunction of heating element. -
Page 44: Technical Information
TECHNICAL INFORMATION Height (H) 845mm Width (W) 448mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) - Page 45 Product fiche Manufacturer MIDEA Type / Description MDW45FSS Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Normal Energy consumption of the standard cleaning cycle 0.506 kWh Water consumption of the standard cleaning cycle 11 liter Program duration of the standard cleaning cycle...
