Compact Faucet Mount Filter
Installation and Operation
Instructions
Model FM-15A, FM-25

Operating Specifications

Pressure Range:
30–100 psi
Temperature Range: 40–100°F
Rated Service Flow: 0.5 gpm at 60 psi
Filter Capacity:
200 gallons / 2months*
*Filter cartridge life varies depending on usage and water conditions.

Parts Included:

• faucet mount unit
• carbon block filter cartridge

Tools/Materials Required

none

Precautions

WARNING:
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
CAUTION:
This filter must be protected from freezing, which can cause cracking
of the filter and water leakage.
NOTE:
• For cold water use only.
• Make certain that installation of this system complies with all state and local
laws and regulations.
• The contaminants or other substances removed or reduced by this water
filter are not necessarily in your water.
• The filter cartridge has a limited service life. Changes in taste, odor, color, and
flow of the water being filtered indicate that the cartridge should be replaced.
• After prolonged periods of non-use (such as during a vacation), it is
recommended that the system be flushed thoroughly. Let water run for 5
minutes before using.
The FM-15A and FM-25 are Tested and Certified by NSF International to NSF/ANSI
Std. 42 for the aesthetic reduction of Chlorine Taste and Odor, Nominal Particulate
Class I. Std. 53–Lead, Turbidity Lindane, Atrazine reduction.
(2.1–6.9 bar)
(4.4–37.7°C)
(1.9 Lpm at 4.1 bar)
(757 liters)
• faucet adapters
Filtro Para El Agua En Su Grifo
Instrucciónes para la Instalacción y el
Funcionamiento
Modelo FM-15A, FM-25
Especificaciones:
Gama de Presión:
30–100 psi
Gama de Temperatura:
40–100°F
Flujo de agua
durante Servicio:
0.5 gpm a 60 psi
Capacidad del Filtro:
200 galones / 2 meses*
*Duración del cartucho filtrante varía de acuerdo con el uso y la calidad de su agua.
Piezas Incluidas
• sistema filtrante para
instalar en el grifo
• adaptadores para el grifo
Herramienta/Materiales Necesarias
ninguna
Precauciones
ADVERTENCIA:
No use el filtro con agua contaminada microbiologicamente
o si es de una calidad desconocida sin desinfectarla adecuadamente antes o
despúes del filtro.
PRECAUCIÓN:
Este filtro debe de protegerse contra la congelación, que puede
causar grietas y derrames de agua.
NOTA:
• Para uso con agua fria solamente.
• Asegúrese que la instalación vaya conforme con todas las reglas locales y
estatales.
• Los contaminantes u otras substancias que se quitan o que son reducidas por
este filtro de agua, no se encuentran en su agua
necesariamente.
• El cartucho filtrante tiene una duración limitada. Cambios en el sabor, olor,
color y flujo indican que es tiempo de cambiarlo.
• Cuando no se usa el filtro por períodos extendidos (p. ej. Durante vacaciones)
es recomendado que deje correr el agua por 5 minutos antes de usarlo.
El FM-15A y el FM-25 fueron analizados y certificados por el NSF Internacional a
NSF/ANSI Norma 42 - Reducción Estético de Cloro Sabor y Olor, y Nominal Partícula
Clase I. Norma 53 - Reducción de Plomo, Turbiedad, Lindane y Atrazin.
(2,1-6,9 bar)
(4,4–37,7°C)
(1,9 Lpm a 4,1 bar)
(757 litros)
• cartucho filtrante de carbón
en bloque
04/12 01020967 Rev C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM-25 and is the answer not in the manual?

Questions and answers

Heidi
May 8, 2025

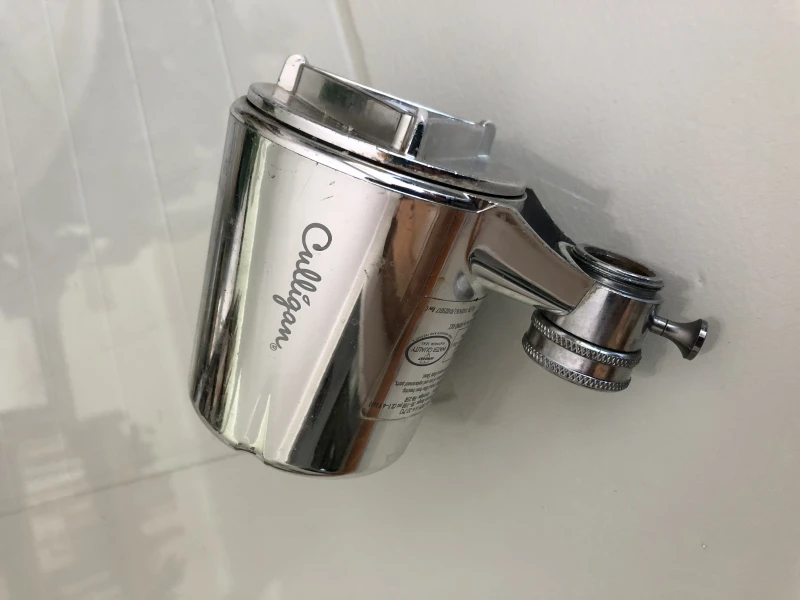

I can’t open the cartridge to replace the filter. It’s stuck, should I try using a plyers

User image 681cc77b306d7
1 comments:
Mr. Anderson
May 19, 2025

To open a stuck Culligan FM-25 cartridge:

1. Try unscrewing the cap from underneath the housing by hand.
2. If it's stuck, avoid using tools that may crack the plastic.
3. Do not apply high pressure or force.
4. Hold the bottom part firmly and twist the cap gently.
5. If it still doesn’t move, wait and try again later, as over-tightening or buildup may make it difficult to remove.

The housing is plastic and may break under force, so use only hand pressure.

This answer is automatically generated
