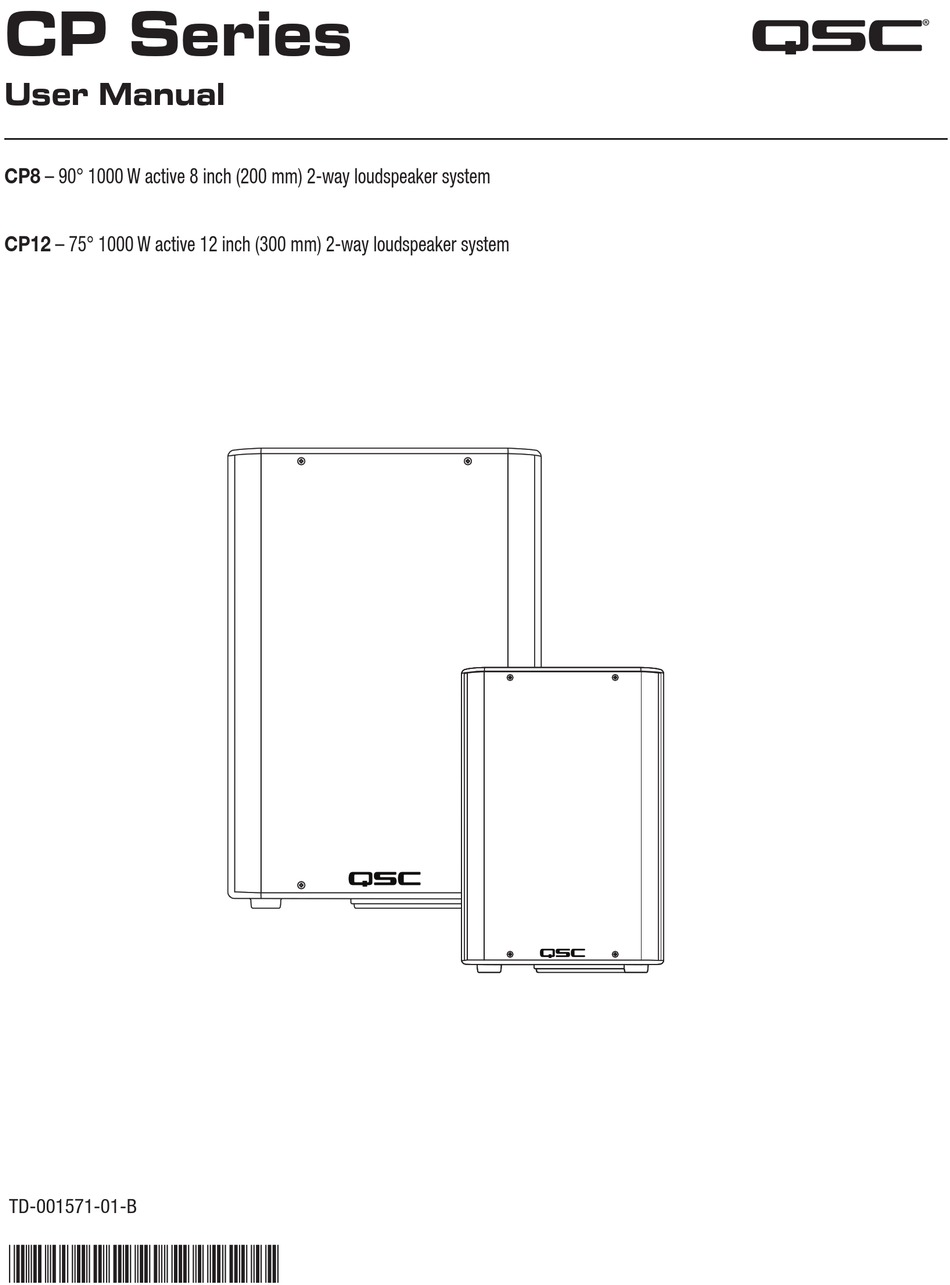

CP Series
User Manual
CP8 – 90° 1000 W active 8 inch (200 mm) 2-way loudspeaker system
CP12 – 75° 1000 W active 12 inch (300 mm) 2-way loudspeaker system
TD-001571-01-B
*TD-001571-01*
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP Series and is the answer not in the manual?

Questions and answers

Related Manuals for QSC CP Series

Summary of Contents for QSC CP Series

  • Page 1 CP Series ® User Manual CP8 – 90° 1000 W active 8 inch (200 mm) 2-way loudspeaker system CP12 – 75° 1000 W active 12 inch (300 mm) 2-way loudspeaker system TD-001571-01-B *TD-001571-01*...

  • Page 2: Explanation Of Symbols

    EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty.
  • Page 3 QSC authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs.
  • Page 4 FEATURES Plastic enclosure Steel grille Plastic handle Power module M8 yoke-attachment points Vertical pole socket ® Slip-resistant feet Angled back for use as a floor monitor Plastic feet — Figure 1 — CP12 Plastic enclosure Steel grille Plastic handle Power module M8 yoke-attachment points Vertical pole socket Slip-resistant feet...

  • Page 5: Free Standing

    The CP Series is primarily designed for portable audio reinforcement. This includes a variety of uses in reinforcement for entertainers and presenters. Both models are designed to perform well on their own in full-range audio.

  • Page 6: Power Switch

    Suspension The CP Series loudspeakers are not designed to be suspended with eyebolts. However, the optional Yoke bracket can be mounted to a suspended fixture. OPERATION Cooling This is a powered loudspeaker, containing an internal power amplifier that produces heat. Allow a minimum of 6 inches (152 mm) clearance at cabinet back for convection cooling.
  • Page 7 System Power Sequencing Proper power turn on/turn off sequencing can help to prevent unexpected sounds emanation from the system (pops, clicks, thumps). Always follow the rule that loudspeakers are “last on, first off”. Power On Sequence: NOTE: Steps 3 and 4 below are interchangeable depending on the order in which the top box and the subwoofer are wired. Bring the output level control of the mixer, or other audio sources feeding your loudspeakers, to its minimum position.
  • Page 8 Inputs The CP Series amplifier has three separate inputs; two combination XLR / 1/4 inch TRS (Inputs A and B) and one 1/8 inch (3.5 mm) TRS (Input C). Refer to Figure 9 Input A SIG LED – When illuminated (green), it indicates a signal is present.
  • Page 9 CP SERIES CONTOUR SELECTIONS The CP Series loudspeakers offer six different voicing contours to use with specific applications. Below is a list of these contours and a description of each. The contour settings affect both inputs (exceptions are documented in the text and the table below).
  • Page 10 • Dance – A voicing with low frequency enhancement and mid/high clarity more suitable for program material playback like pop or electronic music. (When MIC BOOST is selected, input B contour changes to “Speech” while input A remains as “Dance.”) •...

  • Page 11: Hookup Diagrams

    HOOKUP DIAGRAMS All-In-One PA System with Subwoofer MIC BOOST PUSH PUSH — Figure 15 — Typical Stereo System TouchMix 8 or 16 CP12 Main Left CP12 Main Right Right / Left Power Phones Cue / Monitor Aux 3/4 ® Right Left CP8 Floor Monitor CP8 Floor Monitor...
  • Page 12 DIMENSIONS CP8 Loudspeaker 273 mm 10.7 inch 273 mm 256 mm 10.7 inch 10.1 inch — Figure 17 — TD-001571-01-B...
  • Page 13 CP12 Loudspeaker 350 mm 13.8 inch 323 mm 350 mm 12.7 inch 13.8 inch — Figure 18 — TD-001571-01-B...

  • Page 14: Specifications

    SPECIFICATIONS CP12 Configuration: Two-way active loudspeaker Two-way active loudspeaker LF Transducer: 8 inch (203 mm) cone 12 inch (305 mm), cone HF Transducer: 1.4 inch (35.6 mm) compression driver 1.4 inch (35.6 mm) compression driver Frequency Response (-6 dB): 56 - 20 kHz 49 - 20 kHz Frequency Range (-10 dB): 53 - 20 kHz...
  • Page 15 E-mail: info@qsc.com © 2018—2019 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners.
