Fluke PRO3000 User Manual page 9

The polarity/continuity LED is just above the toner's slide switch. The
function of this LED depends on the toner's mode:
•
In continuity mode, it is a single-color LED (red), which indicates
whether or not there is continuity.
•
In polarity mode, it is a dual-color LED (red and green), which
indicates the polarity of a DC- powered pair of wires (e.g., a
telephone line).
The toner can drive up to 10 miles (16 km) of 24 AWG twisted pair.
To preserve the 9 V battery, turn the toner off and put the
slide switch in the TONE position when the toner is not in
use.
Note

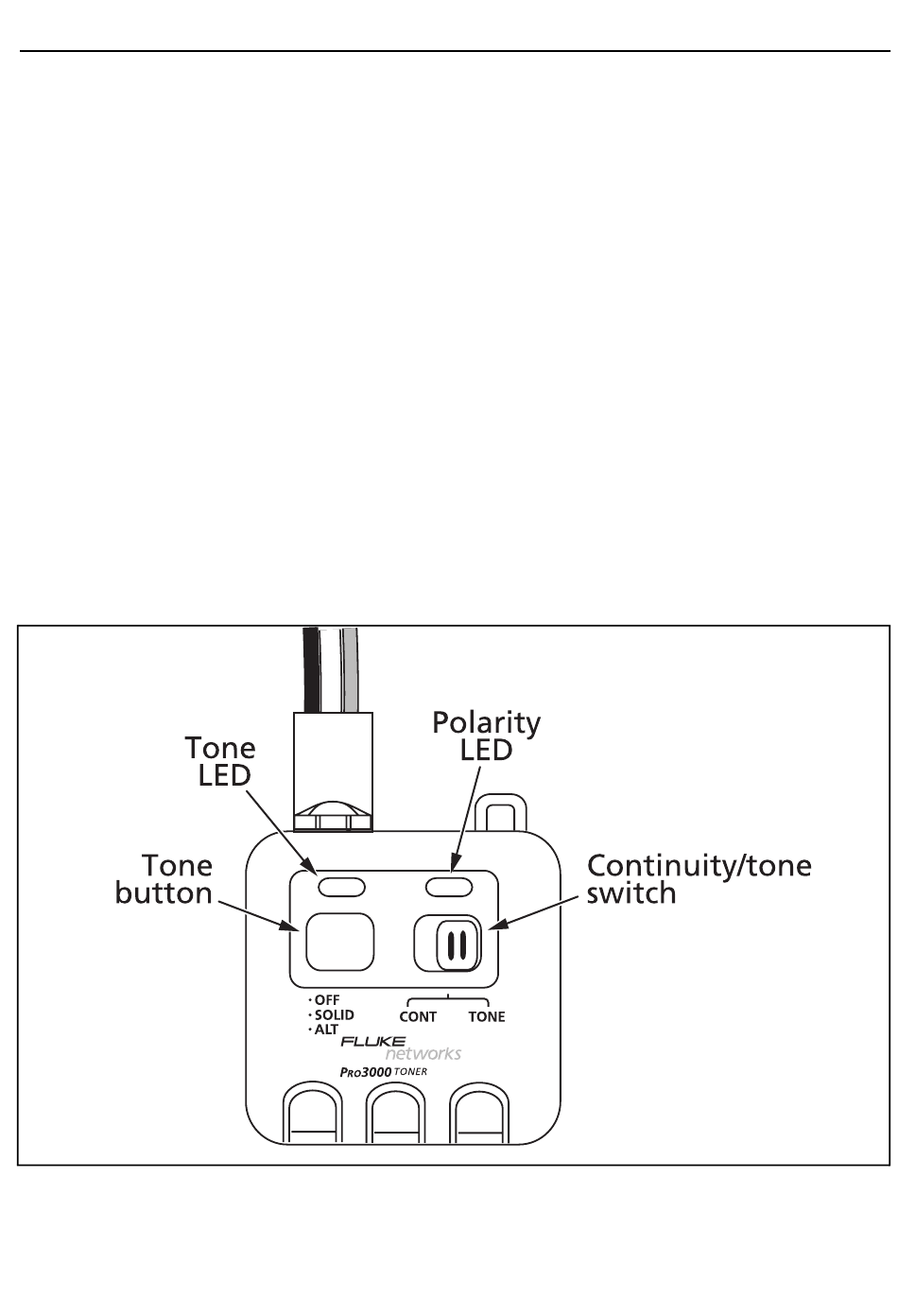

Figure 2. P
RO
3000 Toner
The P 3000 Toner
RO
bff02.eps
5
